LEGRAND CP Electronics MWS6SM-PRM Product Manual

MWS6SM-PRM

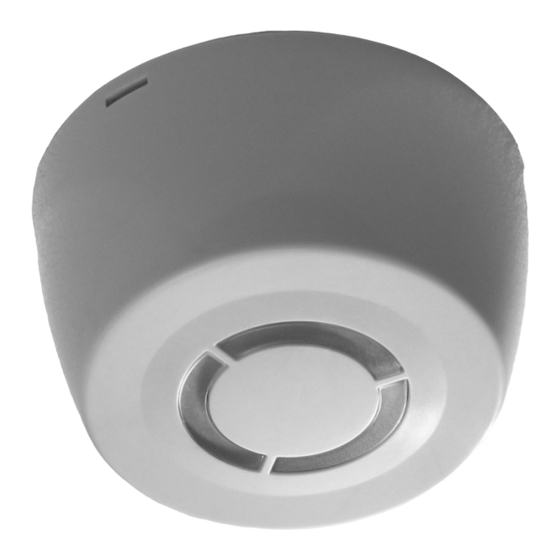

Ceiling microwave presence/absence detector

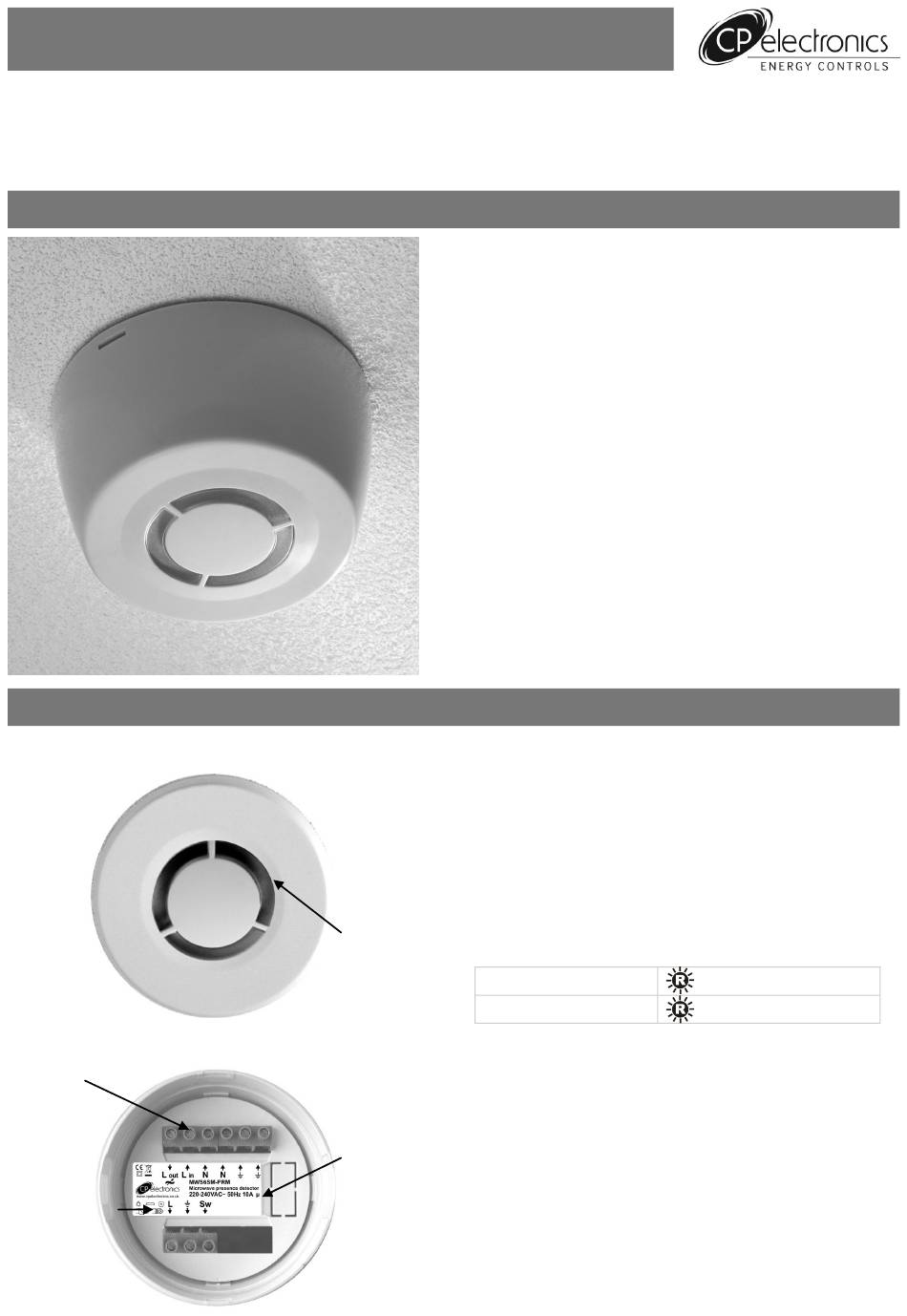

Front features
Back features
Power Input
& Switched
Output
connections
Power Input
& Switched
Output Connector
Product Guide
The MWS6SM-PRM microwave (passive infrared)
presence detector provides automatic control of lighting
loads with optional manual control. The MWS6SM-PRM
detects movement using a highly sensitive microwave
detector. This works by emitting low power microwave
signals and measuring the reflections as the signals
bounce off moving objects.
The output channel comprises a mains voltage relay
capable of simple on/off switching.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and off when the room is
empty. Optional settings allow lights to be turned off in
response to ambient daylight.
All functionality is fully programmable using an IR handset.
Microwave Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
which covers...
The LED flashes Red to indicate the following:
Microwave Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Power Input & Switched Output Connector
Used to connect mains power to the unit and to connect a
switched load.
Switch Input Connector
Two input terminals can be used to manually override the
lights on or off.
Switch Input
Connector
Overview
Features
when movement is detected
