BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation . This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
consumer.
·
Before installation carefully inspect the new fixture for any
signs of damage.
WARNING: Risk of injury or product damage.
Tempered glass cannot be cut.
WARNING:
Don't use acidic or alkalic cleaners or
alcohol to clean the wooden surface. Use a dampened
cloth to clean.

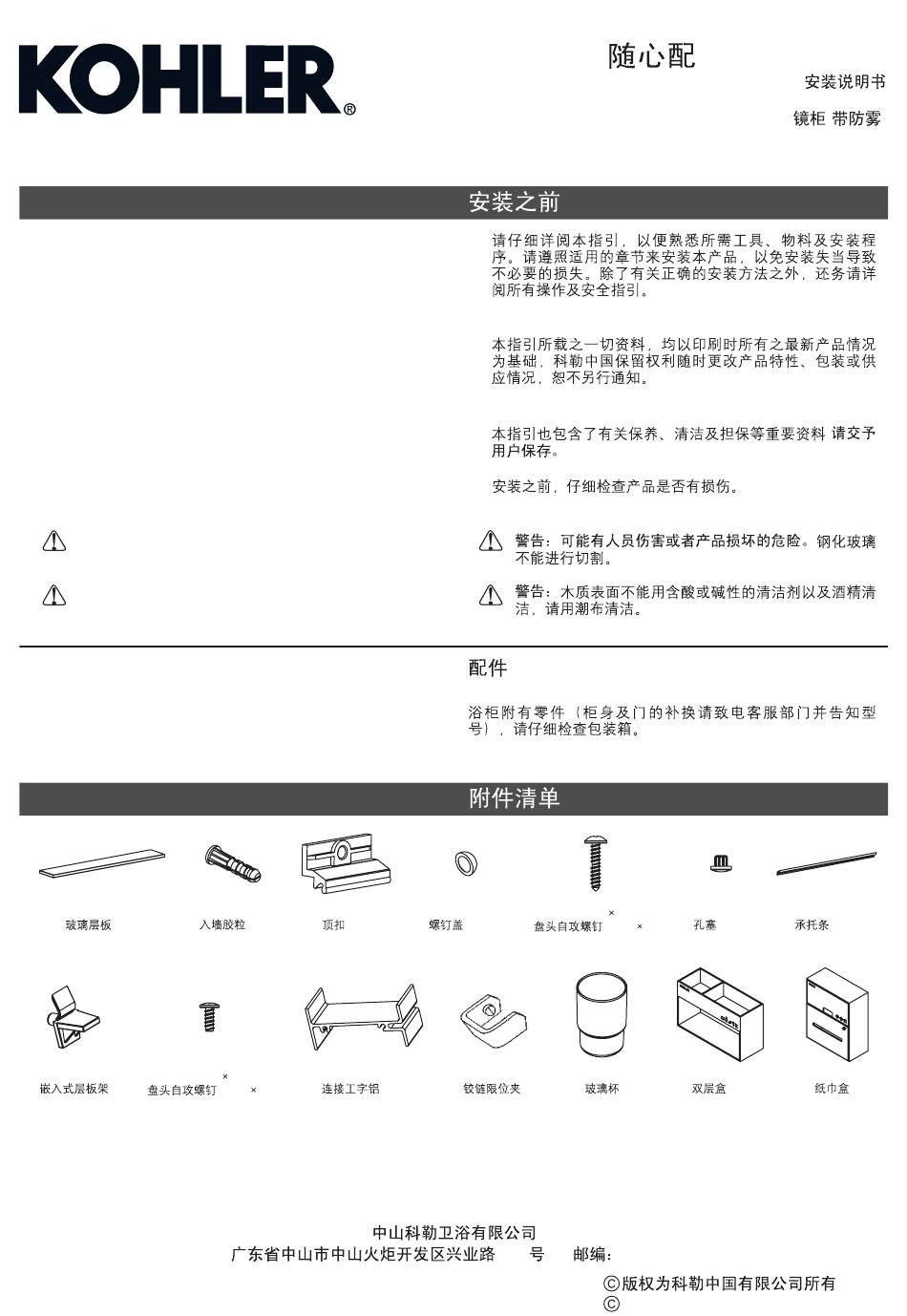

PARTS
Parts supplied with your cabinet. (For cabinet body and door
replacement, call customer service with model number.) Be
sure to check the cardboard supports in the carton, glass
parts are packed in them.
ACCESSORIES LIST
ACCESSORIES LIST
Glass Shelves
X3
Snap-in Pins
Screws ST4.2 12
X12
X8
1179057-T01-A
please leave instructions for the
Wall Anchors
Top Clips
X5
X2
Connector Block
ST4.2 12
X2
M
·
·
·
·
Caps of Screw
Screws ST3.5 35
X10
X5
Hinge Clips
Glass
X2
X1
13-1
-1-
M MODULAR
INSTALLATION INSTRUCTIONS
MIRRORED CABINET W/DEFOGGER
Hole Plugs
ST3.5 35
X40
2 Level Box
X1
528437
Copyright Kohler China Ltd., 2011
(
)
K-15512T
-
Mounting Bar
X1
Tissue Box
X1
, 2011
Advertisement
Related Manuals for Kohler M MODULAR
Summary of Contents for Kohler M MODULAR
- Page 1 · · All information in these instructions is based upon the latest product information available at the time of publication. Kohler China. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. ·...
- Page 2 ROUGHING-IN UNIT : mm PRE-DRILLED HOLE PRE-DRILLED HOLE Pre-Drilled Hole for Recessed Cabinet Pre-Drilled Hole for Side Kits Pre-Drilled Hole for Cabinet-to-Cabinet 1179057-T01-A...
-
Page 3: Installation
INSTALLATION NOTE The cabinet has two ways of installation: · · Recessing mounting. · · Surface mounting. Refer to the following instruction for mirror installation. RECESSING THE MIRRORED CABINET INTO THE WALL The Vertical installation changes the width of the roughout. Please refer to the picture below. 472mm for Width 472mm Screws ST3.5 35... - Page 4 Install screws through holes in mirrored cabinet as shown in Fig.1, 2 Note: DO NOT OVER- TIGHTEN! Use s crews ST3.5 35 ST3.5 35 Top View Stud and wall surface Mirrored cabinet flange fits flush against wall Install dome caps over screws Fig.
- Page 5 Sit the mirrored cabinet on the mounting bar, then lower and tighten the Top clip for screws into place, as shown in Fig.4. surface mount 2 per cabinet 2 Top clips Top of cabinet frame member Top clips slide into this screw channel from center opening.
- Page 6 Door adjustments Remove the hinge cover or the blumotion before adjustion, see Fig 6A. Adjust the hinge of door in 3 directions to make sure the door level as shown in Fig.6B. Assemble Assemble Removal Fig. 6A Assemble Removal Height Adjustment Side Adjustment Depth Adjustment Fig.
- Page 7 Put the tissue box, 2 level box and the glass into the cabinet as shown in Fig.8. Fig. 8 STEP Push/twist the pins into place & Fill the remaining holes with the plugs & Push one side of the shelf into the left or right clips. Snap the shelf down into the opposite side.
-
Page 8: User Maintenance
Try to open the door and windows of the bathroom and maintain good ventilation. Kohler mirrored cabinet are dealt with strict procedures for damp-proof, whose good damp-proof function ensures good performance even in bathroom of huge humidity. Yet do not splash and pour water directly on the mirrored cabinet.
