CORBERO CCGLH1850N User Manual

Refrigerator combi two doors with technology no frost freezer - refrigerator
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Frigorífico Combi Dos Puertas
Para asegurar un uso correcto de este aparato y para su seguridad, por favor,
lea este manual completamente antes de empezar a utilizar el dispositivo.
con Tecnología NO FROST
Congelador - Frigorífico
Manual de Instrucciones
CCGLH1850W
CCGLH1850N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCGLH1850N and is the answer not in the manual?

Questions and answers

Related Manuals for CORBERO CCGLH1850N

Summary of Contents for CORBERO CCGLH1850N

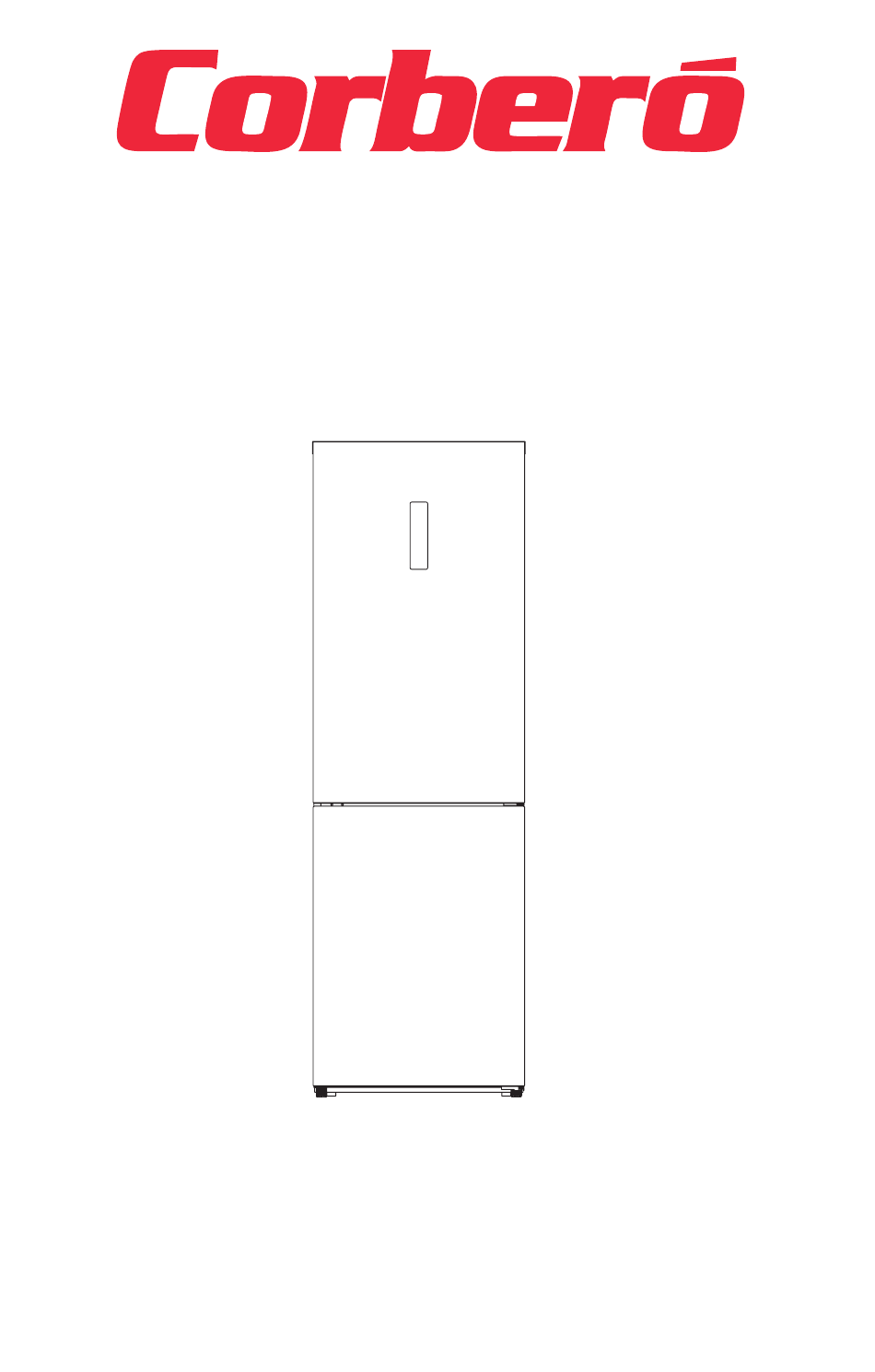

  • Page 1 Frigorífico Combi Dos Puertas con Tecnología NO FROST Congelador - Frigorífico Manual de Instrucciones CCGLH1850W CCGLH1850N Para asegurar un uso correcto de este aparato y para su seguridad, por favor, lea este manual completamente antes de empezar a utilizar el dispositivo.

  • Page 3: Información De Seguridad

    Información de seguridad INFORMACIÓ N DE SEGURIDAD En aras de su seguridad y para garantizar el uso correcto, antes de la instalación y el primer de uso de este aparato, lea atentamente este manual de usuario, incluidos los consejos y advertencias. Para evitar errores innecesarios y accidentes, es importante asegurarse de que todas las personas que utilicen el aparato están completamente...
  • Page 4 Información de seguridad ●Los niños deben supervisados para asegurarse de que no jueguen con el aparato. ● La limpieza y el mantenimiento del usuario no deberán ser realizados por niños a menos de que tengan edades de 8 años en adelante y sean supervisados.
  • Page 5 Información de seguridad menos que sean autorizados para tal fin por el fabricante. ● No guarde latas de aerosol con un propulsor inflamable en este aparato, podrí an explotar ● El isobutano (R600a) que contiene el frigorí fico dentro del circuito del aparato, es un gas natural alto nivel compatibilidad...

  • Page 6: Uso Diario

    Información de seguridad dañado por la parte trasera del aparato. Un enchufe aplastado o dañado puede recalentarse y provocar un incendio. ● Asegúrese de que se puede llegar a la clavija de alimentación del aparato. ● No tire del cable de red. ●...

  • Page 7: Cuidado Y Limpieza

    Información de seguridad ● Almacene alimentos pre envasados congelados siguiendo las instrucciones del fabricante de la comida congelada. ● Las recomendaciones de almacenamiento del fabricante deben ser seguidas estrictamente. Consulte las instrucciones pertinentes. ● No coloque bebidas gaseosas en el congelador porque crea presión en el envase, lo que puede ocasionar que explote y podrí...

  • Page 8: Instalación

    Información de seguridad INSTALACIÓ N ¡Importante! Para la conexión eléctrica, siga cuidadosamente las instrucciones dadas en los párrafos especí ficos. ● Desempaque el aparato y compruebe si hay daños en el mismo. No conecte el aparato si está dañado. Informe de los posibles daños y perjuicios inmediatamente al lugar donde lo compró.

  • Page 9: Ahorro De Energia

    Información de seguridad REPARACIONES ● Cualquier trabajo de tipo eléctrico necesario para efectuar la reparación del aparato debe ser realizado por una persona competente o electricista cualificado. ● Este producto debe ser reparado por un centro de servicio autorizado, y únicamente se deben usar las piezas de repuesto.
  • Page 10 Información de seguridad Protección ambiental Este refrigerador no contiene gases que puedan dañar la capa de ozono, ni en su circuito refrigerante ni en los materiales de aislamiento. La aplicación no debe ser desechada junto con los residuos domésticos. La espuma de aislamiento contiene gases inflamables;...
  • Page 11 Información de seguridad de desechos de este producto. Para obtener más información sobre el reciclaje de este producto, contáctese con el municipio local, su servicio de eliminación de residuos domésticos local o el local donde compró el producto. Materiales de embalaje Los materiales con el sí...
  • Page 24 Proceso correcto de desecho de este producto Corbero CCGLH1850W / CCGLH1850N CE CB GS EMC/ERP 237kWh / año 222L No-Frost 1200min 15kg/24h SN,N,ST,T 43dB 600x685x1852 mm 220-240V 1.3A...
  • Page 25 Refrigerator Combi Two Doors with Technology NO FROST Freezer - Refrigerator User Manual CCGLH1850W CCGLH1850N To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

  • Page 26: Children And Vulnerable People Safety

    Safety information In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
  • Page 27 Safety information vision or instruction concerning use of the appliance in a safe way and understand the ●Children should be supervised to ensure ●Cleaning and user maintenance shall not be made by children unless they are aged from 8 ●Keep all packaging well away from children. ●If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can)

  • Page 28: General Safety

    Safety information General safety WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING! Do not damage the refrigerant circuit.
  • Page 29 Safety information appliance, a natural gas with a high level of environmental compatibility, which ●During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged. - avoid open flames and sources of ignition - thoroughly ventilate the room in which the appliance is situat ●It is dangerous to alter the specifications or...
  • Page 30 Safety information WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel. WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp”...
  • Page 31 Safety information ● ●Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power ●Make sure that you can come to the mains ● ●If the power plug socket is loose, do not insert the power plug.

  • Page 32: Care And Cleaning

    Safety information Daily use ●Do not put hot on the plastic parts in the ●Do not place food products directly against the rear wall. ●Frozen food must not be re-frozen once it has been thawed out ●Store pre-packed frozen food in accordance with the frozen food manufactures instructions ●Appliances manufactures storage...

  • Page 33: Safety Information

    Safety information ●Do not clean the appliance with metal ●Do not use sharp objects to remove frost from the appliance. Use a plastic scraper ●Regularly examine the drain in the refrigerator for defrosted water. If necessary , clean the drain. If the drain is blocked, water will collect in the bottom of the appliance 1) If there is a freezer compartment.
  • Page 34 Safety information Installation Important! For electrical connection carefully follow the instructions given in specific ●Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that ●It is advisable to wait at least four hours before connecting the appliance to allow the ●Adequate air circulation should be around...

  • Page 35: Energy Saving

    Safety information after the installation of the appliance. ●Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent ●This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
  • Page 36 Safety information ●Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption. Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish.

  • Page 37: Disposal Of The Appliance

    Safety information prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
  • Page 38 Overview Fridge Balconies Fridge Shelves Crisper Freezer Drawers Note: Above picture is for reference only. Real appliance probably is different.
  • Page 39 Installation Space Requirement Select a location without direct exposure to sunlight; Select a location with enough space for the refrigerator doors to open easily; Select a location with level (or nearly level) flooring; Allow sufficient space to install the refrigerator on a flat surface; Allow clearance to the right, left, back and top when installing.
  • Page 40 Installation Door Reversibility Before reversing the door, please be prepared below tools and material: straight screwdriver, cross screwdriver, spanner and the components included in the poly bag: Decorative Cover of Right Door x1 Left Door Hinge Cover x 1 1. Please upwarp and take off plastic cover by straight screwdriver after opening the door. Please be careful of the wire inside.
  • Page 41 Installation 4. Laying down the refrigerator, take out the adjusting feet as below, then take off the lower hinge by cross screwdriver. 5. Adjusting the hinge core position of the lower hinge and upper hinge to opposite position 6. Install the lower hinge under to the refrigerator like below, screwing in the adjusting feet, make sure the position in horizon.
  • Page 42 Installation 8. Using the Decorative Cover of Right Door from poly bag to cover the insert and take out the other side one accordingly.In the meanwhile change the wire to another side. 9. Install the upper door, then fix the upper door hinge onto the cabinet. 10.
  • Page 43 Installation 12.Change the Decorative Cover from one to another side. Follow the instruction to take out of the decorative cover, be careful not to ruin the cover. 13. Lastly, using the screw to fix the top cover.
  • Page 44 Daily Use Daily Use Using the Control Panel 1.1 KEY OPERATION A.Temperature Control of Fridge Compartment B.Temperature Control of Freezer Compartment C.Mode/ Locking / Unlocking 1.2 LED DISPLAY 1.Temperature of Fridge Compartment 2.Temperature of Freezer Compartment 3.ECO Mode 4.Holiday Mode 5.Super Mode 6.Locking / Unlocking 2.0 OPERATING CONDITION...
  • Page 45 Daily Use Daily Use 2.1.2 The panel will be lit up by any key operation whereas the light would be out 2 minutes after the last operation. 2.1.3 Display during normal operation Temperature Display of the Fridge Compartment: Indicating the temperature of the current setting.
  • Page 46 Daily Use Daily Use 4.0 ECO mode Press mode to choose ECO mode, ECO icon keeps bright after 5 sec flashing. 5°in fridge compartment and -18°in freezer compartment under eco mode, “Freezer”&“Fridge“ button in vain while eco icon will flash three times in alarm. Exit eco mode Press mode again to exit eco mode after 5 sec, entering the selected mode.
  • Page 47 Daily Use Daily Use First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish.
  • Page 48 Daily Use Daily Use Hints for storage of frozen food To obtain the best performance from this appliance, you should: make sure that the commercially frozen foodstuffs were adequately stored by the retailer; be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;...
  • Page 49 Daily Use Daily Use Troubleshooting Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Possible cause Problem Solution...
  • Page 50 If in the future you need to dispose of this product DO NOT put it with household waste, send it to the WEEE collection points if they exist. Corbero CCGLH1850W / CCGLH1850N CE CB GS EMC/ERP 237kWh / year 222L...
  • Page 51 PN:261800401383...
  • Page 52 CKCBR-B01-A...
