INSTALLATION NOTES:
1. Caution and Safety Instructions
•
Qualified personnel must install and/or service
product in a manner consistent with its intended
use and in compliance with the National
Electrical Code, Canadian Electrical Code, and/
or all local and provincial codes.
•
Follow all product label information and
installation instructions.
•
Turn off power at fuse or circuit breaker before
installation or servicing.
•
The use of damaged components may cause an
unsafe condition and void product warranty.
•
Do not block light emanating from product in whole
or part.
•
Never operate the luminaire with missing or
damaged lens. Clean lens on a regular basis.
2. Product Information
•
Suitable for ground-mounted recessed only.
•
Suitable for wet locations.
ARCHITECTURAL & LANDSCAPE LIGHTING

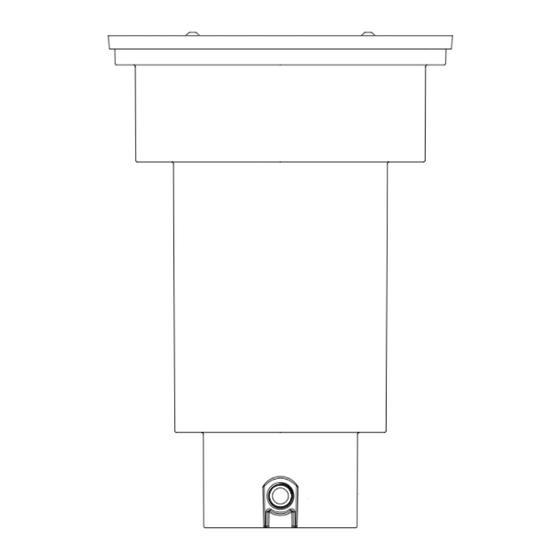

nBeckon-
10.5" (267 mm)
½"-14 NPT
Knockout (x4)
|
holmlighting.com
26
•
Entire luminaire may become extremely hot. Do
not touch hot lens or luminaire body. Do not touch
the light source at any time.
•
Keep all O-rings and sealing surfaces clean during
installation and servicing; failure to do this may
lead to premature failure of the product.
•
For installation in pedestrian and pedal cycle
restricted areas.
•
Looping connection limited to 24W.
•
Basic insulation is provided between dimming input
and mains input.
•
Caution, risk of electric shock.
3YJ8
Tools Needed:
Installation:
Various lengths of 2" x 4"
(50 mm x 100 mm) lumber, ⅛" (3.2 mm)
Allen wrench
Servicing: ⁹⁄64" (3.5 mm) Allen wrench, #1 Phillips
screwdriver, #2 Phillips screwdriver
IP
67
