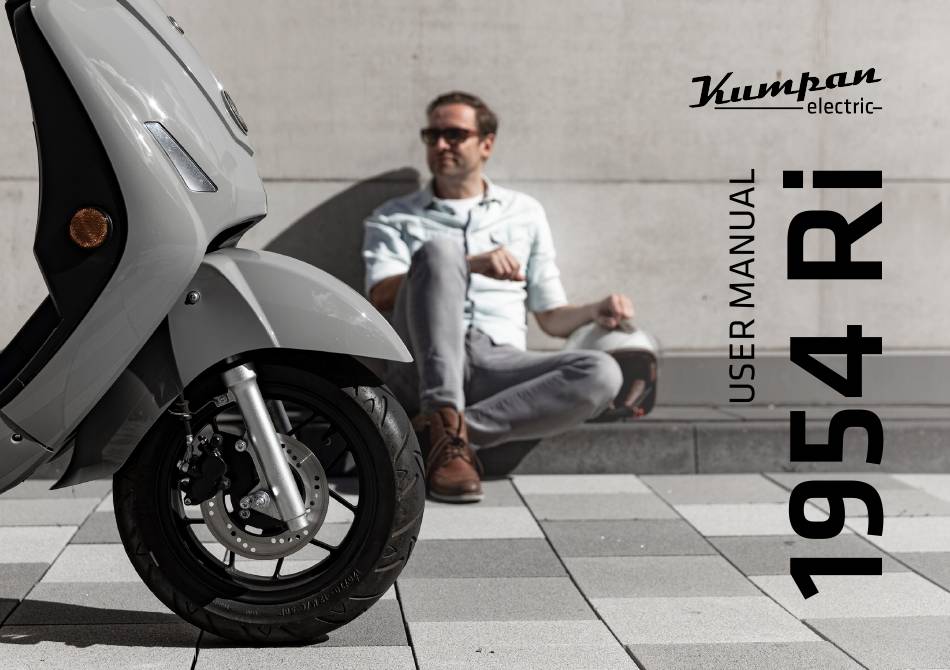

Kumpan electric 1954 Ri 2019 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1954 Ri 2019 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kumpan electric 1954 Ri 2019 Series

Summary of Contents for Kumpan electric 1954 Ri 2019 Series

  • Page 2 a brand by e-bility GmbH Dieselstraße 28 53424 Remagen www.kumpan-electric.com 1st Edition, Remagen, Feb. 2019 This user guide covers the following model variants: • 1954 Ri 10“ (25/45 km/h) • 1954 Ri 12“ (25/45 km/h) • 1954 Ri S (100 km/h)

  • Page 3: Table Of Contents

    Content Safety regulations Rear-view mirror P. 29 Battery charger P. 30 Important Information P. 6 Kraftpaket 2.0 (Battery pack) P. 31 Basic safety regulations P. 8 - Insertion and removal of batteries P. 33 - On-board charging P. 36 The Kumpan 1954 Ri - External charging P.
  • Page 4 Maintenance Light P. 58 - Main head light P. 58 - Parking light P. 59 - Rear lights and direction indicators P. 60 Kraftpacket2.0 (Battery pack) P. 61 Brakes P. 62 Brake fluid level P. 63 Antilocking System (ABS) P. 64 Suspension P.
  • Page 5 Preface Congratulations for your Kumpan 1954 Ri! We wish you lots of fun and joy with your new companion. This manual serves primarily as a guide and reference book enabling your safe and gentle handle of your Kumpan. It contains information on the various versions und equipment variants of the Kumpan 1954 Ri series.

  • Page 7: Safety Regulations

    Safety regulations Important information: When using this vehicle, the following identification documents and papers must be carried: - Id card - Driver‘s license / moped test certificate - Insurance certificate (1954 Ri 25/45 km/h Variant) - License plate - Operating license (1954 Ri 25/45 Km/h Variant) - Registration certificate part I (1954 Ri Sport 100 km/h Variant)
  • Page 8 The Kumpan 1954 Ri is designed for operation with driver Before each ride, the scooter must be checked for its road and passenger, for use in road traffic. Any improper use of safety. the vehicle will void the manufacturer‘s warranty and the legal warranty.

  • Page 9: Basic Safety Regulations

    Safety regulations Basic safety regulations: In the case of longer rides in the rain or after the cleaning of the scooter, the braking system may respond with de- lay due to moisture. Therefore, when riding in the rain, the brakes should be often and carefully applied. After cleaning the scooter, the brakes should be carefully „braked-dry“...
  • Page 10 Since most accidents happen due The intake of certain medicines, al- The traffic signs and the national or Always consider the road surface, to inexperience, do not lend your cohol, intoxicating substances or local road traffic regulations must the visibility, etc. vehicle to a beginner.
  • Page 11 (smoking, eating, scooter to your local Kumpan electric rest. drinking, etc.) service partner. Do not stand up while driving. Al- ways ensure a focused and cont- rolled driving manner.
  • Page 12 Clothing They will test the scooter and all Make sure that the safety helmet Loose garments (such as ties, Avoid wearing spearing objects on meets the test standards required safety-relevant components and shoelaces, etc.) must be fastened your body, such as keys or ballpoint by law, is not damaged, and the vi- devices.
  • Page 13 Kumpan electric, may void the ries. When assembling the accesso- ly attached to the vehicle. malfunction. Kumpan electric re- ries, ensure that the horn, indicators manufacturer‘s warranty and the...
  • Page 14 MAX. 195 Kg Loading Excessive weight can impair the Always load the vehicle carefully and Never attach heavy, big and/or dan- To avoid collisions with persons or make sure not to overload it. Check stability and manageability of the gerous objects on handlebars, mud- other obstacles, do not attach too that the luggage parts are fastened vehicle.

  • Page 15: The Kumpan 1954 Ri

    The Kumpan 1954 Ri Overview left side 1. Head lights 2. Rear-view mirror 3. Seat bench 4. Rear - rack / Top case carrier 5. Wheel hub motor 6. Main stand 7. Footrest 8. Side reflector...

  • Page 16: Overview Right Side

    Overview right side 1. Leg compartment with cup holder 2. Glove compartment with a 12V (DC) power outlet 3. Bag hook 4. Front wheel brake disc 5. Side reflector 6. Footrest 7. Vehicle identification number (VIN) / Statutory plate 8. Rear wheel brake disc...

  • Page 17: Overview Front And Rear

    The Kumpan 1954 Ri Overview front & rear 1. Front direction indicator 2. Charging port 3. Brake lever front 4. Brake lever rear 5. Speedometer / touchscreen display 6. Throttle grip 7. Taillight / brake light 8. Rear direction indicator 9.

  • Page 18: Switch Unit Left

    Switch unit left 1. High & low beam switch 2. Direction indicator switch 3. Horn...

  • Page 19: Switch Unit Right

    The Kumpan 1954 Ri Switch unit right 1. Emergency stop switch 2. Control pad 3. Cruise control...

  • Page 20: Display / Touchscreen

    Display / Touchscreen 1. Seat bench status 2. Top case status (for electrical top case) 08:22 Clock · 01.01.2019 MENU 3. Battery status 4. Speed indicator 5. Amperemeter 6. Driving mode / Quick overview 7. Time / Date 8. Menu...
  • Page 21 The Kumpan 1954 Ri km/h Display / Touchscreen – driving view 1. Digital display left (programmable) 2. Speed indicator (analog representation) 08:22 Clock · 01.01.2019 MENU 3. High beam 4. Low beam 5. Cruise control 6. General. warning light Red: Defective - continuation not possible Yellow: Light bulb defective - continuation possible 7.
  • Page 22 DRIVING MODE GENERAL/ km/h SETTINGS SYSTEMINFO EXIT MENU Display / Touchscreen - Menu overview 1. Driving mode 2. General settings 08:22 Clock · 01.01.2019 MENU 5. System info 6. Exit menu...

  • Page 23: Seat Bench / Battery Compartment

    The Kumpan 1954 Ri Seat bench / battery compartment 1. Seat bench 2. Seat bench lock* * To open the seat bench, press this symbol in the upper left corner of the display.
  • Page 24 Seat bench / battery compartment 1. Battery compartment (slots for up to three Kraftpaket 2.0) 2. Battery 3. Illuminated storage compartment * With the opened seat bench, this symbol appears at the top...

  • Page 25: Glove Compartment / Legroom Compartment

    The Kumpan 1954 Ri Glove compartment / leg compartment 1. Glove compartment 2. 12V (DC) outlet (maximum 4,5A) 3. Light 4. Leg room compartment with cup holder * To open the glove compartment and the leg room compart- ment press on these spots.

  • Page 26: Bag Hook

    Bag hook 1. Bag hook (up to a maximum of 5kg) Start-stop button 2. Start-stop button...

  • Page 27: Key

    The Kumpan 1954 Ri 1. Start scooter 2. Activate and deactivate scooter...

  • Page 29: Operate / Drive

    Operate / Drive Safety instructions Notice There is a Europe-wide helmet re- Before driving your Kumpan for the Check the vehicle light before each Note the service intervals in the service quirement for this vehicle! Drive first time, please take the following trip.

  • Page 30: Rear-View Mirror

    Rear-view mirror Assembly: Insert the rear-view mir- Turn the mirror clockwise into the Align the mirrors before each ride rors, on both sides of the scooter, thread and align it. When viewed and control their setting in the cor- into the appropriate threads on the from above, the rear - view mirror rect sitting position on your Kum- handlebars.

  • Page 31: Battery Charger

    Operate / Drive General usage information: Charger • Avoid charging on heat-sensitive or Technical specifications: Our charger has been specially warmth-sensitive ground. designed for the Kraftpaket 2.0. • Avoid the contact of the charger Input voltage: 220 V (AC) with water, acids and alkaline On the top of the charger you will solutions.

  • Page 32: Kraftpaket 2.0 (Battery Pack)

    Kraftpaket 2.0 (battery pack) Technical features: Type: Lithium ion core-pack from single cells Voltage: 50.7 V (DC) Capacity: 29 Ah / 1470 Wh Storage temperature:ca. 10 – 15 °C (ideal), possible: -20 °C up to +60 °C Weight: 9.9kg per battery...
  • Page 33 Operate / Drive Kraftpaket 2.0 (battery) Notice A new battery pack does not initi- On the top of the battery can be ally have the full capacity and dis- found an indicator that shows you plays the full charging-state in the the charging state.

  • Page 34: Insertion And Removal Of Batteries

    Inserting and removing the Kraftpaket 2.0 The Kumpan 1954 Ri is standardly equipped and delivered with a Kraftpaket 2.0. The Kumpan 1954 Ri Sport is stan- dardly delivered with 2 Kraftpaket 2.0. Both vehicles can be operated with up to 3 Kraftpaket 2.0. After you have opened the seat bench (see p.
  • Page 35 Operate / Drive To remove a Kraftpaket 2.0 from the vehicle, first, pull the handle straight upwards to release the locking mechanism. Afterwards, you can remove it from the battery compartment upwards. If you do not use your Kumpan for a while, make sure that the battery is at least 50% charged.
  • Page 36 Make sure that all unused Kraftpaket 2.0 slots are locked with the cover cap, and the charging flap on the scooter front is closed. In this state only, can the scooter be driven.

  • Page 37: On-Board Charging

    Operate / Drive On-board charging To charge the battery on-board the vehicle, press the Kumpan K-logo located on the front cover, and open the charging flap upwards. The plug, to which you connect the Kumpan-charger, is located under the flap.
  • Page 38 The charger must be firstly connec- Switch on the charger now. When If the charging flap is not properly ted to the vehicle, and then to a 220 the battery is charged, the LED-strip closed after disconnecting the char- V(AC) household socket. located on the battery pulsates.

  • Page 39: External Charging

    Operate / Drive External charging Place your Kraftpaket 2.0 on its side, to get to the plug connec- tion of the battery. Afterwards connect the charger‘s cable to the battery, then to a 220 V(AC) household socket and switch on the charger. Ensure that the battery is securely stored and cannot fall over.

  • Page 40: 12V (Dc) - Backup Battery

    12V (DC) - backup battery Your scooter is additionally equipped with a 12V (DC) battery. This allows you The backup battery is firmly installed in the control unit of your scooter and to use your scooter without a key (keyless). It supplies your Kumpan with cannot be removed.

  • Page 41: Footrests

    Operate / Drive Footrests The footrests unfold by pressing on To fold it in, the footrest must be them. pressed into the cover until it stops.

  • Page 42: Turning On The Scooter Via The Key

    START START CONFIRM TO CONFIRM TO START START 08:22 Clock · 01.01.2019 MENU 08:22 Clock · 01.01.2019 MENU Turning on the scooter via Turning on the scooter via keys start-stop button To drive off, you must press the „Ok“ Afterwards, confirm the message on You turn on your Kumpan by pres- Another way to start the scooter is on the display to confirm the start.

  • Page 43: Safe Driving And Stopping

    Operate / Drive Safe driving and stopping Handlebar lock By turning the throttle grip, your The 1954 Ri is equipped with an elec- Kumpan picks up speed and drives tric handled lock. off. The handlebar lock opens automati- The scooter can only be started, if no cally after the start.

  • Page 44: Putting Vehicle On The Stand

    Note Place the vehicle on the stand Stand on the left side of the scooter Ensure that the scooter touches the Always ensure that the scooter is to operate the main stand. ground on both support points of stable and that the surface is firm. the main stand.

  • Page 45: Run-In

    Operate / Drive Run-in Attention New tires can lose their grip, espe- The brake pads and the brake discs Running-in the tires is also impor- cially on wet roads, and in extreme must be run-in to achieve an optimal tant. New tires have a smooth sur- inclined positions.

  • Page 47: Control Cross Operation

    Operate / Drive Control pad operation You can use the control pad unit, positioned on the right hand- le, to operate the menu on the display.
  • Page 48 Enter Enter km/h km/h START CONFIRM TO START 08:22 Clock · 01.01.2019 MENU 08:22 Clock · 01.01.2019 MENU To start the scooter, press the You can select the following posi- middle of the control pad (Enter). tions: To change between the different To reset the value, in the position •...
  • Page 49 Operate / Drive km/h km/h CHARGING FLAP PLEASE CLOSE CHARGING FLAP 08:22 Clock · 01.01.2019 MENU 08:22 Clock · 01.01.2019 MENU 08:22 Clock · 01.01.2019 MENU 08:22 Clock · 01.01.2019 MENU Enter Enter Enter Enter • Battery display / Charging level •...
  • Page 50 DRIVING MODE GENERAL/ km/h SETTINGS SYSTEMINFO EXIT MENU 08:22 Clock · 01.01.2019 MENU Enter Enter Enter • Menu To access the position Menu, go You can navigate through the back until you have reached the Menu-items with arrow-down and Quick overview position. From the- arrow-up.

  • Page 51: Touchscreen Operation

    Operate / Drive km/h Operating the touchscreen The display also offers you a touch-function. Here you can ope- rate the individual items simply with a finger tap on the display. 08:22 Clock · 01.01.2019 MENU We recommend that you operate the display with the control pad while driving.
  • Page 52 Navigation via touch-display: Scooter functions Menu Open seat bench: Tap the Seat bench symbol Menu navigation: Tap the Menu-item Open Top case (electric): Tap the Top case symbol Back: Tap the „Back“ Menu-item or tap next to the Menu Notes/messages Feedback: Tap button Back:...

  • Page 53: Menu Overview

    Operate / Drive DRIVING MODE GENERAL/ km/h SETTINGS SYSTEMINFO EXIT MENU Menu overview 08:22 Clock · 01.01.2019 MENU In the Menu you can find the following Menu-items with the respective sub-menus: • Driving mode • General settings • System information •...

  • Page 54: Driving Mode

    Driving modes DRIVING MODE In the driving mode menu-item, you can change the throttle re- km/h sponse, motor power, and recuperation. The following driving modes are available: RAIN ECO: Power-saving mode, maximum recuperation, gentle throttle response, ideal for long distances. 08:22 Clock ·...

  • Page 55: Settings

    Serve / Drive GENERAL/ SETTINGS General settings km/h AUDIO BRIGHTNESS In the General Settings menu-item, you can configure your TIME/DATE Kumpan. LANGUAGE FAVOURITES Here are the following options: RANGE WARNING 08:22 Clock · 01.01.2019 MENU Sounds: Your Kumpan gives you audio feedback when flashing. In the menu, you can adjust the volume or completely deactivate sounds.
  • Page 56 Time / date: Key: Your scooter automatically receives the current time via telemetry. If the In the sub-menu key, there are 2 other sub-points: Learn and Remove. Here time of your scooter is incorrect, you can set the time here. The time can be you can add or remove additional keys, e.g.

  • Page 57: System Information

    Operate / Drive System information NUMBER km/h In the System info menu-item you will find the VIN number and the software status of the individual control units. 08:22 Clock · 01.01.2019 MENU...

  • Page 58: Defect Warning Symbols

    km/h km/h 08:22 Uhr · 01.01.2019 MENU 08:22 Clock · 01.01.2019 MENU Defect warning symbols If the warning symbol lights up red, yel- In the event of malfunction, a red or If the warning symbol lights up low, a defective lamp is present. It is yellow warning symbol will light up there is a major defect and it is im- on your display.

  • Page 59: Light

    Maintenance Light: Head light Loosen the two screws at the top of Now, carefully remove the frame During assembly, ensure that the re- the main head light-cover. with the head light and disconnect taining lugs engage correctly! the plug-connection of the main On the lower left and right side of head light.

  • Page 60: Parking Light

    Light: Parking light Light: Low / High beam Carefully pull the parking light so- Push the defective lamp lightly into Now, push the socket back into the Carefully pull back the black splash cket out of the lamp housing. the socket and turn it counter-clock- lamp housing, fix the socket with the guard.

  • Page 61: Rear Lights And Direction Indicators

    Maintenance Light: Rear lights and direc- Notice tion indicators In the event of defective LED Light, The rear and brake lights, as well as complex disassembly work may be all indicators, are equipped with LED necessary. These repairs to the ve- technology.

  • Page 62: Kraftpacket2.0 (Battery Pack)

    Kraftpaket 2.0 The Kraftpaket 2.0 is maintenance- If you do not use your Kumpan for Insert your Kraftpaket 2.0 into your free. Make sure the contacts are a longer period of time, ensure that Kumpan after 2 weeks at the latest, kept clean, and the battery does not the battery is at least 50% charged to recharge the backup battery for...

  • Page 63: Brakes

    Maintenance Brakes To check the brake function, pull the A clear pressure-point must be noti- If you cannot feel any pressure- front-brake-lever and the rear-bra- ceable at both levers. point, or if the scooter can be pushed despite the brakes being pulled, the ke-lever one after the other.

  • Page 64: Brake Fluid Level

    MAX. MIN. Brake fluid level Attention If the brake fluid level is below the Check the brake fluid level regularly, The brake fluid level must be bet- minimum, safe operation of the through the inspection windows on ween the max. and min. marking. vehicle is no longer guaranteed.

  • Page 65: Antilocking System (Abs)

    Maintenance km/h 08:22 Clock · 10.05.2017 MENU ABS 1954 Ri Sport (extra equipment for 1954 Ri) The Kumpan 1954 Ri Sport is equip- If the lamp is permanently lit while ped with ABS as standard. driving, there is a malfunction within the ABS system.

  • Page 66: Suspension

    Suspension Adjust spring preload: You have the possibility to adjust the rear shock absorbers spring preload. If you are driving with 2 people or loaded, turn the spring pre- load harder, to adjust the suspension stiffness.

  • Page 67: Cleaning And Care

    Cleaning and care Notes on cleaning and care Never use solvents or strong Never apply a direct jet of water to In order to reliably prevent rusting, cleaning detergents. the following components: we recommend thoroughly cleaning and drying the vehicle after driving Do not use any high-pressure or •...
  • Page 68 Notice Damp the brake discs after After washing, rinse with clear water Should the scooter come into con- washing; driving in the rain or to remove any cleaning residue. Dry tact with road salt in winter, clean passing through water may impair your Kumpan with a leather cloth.

  • Page 69: Accessories

    Accessories Top case carrier Top case mechanical Kumpan offers the following acces- The top case carrier is installed An adapter-plate will be delivered with sories for your vehicle: instead of the rear-rack. your top case. This is assembled on the top You attach it to the same fixing case carrier.
  • Page 70 Top case electric Crash bars The electric top case must be pre- Once you have plugged in the cable, You can order a crash bar set for the assembled by your Kumpan dealer. you can operate your top case via the Kumpan 1954 Ri.

  • Page 71: Storage Periods Of The Scooter And Battery

    Vehicle and battery storage periods Notice If you do not use your Kumpan for a longer period of time, or if you turn it off during the winter months, please do the following: • Clean the vehicle thoroughly before letting it stand for long periods of time.

  • Page 73: Troubleshooting

    Troubleshooting Error Possible Cause Troubleshooting • The scooter is not responding when you switch • The charging flap at the front of the scooter is • Close the charging flap on the front of the scoo- it on and accelerate. not properly closed.
  • Page 74 Error Possible cause Troubleshooting • The charging capacity of your batteries is de • Park your scooter in a warmer parking space creasing. (indoor / garage). • Your battery is defective. • Visit a specialist workshop. • The scooter is not charging. •...

  • Page 75: Technical Specifications

    Technical data Motor Charger Model Brushless DC wheel hub motor Type PBI48-8, IC controlled charger with CE marking Maximum performance 3800 (1954 Ri) / 8500 W (1954 Ri S) Input voltage 100- 240 V(AC) 50 / 60 Hz Maximum efficiency ≥...
  • Page 76 Brakes Seat bench height from the ground (driver/passenger): 845 mm / 887 mm Front / Rear Hydraulic braking system Seat bench length: 746 mm with brake disc Tires Weight Empty weight 10“: 76 kg Front 90/90-10, 3,0-10 3,5-10, 110/70-12, 120/70-12 (depending on equipment) 12“: 82 kg...
  • Page 77 Technical data 1356 1921 1951 All measurements in mm...
  • Page 79 Dealer stamp Kumpan electric A brand by e-bility GmbH Dieselstrasse 28 53424 Remagen Germany Phone: +49 264 2 - 999 800 E-Mail: info@ebility.de www.kumpan-electric.com...
