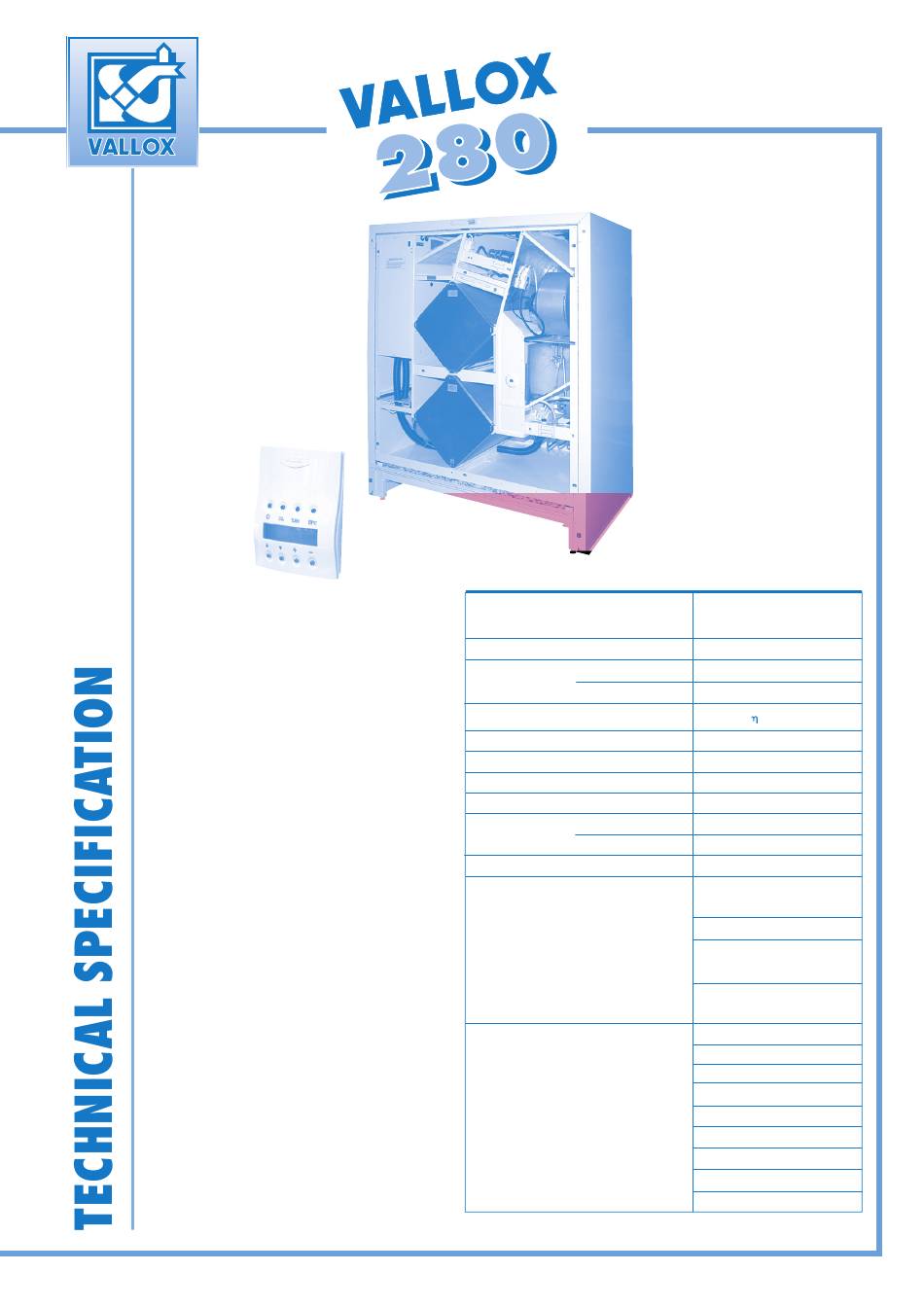

Vallox 280 L Technical Specifications
  1. Manuals
  2. Brands
  3. Vallox Manuals
  4. Control Panel
  5. 280 L
  6. Technical specifications
Vallox 280 L Technical Specifications

Vallox 280 L Technical Specifications

Hide thumbs

Advertisement

Quick Links

Download this manual
DIGIT
ELECTRONIC CONTROLLER
WITH LCD DISPLAY
• For dwelling- and room-specific ventilation
• Good heat recovery efficiency
• Supply and extract air ventilation with heat
recovery
• Electronic control panel with LCD display
• Week clock control as a standard feature
• Humidity control (option)
• Carbon dioxide control (option)
• Maintenance reminder
• Fireplace / booster switch function
• Good filtering
• Summer / winter automation
• Fixed air flow measuring outlets
Models:
VALLOX 280 L
VALLOX 280 R
© VALLOX • We reserve the right to make changes without prior notification.
SED
Input power
Class of protection
Extract air
520 W 3.2 A
Direct current fans
Supply air
520 W 3.2 A
Heat recovery
Heat recovery bypass
Electric preheating radiator
Electric post-heating radiator
Water post-heating radiator
Supply air
Filters
Extract air
Weight
Ventilation adjustment options
Options
• 1.09.357E
• 22.01.07
© VALLOX
Code 3487
230 V, 50 Hz, 400 V, 15.0 A
(+ preheating unit 11 A)
IP 34
3
290 dm
/s 100 Pa
3
240 dm
/s 100 Pa
2 HR cells, = 70%
Summer / winter automation
2.5 kW, 11 A
2.5 kW, 11 A
ca. 5 kW
G3 and F7
G3
206 kg
– control via control panel
(DIGIT SED)
– CO
and %RH control
2
– remote monitoring control
(LON converter)
– remote monitoring control
(voltage / current signal)
– silencer
– electric preheating radiator
– electric post-heating radiator
– water post-heating radiator
– CO
sensor
2
– %RH sensor
– pressure difference switch
– LON converter
– extract air filter F5
