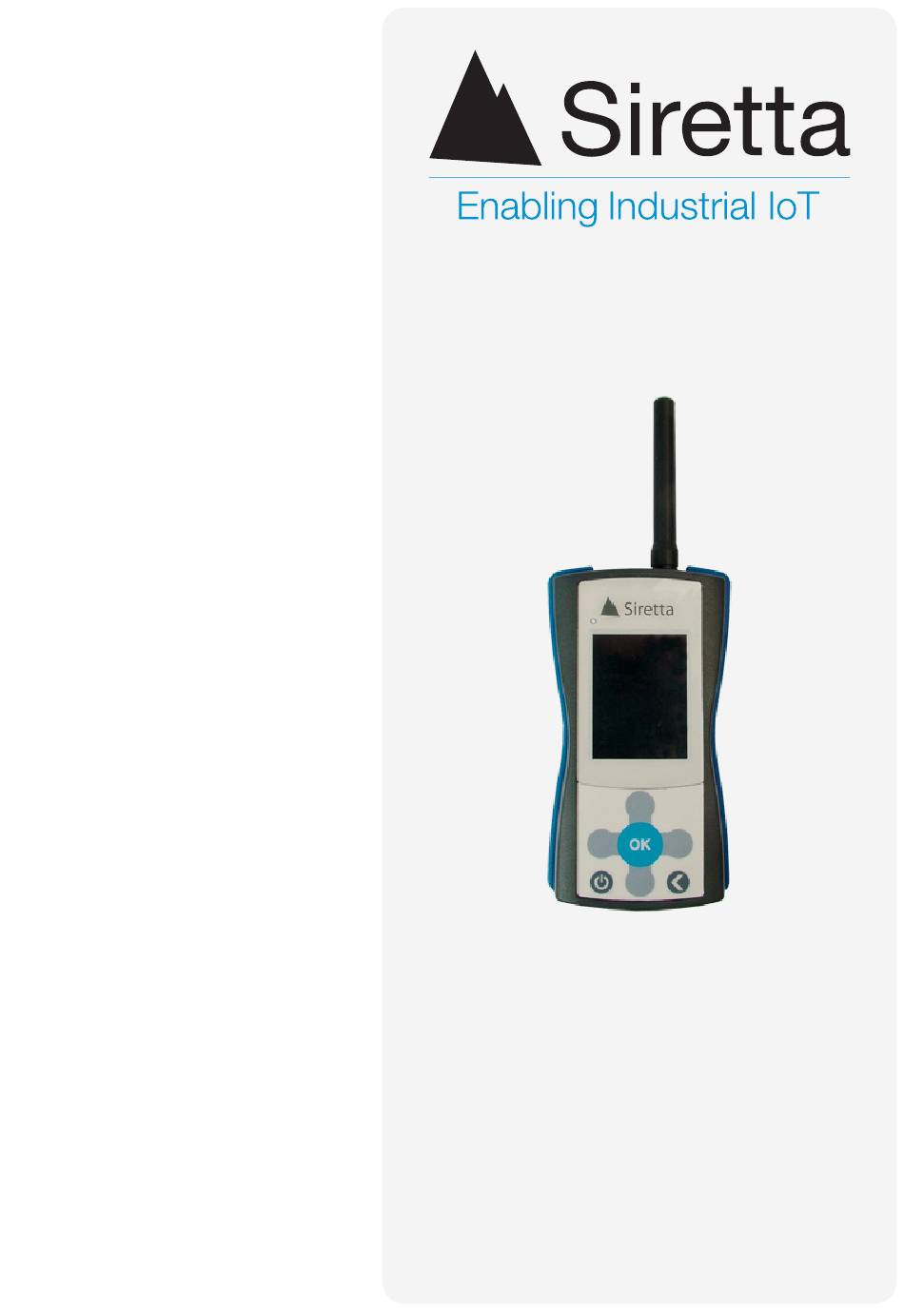

- Page 1 SNYPER-3G Spectrum Cellular Signal and Network Analyser Quick Start Guide Rev 1.6...
-
Page 3: What's In The Box
Multi region power supply » Antenna » USB cable » » Hard carrying case » Quick start guide Optional Accessories liveSCAN directional antenna kit » *For replacement parts, please contact your Siretta representative or call us on +44 (0)118 976 9000... -
Page 4: General Description
The SNYPER-3G Spectrum has been designed to be as logical as possible, with a simple to use menu and operation system. Provided with a large high contrast LCD display, the SNYPER-3G Spectrum enures all the information is clearly visible, and allows the presentation of considerable data at the same time. - Page 5 ON/OFF Button Slot* The SNYPER-3G Spectrum SIM slot located in the enclosure base is used for enhanced network services. A SIM is only required when performing a liveSCAN on a specific network operator. The SIM has to be active, but it will not use any data during...
- Page 6 Power On » The SNYPER-3G Spectrum needs to be charged using the mains adaptor for at least 2 hours before use. The SNYPER-3G Spectrum does not need a SIM card to perform network and signal tests. » Ensure the antenna is screwed firmly into place on the SNYPER-3G Spectrum and isn’t loose.
-
Page 7: Charging And Battery Status
During use, the bar will decrease and turn from green, to yellow, to red. Recharging is recommended once the red bar is displayed on the SNYPER-3G Spectrum battery status bar. If the SNYPER-3G Spectrum drops below allowable low battery usage the unit will switch off and charging will be required. - Page 8 Main Menu The SNYPER-3G Spectrum main menu has 7 menus (as shown below in figure 5), these can be selected using the UP/DOWN buttons. Once the chosen menu is highlighted, click OK. Press the BACK button to return to the main menu.
-
Page 9: Survey Menu
Survey Menu Performing a Survey Step 1. Select ‘Survey’ from the main menu and press OK. Step 2. Select ‘GSM\UMTS Survey’ and press OK. The survey will begin. ‘Survey’ screen Figure 6. GSM\UMTS Survey: Performs a survey for the GSM\UMTS network. Step 2. - Page 10 Step 1. Select the results that you require to be displayed by highlighting ‘View GSM\ UMTS’, ‘View UMTS’ or ‘View GSM’, press OK. The SNYPER-3G Spectrum will display all results with numbered cells from strongest to weakest. To switch between all signals found in the survey, use the LEFT/RIGHT buttons.
-
Page 11: Summary Menu
MNC’s both associated with the same network operator. Figure 9. Displaying summary results New Survey Highlight ‘New Survey’ and press OK. The SNYPER-3G Spectrum will begin a new survey and all previous survey results will be lost. -
Page 12: Save Results
Highlight ‘Save Results’ and press OK to save results to the SNYPER-3G Spectrum.* Once the survey has been stored, the SNYPER-3G Spectrum will return to the main menu. NOTE - The SNYPER-3G Spectrum can store up to 50 survey results. - Page 13 Performing a liveSCAN NOTE: This operation requires an active SIM card to be inserted in the SNYPER-3G Spectrum. The SIM needs to be fully pushed inside the case using a screwdriver until a click is heard. Any SIM card can be used as the liveSCAN will be performed for all networks, regardless of the SIM card inserted.
-
Page 14: Downloading Data
Downloading Data Step 1. To download data from the SNYPER-3G Spectrum, connect the USB cable supplied to the SNYPER-3G Spectrum and PC. Step 2. From the SNYPER-3G Spectrum ‘Main Menu’ select ‘PC Connect’ and ‘Enable’. From the PC select ‘Open Folder to View Files’ and open saved files as required. -
Page 15: Power Off
Spectrum can be powered off in the following 2 ways: » Selecting the ‘Power Off’ option from the main menu. The SNYPER-3G Spectrum will display a power off message as shown below in figure 14. Figure 13. Select ‘Power Off’... - Page 16 +44 (0)118 976 9000 sales +44 (0)118 976 9020 email sales@siretta.com www.siretta.com Siretta Ltd Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 Rev 1.6...
