SIRETTA SNYPER-3G Spectrum Quick Start Manual

Cellular signal and network analyser
Hide thumbs Also See for SNYPER-3G Spectrum:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

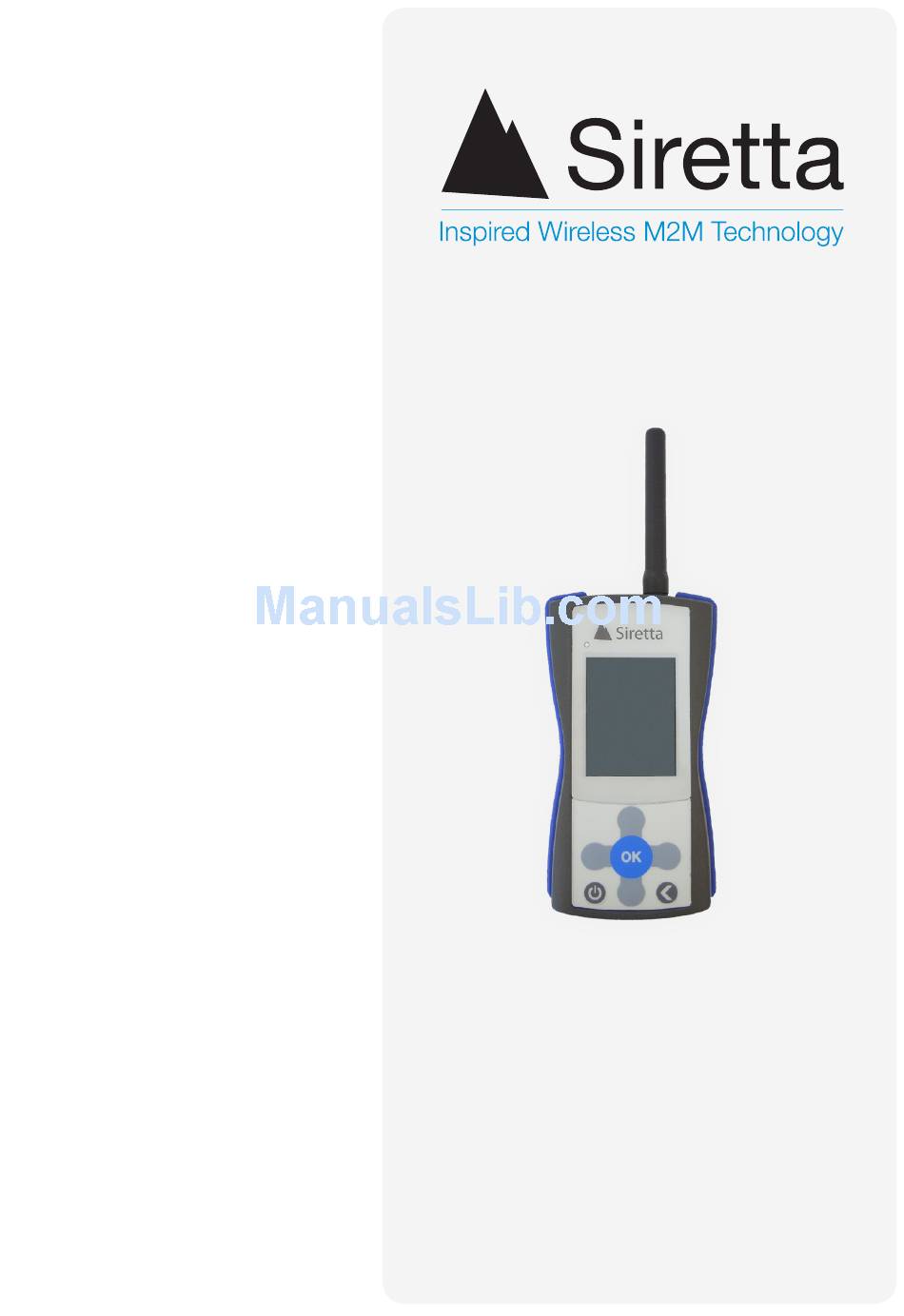

SNYPER-3G Spectrum
Cellular Signal and Network
Analyser
Quick Start Guide
Rev 1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNYPER-3G Spectrum and is the answer not in the manual?

Questions and answers

Related Manuals for SIRETTA SNYPER-3G Spectrum

Summary of Contents for SIRETTA SNYPER-3G Spectrum

  • Page 1 SNYPER-3G Spectrum Cellular Signal and Network Analyser Quick Start Guide Rev 1.5...

  • Page 3: Optional Accessories

    Multi region power supply » Antenna » » USB cable » Hard carrying case Quick start guide » Optional Accessories » liveSCAN directional antenna kit *For replacement parts, please contact your Siretta representative or call us on +44 (0)118 976 9014...

  • Page 4: General Description

    The SNYPER-3G Spectrum has been designed to be as logical as possible, with a simple to use menu and operation system. Provided with a large high contrast LCD display, the SNYPER-3G Spectrum enures all the information is clearly visible, and allows the presentation of considerable data at the same time.
  • Page 5 DOWN Button Slot* The SNYPER-3G Spectrum SIM slot located in the enclosure base is used for enhanced network services. A SIM is only required when performing a liveSCAN on a specific network operator. The SIM has to be active, but it will not use any data during the liveSCAN survey as it is only required for network...
  • Page 6 Powering the SNYPER-3G Spectrum Power On » The SNYPER-3G Spectrum needs to be charged using the mains adaptor for 6 - 8 hours before initial use. The SNYPER-3G Spectrum does not need a SIM card to perform network and signal tests.
  • Page 7 Recharging is recommended once red bars are displayed on the SNYPER-3G Spectrum battery status bar. If the SNYPER-3G Spectrum drops below allowable low battery usage the unit will switch off and charging will be required. At power on, if the battery is below allowable low battery usage a low battery indicator will be displayed as shown below in figure 5.

  • Page 8: Main Menu

    Main Menu The SNYPER-3G Spectrum main menu has 7 menus (as shown below in figure 7), these can be selected using the UP/DOWN buttons. Once the chosen menu is highlighted, click OK. Press the BACK button to return to the main menu.
  • Page 9 After use, remember to power off the SNYPER-3G Spectrum. The SNYPER-3G Spectrum can be powered off in the following 2 ways: Selecting the ‘Power Off’ option from the main menu. The SNYPER-3G Spectrum » will display a power off message as shown below in figure 9.
  • Page 10 Performing a Survey Step 1. Select ‘Perform Survey’ from the ‘Survey’ menu, this will automatically begin a new survey. Whilst the survey is being performed, the SNYPER-3G Spectrum will display a sequence of messages as shown below in figures 12 - 14.
  • Page 11 Figure 16. Strongest signal found in the Figure 17. Next strongest signal found survey in the survey Press the back button to return to the ‘Current Survey’ menu. *See the ‘SNYPER-3G Spectrum User Manual’ for more information on survey results.
  • Page 12 Results are displayed in order of strength within signal strength bands across different screens. To display higher or lower signal strengths received on the SNYPER-3G Spectrum, click the LEFT/ RIGHT buttons (LEFT displays higher signal strengths, RIGHT displays lower signal strength).
  • Page 13 70% Signal Strength The SNYPER-3G Spectrum is displaying all 2G networks being received at 70%. At this level, Vodafone shows 1 cell being received. 55% Signal Strength The SNYPER-3G Spectrum is displaying all 2G networks being received at 55%. At this level, O2 now shows 1 cell being received.
  • Page 14 25% Signal Strength The SNYPER-3G Spectrum is displaying all 2G networks being received at 25%. At this level, there is 1 additional Vodafone cell and 4 additional O2 cells being received at a weaker strength than the previous cells received.
  • Page 15 Any SIM card can be used as the liveSCAN will be performed for all networks, regardless of the SIM card inserted. Figure 18. Inserting SIM into SNYPER-3G Spectrum *See the ‘liveSCAN Antenna - Quick Start Guide’ for a more detailed guide on using...
  • Page 16 To perform a liveSCAN, follow the steps below: Step 1. From the ‘Options’ menu, set the SNYPER-3G Spectrum to ‘ADV: Advanced’ and ‘Save Settings’. This option enables liveSCAN. Step 2. Perform a new survey. Once survey has been performed (as shown below in figure 19), remove the omni-directional antenna and replace with the optional liveSCAN antenna and cable.
  • Page 17 21. Figure 21. Saving survey results to the SNYPER-3G Spectrum Once the survey has been stored, the SNYPER-3G Spectrum will return to the main menu.** NOTE - The SNYPER-3G Spectrum can store up to 50 surveys.

  • Page 18: Downloading Data

    Downloading Data Step 1. To download data from the SNYPER-3G Spectrum, connect the USB cable supplied to the SNYPER-3G Spectrum and PC. Step 2. From the SNYPER-3G Spectrum ‘Main Menu’ select ‘PC Connect’ and ‘Enable’. From the PC select ‘Open Folder to View Files’ and open saved files as required.

  • Page 19: Further Information

    Accessories Directional liveSCAN Antenna Kit Figure 24. liveSCAN Antenna Further Information Full user guide for the SNYPER-3G Spectrum can be downloaded from the Siretta website. www.siretta.co.uk...
  • Page 20 +44 (0)118 976 9014 +44 (0)118 976 9020 accounts +44 (0)118 976 9069 email info@siretta.co.uk www.siretta.co.uk Basingstoke Road Spencers Wood Reading Berkshire RG7 1PW United Kingdom Company No. 08405712 VAT Registration No. GB163 04 0349 A member of the Olancha Group Ltd...
