SNYPER-LTE Spectrum
Cellular Signal and Network
Analyser with liveSCAN
Quick Start Guide
Rev 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNYPER-LTE Spectrum and is the answer not in the manual?

Questions and answers

Related Manuals for SIRETTA SNYPER-LTE Spectrum

Summary of Contents for SIRETTA SNYPER-LTE Spectrum

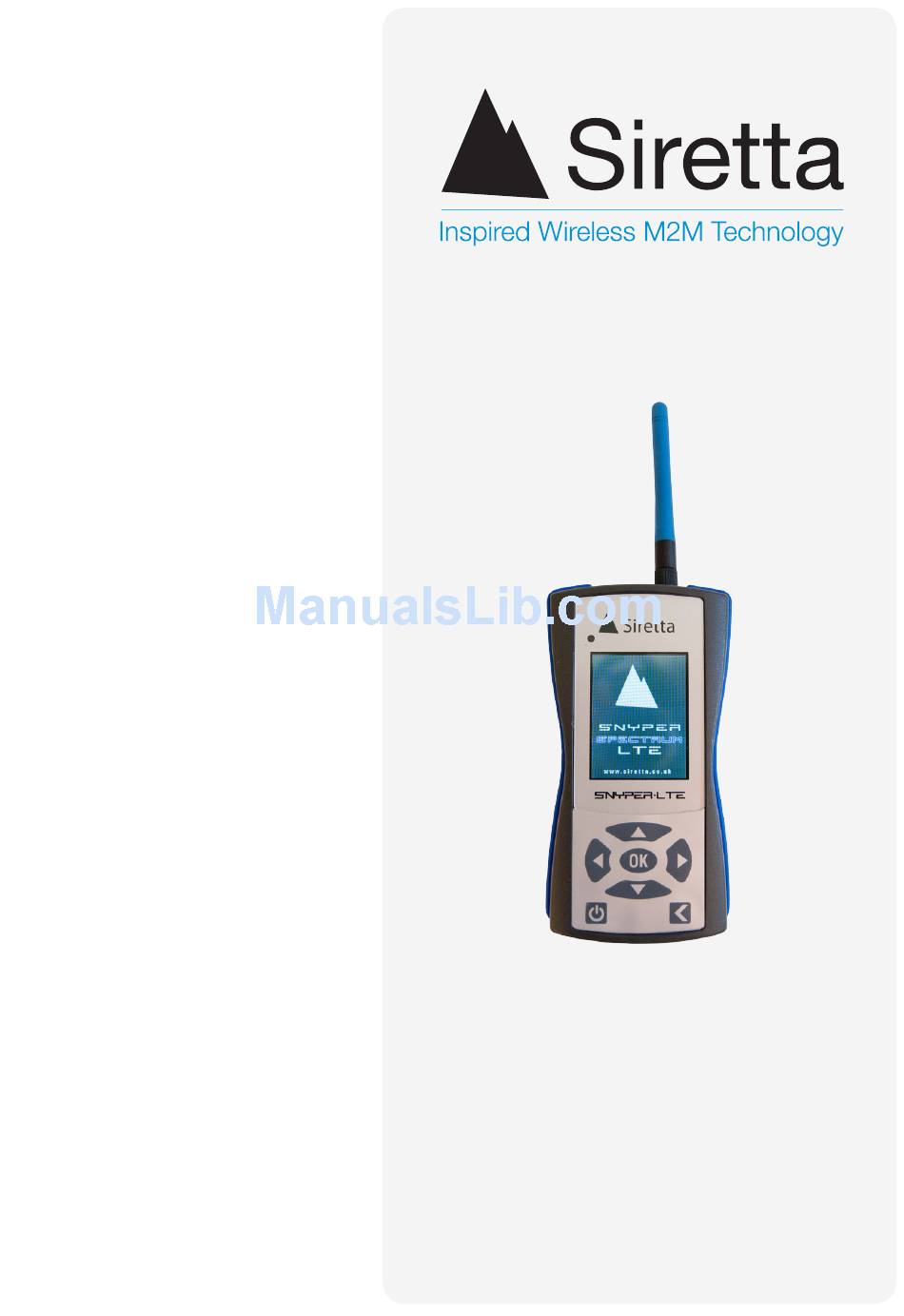

  • Page 1 SNYPER-LTE Spectrum Cellular Signal and Network Analyser with liveSCAN Quick Start Guide Rev 1.1...
  • Page 2 View LTE Survey Results Save LTE Survey Results Performing a GSM/UMTS Survery View GSM/UMTS Survey Results Save GSM/UMTS Survey Results Viewing Saved Survey Results Downloading Saved Data Performing a liveSCAN Performing an LTE liveSCAN Performing a GSM/UMTS livescan Powering off the SNYPER-LTE Spectrum...

  • Page 3: Case Contents

    Case Contents Unpack the case contents to begin using your SNYPER-LTE Spectrum signal strength tester. SNYPER-LTE Spectrum signal and network analyser Multi region power supply Blue antenna - General purpose LTE(4G), UMTS(3G) & GPRS(2G) coverage Silver antenna - For LTE 2600MHz only...
  • Page 4 This device requires an active 4G enabled SIM when performing surveys on all LTE, UMTS and GSM networks. Insert SIM card as shown below. The SNYPER-LTE Spectrum needs to be charged using the mains adaptor for 6 - 8 hours before initial use.

  • Page 5: Main Menu

    Main Menu The main menu will be displayed when the SNYPER-LTE Spectrum has successfully powered on. The main menu has 7 menus (as shown below in figure 4), these can be selected using the UP/DOWN buttons. Once the chosen menu is highlighted, click the OK button.

  • Page 6: Performing An Lte Survey

    Performing an LTE Survey Use the menu buttons to select ‘Survey’, click the OK button. Select ‘LTE Survey’, click the OK button. Survey will begin performing Figure 6. Selecting Figure 7. Performing Figure 5. Select survey LTE survey survey...

  • Page 7: View Lte Survey Results

    (as shown in figure 8). Using the menu buttons, select the network results you wish to view. Press OK (see figure 9 for network results). Figure 8. ‘Survey Menu’ screen Figure 9. LTE results NOTE: See ‘SNYPER-LTE Spectrum - User Manual’ if you require more information on interpreting survey results.

  • Page 8: Save Lte Survey Results

    Save LTE Survey Results Press the back button until you return to the ‘LTE Menu’ screen. Select ‘Save’, click the OK button. Results will save. Figure 10. Saving Figure 11. Selecting Figure 12. LTE save option results being saved results...
  • Page 9 Performing a GSM/UMTS Survey Use the menu buttons to select ‘Survey, click the OK button. Select ‘GSM/UMTS’, click the OK button. Survey will begin performing Figure 14. Selecting Figure 15. GSM\UMTS Figure 13. Select survey GSM/UMTS survey results being saved...

  • Page 10: View Gsm/Umts Survey Results

    New Survey: Performs a new network survey. Save: Saves the results of the performed survey. Figure 17. UMTS results Figure 18. GSM results Figure 19. Summary NOTE: See ‘SNYPER-LTE Spectrum - User Manual’ if you require more information on interpreting survey results.

  • Page 11: Save Gsm/Umts Survey Results

    Save GSM/UMTS Survey Results Press the back button until you return to the ‘Survey Menu’ screen. Select ‘Save’, click the OK button. Results will save. Figure 20. Saving Figure 21. Selecting Figure 22. GSM/UMTS save option results being saved results...
  • Page 12 Viewing Saved Results Use the menu buttons to select ‘Saved Results’, click the OK button. Select ‘LTE Survey’ or ‘GSM/UMTS Survey’, click the OK button. Use the menu buttons to select the saved results you wish to view, click ‘View’. Figure 24.

  • Page 13: Downloading Saved Data

    Downloading Saved Data Connect supplied USB cable to the SNYPER-LTE Spectrum and PC. From the SNYPER-LTE Spectrum ‘Main Menu’ select ‘PC Connect’ and ‘Enable’. From the PC select ‘Open Folder to View Files’ and open saved files (copy files to hard drive as required).

  • Page 14: Performing A Livescan

    Performing a liveSCAN The liveSCAN operation with the SNYPER-LTE Spectrum has two uses: 1: Locating the direction of a specific cell using a directional antenna 2: Locating the presence of strongest available signal in a survey result Connect the supplied liveSCAN antenna to the SNYPER-LTE Spectrum.

  • Page 15: Performing A Gsm/Umts Livescan

    To stop performing a liveSCAN, press and hold the BACK button to return to the previous menu. Powering off the SNYPER-LTE Spectrum After use, remember to power off the SNYPER-LTE Spectrum. This can be done by: » Selecting the ‘Power Off’ option from the main menu. The SNYPER-LTE Spectrum will display a power off message.

  • Page 16: Further Information

    Further Information Full user guide for the SNYPER-LTE Spectrum can be downloaded from the Siretta website. www.siretta.co.uk/snyper-lte sales +44 (0)118 976 9014 +44 (0)118 976 9020 accounts +44 (0)118 976 9069 email info@siretta.co.uk www.siretta.co.uk Basingstoke Road Spencers Wood Reading Berkshire...
