4.7 USB interface

Table 8: USB interface
Pin Signal
1 VBUS
2 USB_D+
3 USB_D-
4 GND

4.8 Switch interface

Table 9: The Description of the Switch status
S204 Status
Off
On
S301 Status
Off
On
SIM7100x EVB User Guide
DISTRIBUTED BY TEXIM EUROPE

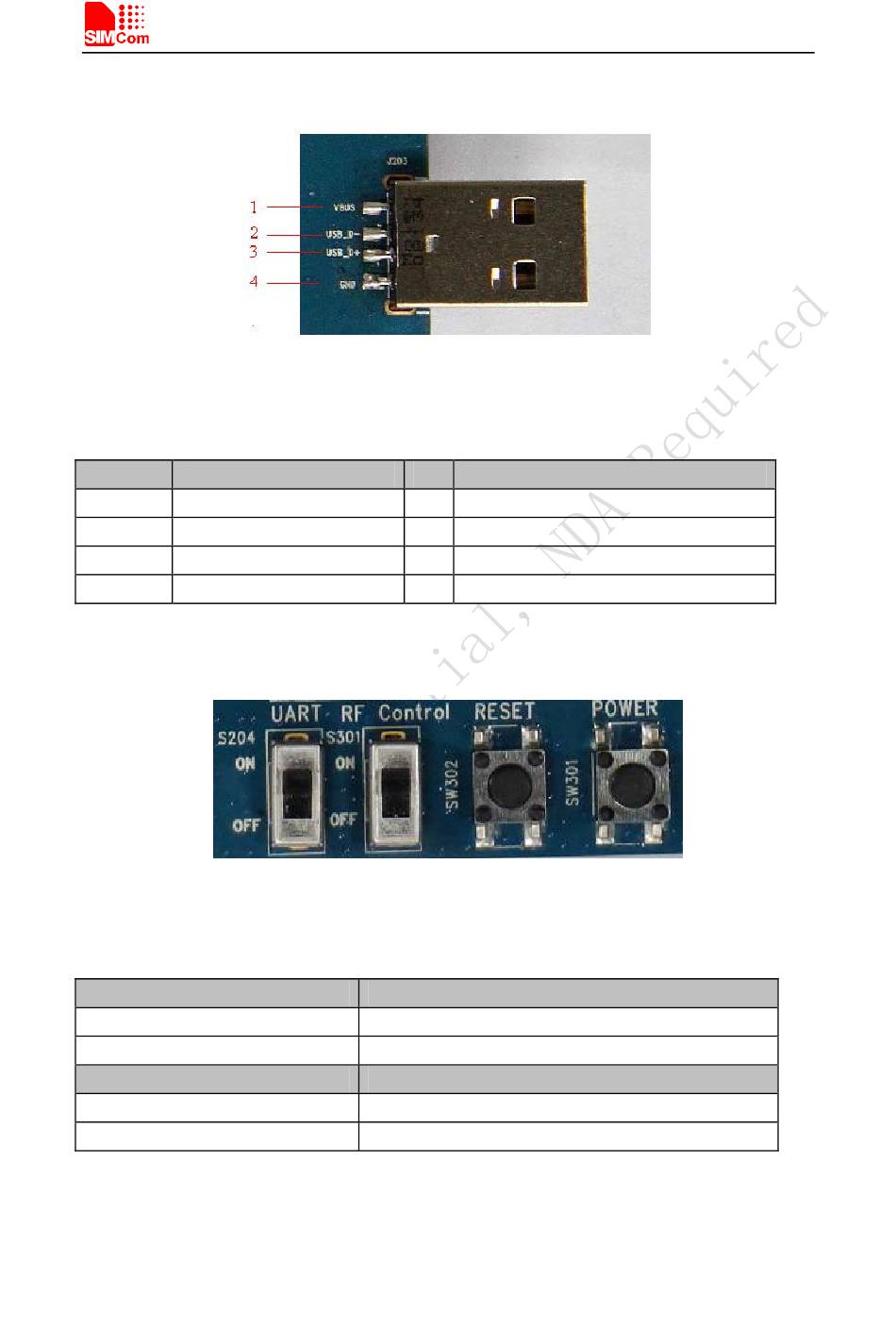

Figure 11: USB Interface
I/O
I
I/O
I/O
Figure 12: Switch Interface
Description
The RS232 transceiver is closed.
The RS232 transceiver is open.
Description
The RF circuit of SIM7100x is closed.
The RF circuit of SIM7100x is open.
