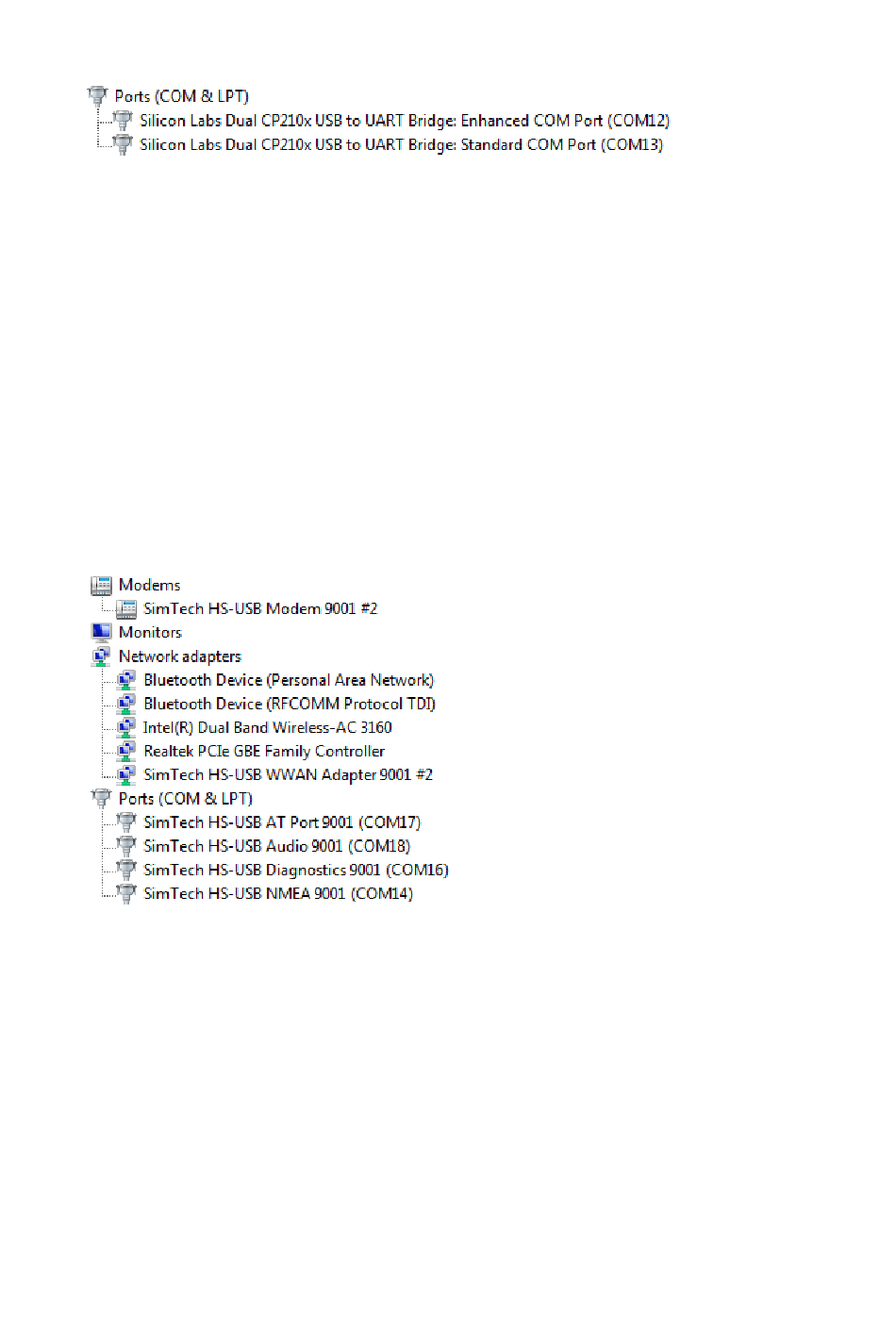

Here Enhanced port (COM12) is for AT command communication, while Standard port (COM13)
usually is reserved for debug.

3.1.2 Module USB interface driver installation

SIM7000 Chipset is from Qualcomm. SIMCom provide proper driver to developer, please contact
local FAE.
After USB driver installed properly and completely, there will be 6 virtual ports, AT port, Audio
port, Diagnostics port, NMEA port, modem port and WWAN adapter port.

3.2 Accessories installation

Now, in order to do function test, we need install necessary accessories to EVB and TE board.
1) insert SIM card to main sim card slot (position F);
2) install LTE antenna (position U) and GNSS antenna (position V);
3) Insert micro USB cable to EVB board (position H) for UART communication or TE board
(position W) for USB communication.
4) Insert +5V DC adapter to EVB board (position T).
