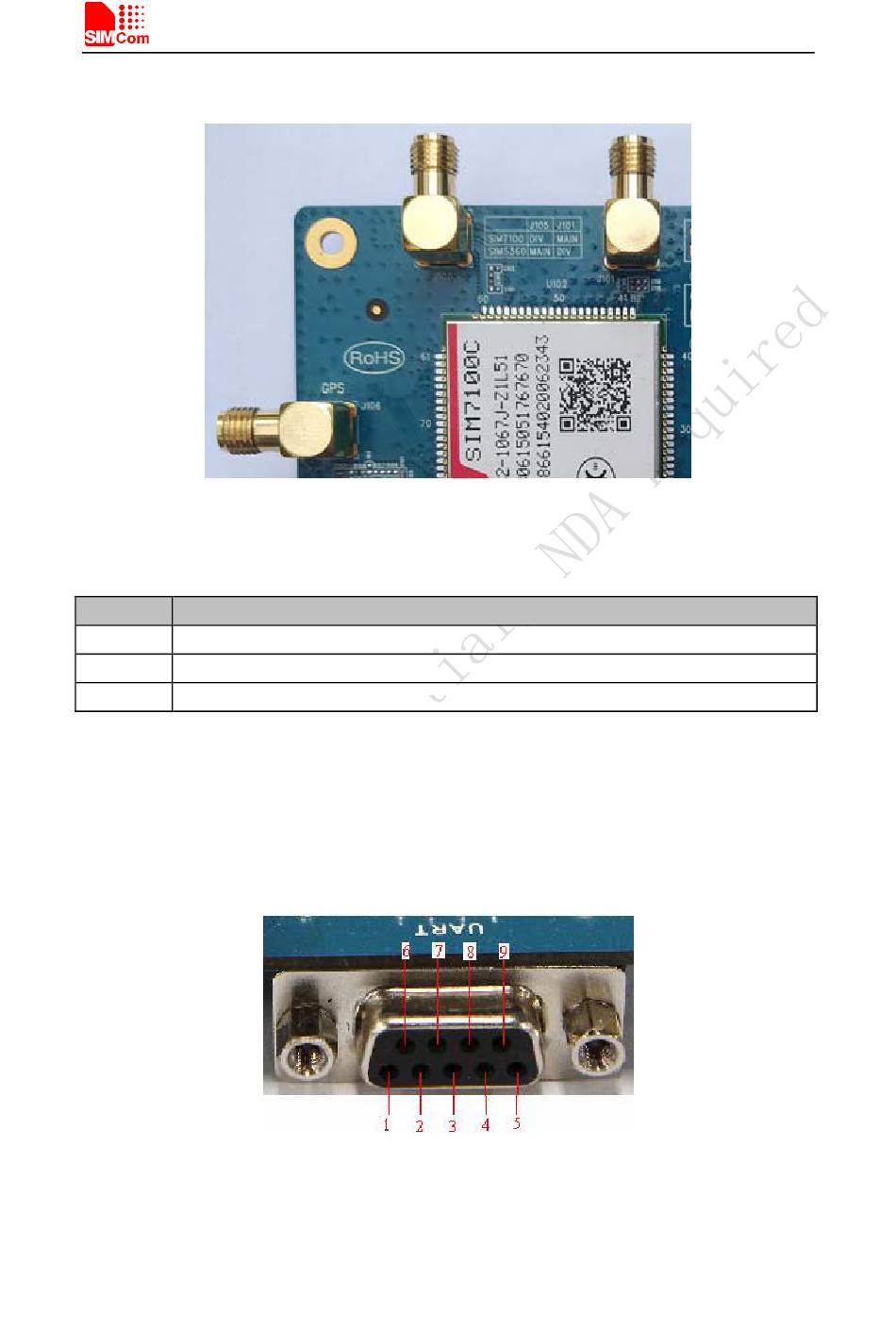

4.4 Antenna Interface
Table 5: The Description of The Antenna Connectors
Item
Description
J101
Main antenna connector
J105
Auxiliary antenna connector
J106
GPS/GLONASS antenna
4.5 RS232 Interface
J205 is 9 pins standard RS232 UART interface. It can be connected to a PC directly.
Table 6: Serial Interface
SIM7100x EVB User Guide
