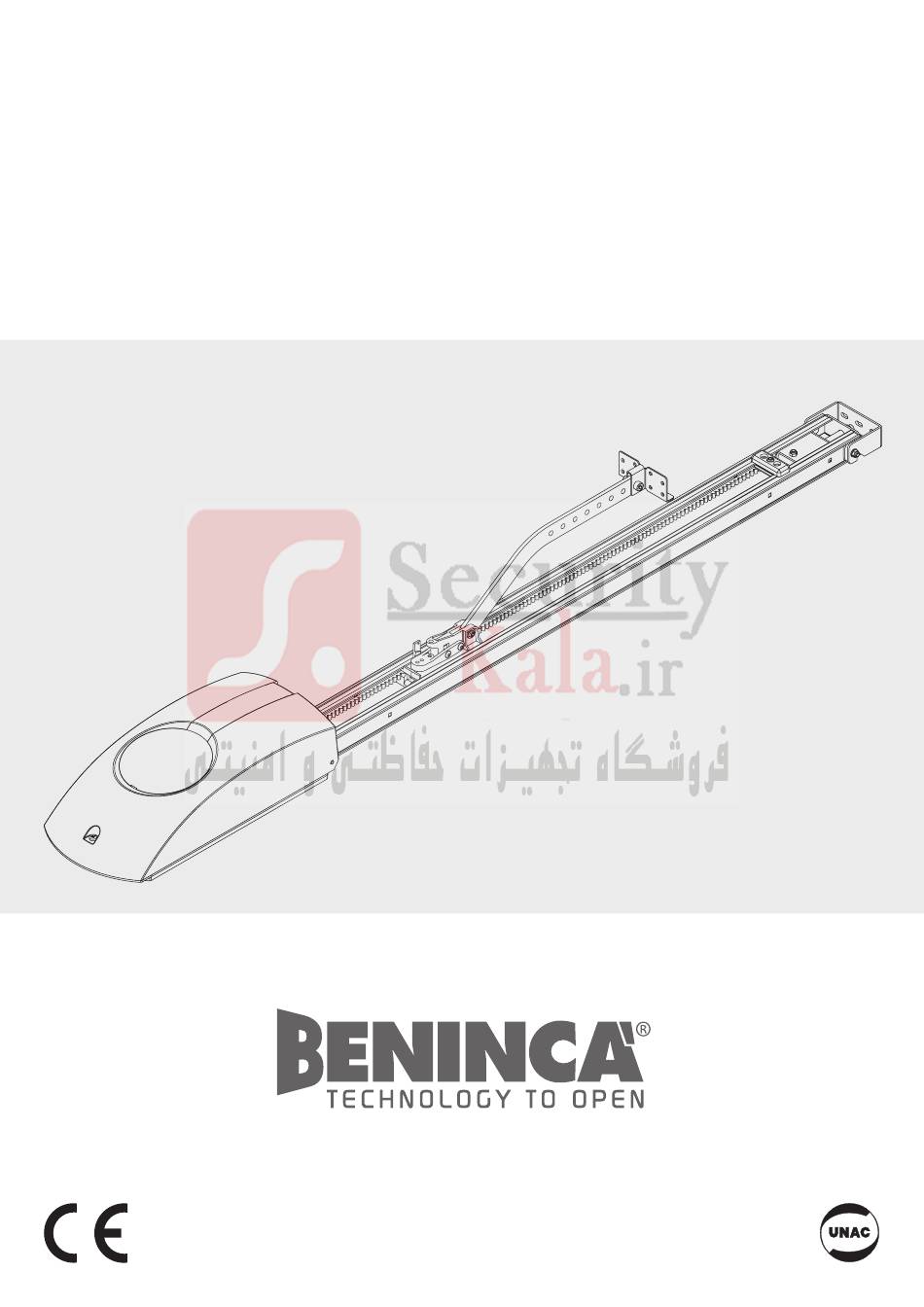

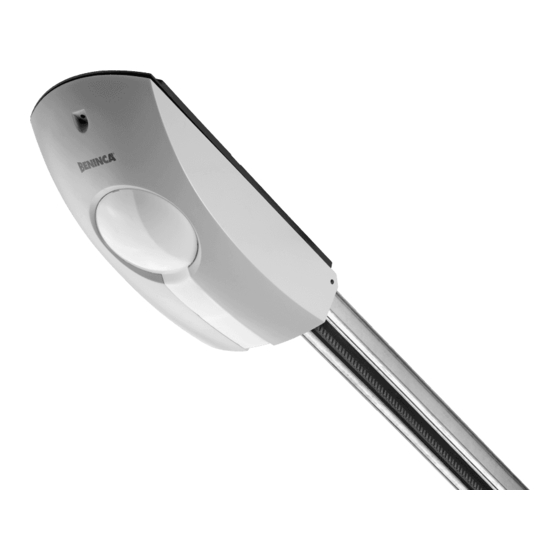

- Page 1 | 03191003037 | 09133648641 L8542919 04/2011 rev 0 JM.3 ESA JM.4 ESA UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 www.Securitykala.ir | 03191003037 | 09133648641 4+4 M6x16 2+2 M6x16 2+2 M6x16...
- Page 3 www.Securitykala.ir | 03191003037 | 09133648641 4,8x38...
- Page 4 www.Securitykala.ir | 03191003037 | 09133648641 PTC.4 / PTCL.4 AU.C25...
- Page 5 www.Securitykala.ir | 03191003037 | 09133648641...
- Page 6 www.Securitykala.ir | 03191003037 | 09133648641 Cavo di acciaio. Steel cable. Stahlkabel. Corde en acier. Cable de acero. Pręt żelazny. Guaina. Sheath. Hülse. Gaine. Guaina. Osłona. Staffa. Support. Registro. Stütze. Register. Support. Regulierung. Soporte. Réglage. Zaczep. Reglaje. Rejestr. Morsetto. Clamp. Rosetta 9x24 UNI 6593. Blocca.
- Page 7 www.Securitykala.ir | 03191003037 | 09133648641 Fissare il braccio sul filo superiore della porta. Fix the arm to the top edge of the door. Arm an der oberen Kante des Tores befestigen Fixer le bras sur l’arête supérieure de la porte. Fijar el brazo en la arista superior de la puerta.
-
Page 8: Ec Declaration Of Conformity
It is hereby stated that the product pulling automatic system for sectional doors model JM.3 ESA/JM.4 ESA. is compliant with provisions set forth in the following EC Directives: - DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 15 December 2004, on the harmonisa- tion of the laws of Member States relating to electromagnetic compatibility and which cancels Directive 89/336/EEC, according to the following harmonised regulations: EN 61000-6-2:2005, EN 61000-6-3:2007. - Page 9 The gear motor is available in two versions: pers, at beginning and end of track, by using the screws JM.3 ESA (600Nm) and JM.4 ESA (1200Nm) to which the K, as highlighted in Fig.13a. At the end of the adjustment following tracks can be matched (fig.1):...
- Page 10 www.Securitykala.ir | 03191003037 | 09133648641 5. Accessories (optional) JM.CB Emergency Battery Kit: It permits the operation of the automatic system in the event of power failure. The kit is composed of: battery charge card, 2 batteries at 12V, fitting bracket, screws and cables. The batteries must be installed on the upper part of the gear motor basis, as per Fig.16.
- Page 11 www.Securitykala.ir | 03191003037 | 09133648641 JIM 3 JIM 4 Denominazione - Description - Bezeichnung - Dénomination - Denominación - Określenie Ref. Tendicinghia Belt tightening Riemenspanner Tendeur de cour. Tensor correa Naciągacz pasa 9686670 Rail PTC.3/4 Schiene PTC.3/4 Rail PTC.3/4 Szyna PTC.3/4 9686671 Rail PTC.L4 Szyna PTC.L4...
