Bornack SSE 02 User Manual

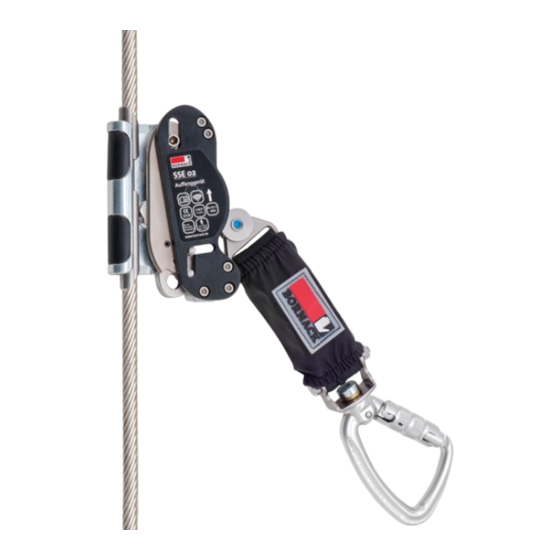

Rope fall arrester sse with sliding arrester harness
Hide thumbs

Advertisement

Quick Links

Download this manual
EN
SSE 02
User Manual
0158 EN 353-1:2014

Advertisement

loading

Related Manuals for Bornack SSE 02

Summary of Contents for Bornack SSE 02

  • Page 1 SSE 02 User Manual 0158 EN 353-1:2014...

  • Page 2: Brief Description

    An installed energy absorber on the arrester The fall arrester SSE 02 has been tested as harness limits the impact force to max. 6.0 kN. system and may only be used on an SSE-...
  • Page 3 BRIEF DESCRIPTION EQUIPMENT FALL ARRESTER SSE02 ACCESSORIES • CNC-manufactured casing and element in • Full body harness acc. to EN 361 equipped stainless steel with two fall arrester D-rings on the front • Eccentric jammer 1 in stainless steel (sternal D-ring at chest height, e.g. STRIPE. Full •...
  • Page 4 4 | 5 GUIDE ROPE SSE FALL ARRESTER SSE 02 Moving fork Upper pushbutton of rope terminal prism to insert rope Energy absorber belt Crown Dropping latch (prevents the runner from being positioned back-to-front) Karabiner with Pawl 1 TWISTLOCK PLUS lock...

  • Page 5: Information Before Use

    INFORMATION BEFORE USE The following checks must be • Metal parts, in particular the rope surface and performed before each use! rope end connections, show no signs of damage caused by deformation, breakage, wear, heat (lightning strike) or chemical • Damaged, fall-stressed, dubious fall arresting influences.
  • Page 6 Putting on the full body harness (observe User Manual of the harness) A Attach the karabiner of the SSE 02 to the sternal attachment point (middle of chest) of the full body harness. The attachment point must be approved for the arresting function (A-code).
  • Page 7 SSE 02 IN USE ATTACHMENT OF THE FALL ARRESTER TO THE TENSIONED ROPE B Hold the unit in your hand so that the arrow points upwards (if in the wrong position, the dropping latch covers the insert slit for the...
  • Page 8 8 | 9 SSE 02 IN USE SAFE ASCENT AND DESCENT • During ascent, the fall arrester runs freely. • During descent the fall arrester slides. • Its own weight automatically ahead on the rope. • The relatively heavy weight of the unit ensures that it functions reliably.
  • Page 9 SSE 02 IN USE • The following behaviour can lead to uninten- tional faults: - Fall arrester is twisted when placed onto the rope guide and rubs on rope guide (braking) - Upper body is leant too much backwards (fall arrester blocks)

  • Page 10: Safety Instructions

    • Protect personal protective equipment during • The fall arrester SSE 02 is part of the personal storing, use and transportation against the protection equipment and should be assigned effects of heat (e.g. welding flames or sparks) to a specific person/team and must be inspec- and chemicals (e.g.
  • Page 11 CERTIFICATION SERVICE Complies with the EC Directive 89/686/EEC. If you have any further questions about safe use of this PPE or other BORNACK services, such Type testing and production monitoring by: • Risk analysis DEKRA EXAM GmbH • Rescue plans Dinnendahlstr.
  • Page 12 LIFE SPAN • Store away from light in a dry place. • Do not store rope protection equipment close Maximum usage period of fall arrester SSE 02 to radiators. Permanent temperatures of over after being used for the first time: +50 °C have a negative impact on the strength...
  • Page 13 OTHER PRODUCT IDENTIFICATION You will find the following information on the fall arrester equipment: Guide rope SSE Label on mast foot Logo Type designation Product type Steigschutzeinrichtung Ident-No. / mounting date Compatible fall arresters Max. useful load min. 5.0m Safety clearance Read/observe user between users manual...

  • Page 14: T E S T C A R D

    14 | 15 T E S T C A R D FOR ANNUAL MONITORING The test card must be completed in full by Type SSE 02 : ________________________ the expert during the annual inspection. Manufactured on: ___________________ This test card does not claim to cover all test criteria and does not relieve the expert Serial no.:...
  • Page 15 T E S T C A R D FOR ANNUAL MONITORING Please complete: Year Year Year Year Year Year Year Year Year Year No signs of corrosion No signs of wear Complete No deformation, cracks etc. Bearings have no play Switch moves smoothly Eccentric jammer blocked (spring clamp)
  • Page 16 16 | 17 Notes:...
  • Page 17 Notes:...
  • Page 18 18 | 19 Notes:...
  • Page 19 Notes:...
  • Page 20 Tel + 41 (0) 62 / 886 30 40 Fax + 41 (0) 62 / 886 30 41 info@bornack.ch www.bornack.ch © BORNACK – Subject to technical changes Reprinting or duplication, even of excerpts, is only permitted with written consent Status: 07/2018 GAL No. 000 097 ebo...
