LG Pocket Photo PD221 Owner's Manual

For android smartphone
Hide thumbs

Advertisement

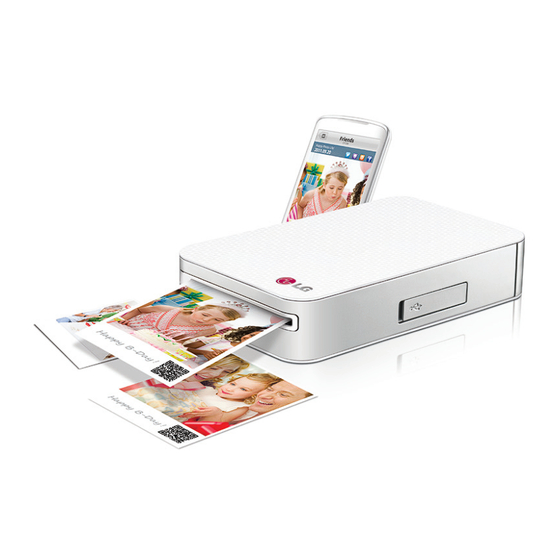

The actual device may differ from the image.
Owner's manual
Please read this manual carefully before
operating your device.
MODEL : PD221
QR code for Pocket Photo App
Bluetooth®
221.ASGPLLK_OM_ENG_0663_1115.indd 1
2012-11-15
4:38:02

Advertisement

Table of Contents
loading

  Related Manuals for LG Pocket Photo PD221

  Summary of Contents for LG Pocket Photo PD221

  • Page 1 The actual device may differ from the image. Owner’s manual Please read this manual carefully before operating your device. MODEL : PD221 QR code for Pocket Photo App Bluetooth® 221.ASGPLLK_OM_ENG_0663_1115.indd 1 2012-11-15 4:38:02...
  • Page 2 221.ASGPLLK_OM_ENG_0663_1115.indd 2 2012-11-15 4:38:02...
  • Page 3: Safety Information

    Safety information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 4 This device is equipped with a portable battery or accumulator. Safety way to remove the battery or the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points.
  • Page 5: Table Of Contents

    ) ......14 Bluetooth® Setting LG Pocket Photo using USB connection ....15 Bluetooth®...
  • Page 6: Step 1 Getting Started

    STEP 1 Getting Started Supplied items Charger LG Pocket Photo Printer Owner’s manual USB cable ZINK Photo Paper Product Overview Reset hole Micro USB port (for recharging) USB port (Type A, for Smartphone) Paper exit slot Upper cover Paper insert door...
  • Page 7: Step 2 Charging Battery

    10 % : flashes for about 3 sec. y 0 % : flashes for about 30 sec. and turns off. y LG Pocket Photo is always charged when connected to the power supply except for being printed. Charger (AC Adapter) y Model : MCS-01ED y Manufacturer : Dong Do Electronics Co., Ltd...
  • Page 8: Step 3 Inserting Photo Paper

    > Caution y Handle with care during charging to prevent electric shock. y Do not place near heating appliance. y Do not disassemble or deform. y Do not give shock on. y Avoid too high or low temperature or humidity. Note y You can connect the device to PC using the supplied USB cable, but charging time can be longer.
  • Page 9: Cleaning Printer Head Using Smart Sheet

    Photo Paper with White side up Smart Sheet with Barcode side down Cleaning printer head using Smart Sheet Smart Sheet cleans printer head and calibrates colors on photo. Keep the best print quality by using it repeatedly. Paper Jam Solution Do not pull the paper out.
  • Page 10: Step 4 Installing App

    STEP 4 Installing App From Play Store (Android market) Search for “LG Pocket Photo”. Using QR code Scan the QR code on the product box or the cover of this manual. Using NFC Refer to “Printing using NFC” on page 13.
  • Page 11: App Setting

    App Setting Set the options in [Setting]. y NFC : Prints using NFC (NFC-enabled phone only) y Bluetooth : Prints using Bluetooth y USB debugging : Prints by connecting to smartphone with a USB cable y GPS : Saves the location where you took a photo * NFC : Near Field Communication ** GPS : Global Positioning System using a satellite See “Help”...
  • Page 12: Step 5 Printing Photo

    The Bluetooth searching and transferring may fail depending on its environment. Check the Bluetooth condition on your phone and try again. y If there are more than a LG Pocket Photo device, check MAC address on the label to choose one you want to use.
  • Page 13: Printing Using Nfc ( )

    Bluetooth® y How to read NFC tag : Make smartphone get near to NFC tag on the device. 1. Tagging for the first time, it links to Play Store where you can download LG Pocket Photo App. 2. Go to [Setting] in the App installed, and check [NFC].
  • Page 14: Printing Using Usb Connection ( ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Bluetooth

    Note y If NFC tag is not read, check its position on LG Pocket Photo and smartphone. Then try again. (Depending on the type of smartphone, the position of NFC tag on it may differ.) y If your smartphone case is plated with chrome, NFC is unavailable.
  • Page 15: Setting Lg Pocket Photo Using Usb Connection

    You can check remaining battery, the number of the photos printed, device version, MAC address, and change the setting of print mode, etc. 1. Connect LG Pocket Photo to smartphone using a USB cable. (Unavailable via Bluetooth) 2. Run LG Pocket Photo App on smartphone.
  • Page 16: Checking Label

    Checking Label In case there are more than a LG Pocket Photo device, check MAC address on the product label to choose one you want to use. 1. Open the Paper insert door. 2. Open the Upper cover. 3. You can find the product label.
  • Page 17: About Led Indicator

    About LED indicator The LED indicator ( button) shows the device condition. LED color Condition/Power Description Waiting/ Waits for printing. Device turns itself off if it is left unused for a while. Full charge/ To print, turn on the device. Charging/ To print, turn on the device.
  • Page 18: Specifications

    JPEG (Baseline) / less than 10 MB Image file type/size (Progressive JPEG is not supported.) Media paper used ZINK Photo Paper (exclusive for LG) Temperature : 20 - 25 ℃ Media paper storage environment Humidity : 40 - 55 % RH Temperature : 5 - 40 ℃...
  • Page 19: Troubleshooting

    Troubleshooting Symptom Cause / Solution No power The battery is discharged. Be sure the device is connected to charger or PC properly when charging. Bluetooth paring Switch Bluetooth off and on again on your smartphone, does not work well. then pair with the device in the smartphone’s settings. Turn on the device and try printing (pairing) again in 5 sec.
  • Page 20 221.ASGPLLK_OM_ENG_0663_1115.indd 22 2012-11-15 4:38:08...
