Operating and Mounting Instructions
* Technical changes and misprints reserved.

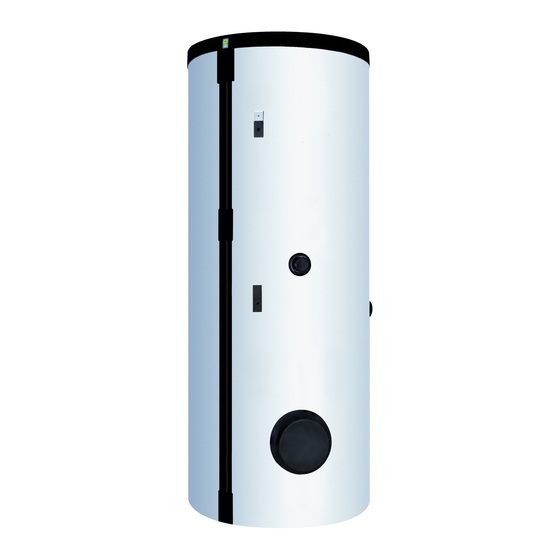

Pressure-proof large storage tank
Multi-purpose free-standing tank
VT-N 800-FFM, VT-N 1000-FFM
VT-S 800-FFM, VT-S 1000-FFM
High-performance free-standing coil tank
VT-N 800-FRM, VT-N 1000-FRM
VT-S 800-FRM, VT-S 1000-FRM
Multi-purpose free-standing coil tank
VT-N 800-FRMR, VT-N 1000-FRMR
VT-S 800-FRMR, VT-S 1000-FRMR
Please pass on to the user
Technology
that makes you
feel good
of the series
Advertisement
Table of Contents
Related Manuals for Austria Email VT-N 800-FFM
Summary of Contents for Austria Email VT-N 800-FFM
- Page 1 Operating and Mounting Instructions Pressure-proof large storage tank of the series Multi-purpose free-standing tank VT-N 800-FFM, VT-N 1000-FFM VT-S 800-FFM, VT-S 1000-FFM High-performance free-standing coil tank VT-N 800-FRM, VT-N 1000-FRM VT-S 800-FRM, VT-S 1000-FRM Multi-purpose free-standing coil tank VT-N 800-FRMR, VT-N 1000-FRMR...
- Page 2 An extraordinarily low consumption of standby energy is ensured by the environmentally friendly ECO Skin insulation. To the benefit of the environment, the ARA licence of Austria Email AG allows you to dispose of you device’s packaging material in a suitab- le manner.
-
Page 3: Table Of Contents
8.2 Series VT-N FRM und FRMR ..................7 8.3 Series VT-S FRM und FRMR ..................8 9. Dimensioned Sketch ......................9 9.1 E free-standing tank VT-N 800-FFM, VT-N 1000-FFM VT-S 800-FFM, VT-S 1000-FFM ................... 9 9.2 Multi-purpose free-standing tank VT-N 800-FRM, VT-N 1000-FRM VT-S 800-FRM, VT-S 1000-FRM.................. -
Page 4: Hot Water Demand
1. Hot Water Demand The hot water demand in a household depends on the number of persons, the sanitary installations of the apartment or the house, and the individual habits of the user. The following table provides a few standard values regarding consumption figures. Hot Water Demand Required tank water quan- in litres... -
Page 5: Service Water Connection
4. Service Water Connection Pressure-proof connection Any warranty for our water heaters shall be rejected in case of use of unsuitable or inoperative tank con- nector fittings as well as any exceedance of the specified operating pressure. All water heaters of the series VT-N are provided with a rating plate bearing the designation 6 bar, those of the series VT-S are designated 10 bar. -
Page 6: Circuit Connection And Screw-Mounted Heating
Performance: operator, plumber Time interval: every 6 months Maintenance and repairs: If no penetration of water occurs during heating of the water heater or in the event of a permanent leak of the safety valve, an attempt must be made to loosen the valve by repeated operation of the airing facility or to rinse out any possible foreign object (e.g. -
Page 7: Corrosion Protection
In the event of any damage, the non-observation of this regulation shall represent an improper use and thus an exclusion of the terms and conditions of warranty. Accessory parts by AUSTRIA EMAIL AG for these multi-purpose free-standing tanks, such as built-in electric heaters series R and series P... -
Page 8: Series Vt-S Frm Und Frmr
A maintenance-free external current anode (accessory) may be installed as follows at the 3/4“ coupling sleeve and at approx. half the boiler height using a reduction union piece at the front. Installation of external current anode 1 Electronic pulse generator 7 Cable connector for anode circuit 2 Mains cable 8 Anode... -
Page 9: Dimensioned Sketch
9. Dimensioned Sketch 9.1 E free-standing tank VT-N 800-FFM, VT-N 1000-FFM VT-S 800-FFM, VT-S 1000-FFM Installati- Dimensions in mm Rated Tipping on depth Type volume height Weight of flange Litres ØD Ød VT-N 800-FFM 2000 1000 1210 1580 1960 VT-S 800-FFM... -
Page 10: Multi-Purpose Free-Standing Tank Vt-N 800-Frm, Vt-N 1000-Frm Vt-S 800-Frm, Vt-S 1000-Frm
9.2 Multi-purpose free-standing tank VT-N 800-FRM, VT-N 1000-FRM, VT-S 800-FRM, VT-S 1000-FRM Dimensions in mm Heating coil Type ØD Ød VT-N 800-FRM 2000 1000 1080 1125 1025 1580 2,00 13,1 33,7 21,0 1960 VT-S 800-FRM 2000 1000 1080 1125 1025 1580 2,76 22,5... -
Page 11: High-Performance Free-Standing Coil Tank Vt-N 800-Frmr, Vt-N 1000-Frmr Vt-S 800-Frmr, Vt-S 1000-Frmr
9.3 High-performance free-standing coil tank VT-N 800-FRMR, VT-N 1000-FRMR, VT-S 800-FRMR, VT-S 1000-FRMR Lower heating Dimensions in mm Top heating coil coil Type ØD Ød VT-N 800-FRMR 800 2000 1000 790 415 1080 1125 120 860 1025 1150 1465 1580 2,00 13,1 33,7 7,8 33,7 9/21 1960 257 VT-S 800-FRMR 800 2000 1000 790... -
Page 12: Temperature Display, Temperature Control For Charge Pumps
10. Temperature Display, Temperature Control for Charge Pumps All devices are provided with two openings for the installation of a temperature display and/or a charge pump control, which are sealed using a rectangular plastic cover in the condition as delivered. After removal of this cover, a capillary thermometer (model ATH) or a combined capillary tube thermometer –... -
Page 13: Check, Maintenance, Care
13. Check, Maintenance, Care a) During heating, the expansion water must drip visibly from the drain of the safety valve (the expan- sion water drips from the valve of the mixing tap in the case of an unpressurised connection). The expansion water quantity is approx. -
Page 14: Warranty And Guarantee
The warranty is granted in accordance with the statutory provisions of the Republic of Austria, as well as of the EU. Prerequisite for the provision of warranty services by Austria Email AG (hereinafter referred to as AE AG) shall be the presen-... - Page 15 10. Claims over and above the warranty, if legally permissible, in particular claims with respect to compensation of damages and consequential damages, shall be excluded. Prorated labour time for repairs as well as the costs of restoring the original condition of the unit must be paid in full by the buyer. In accordance with this warranty declaration, the warranty shall apply only to repair or replacement of the unit.
- Page 16 A-8720 Knittelfeld Telefon: (03512) 700-0 Fax: (03512) 700-239 Internet: www.austria-email.at E-Mail: office@austria-email.at Austria Email in your area? For addresses and telephone numbers of our subsidiaries, visit our homepage at www.austria-email.at Print errors and changes of all kinds are reserved. Reproduction prohibited.
