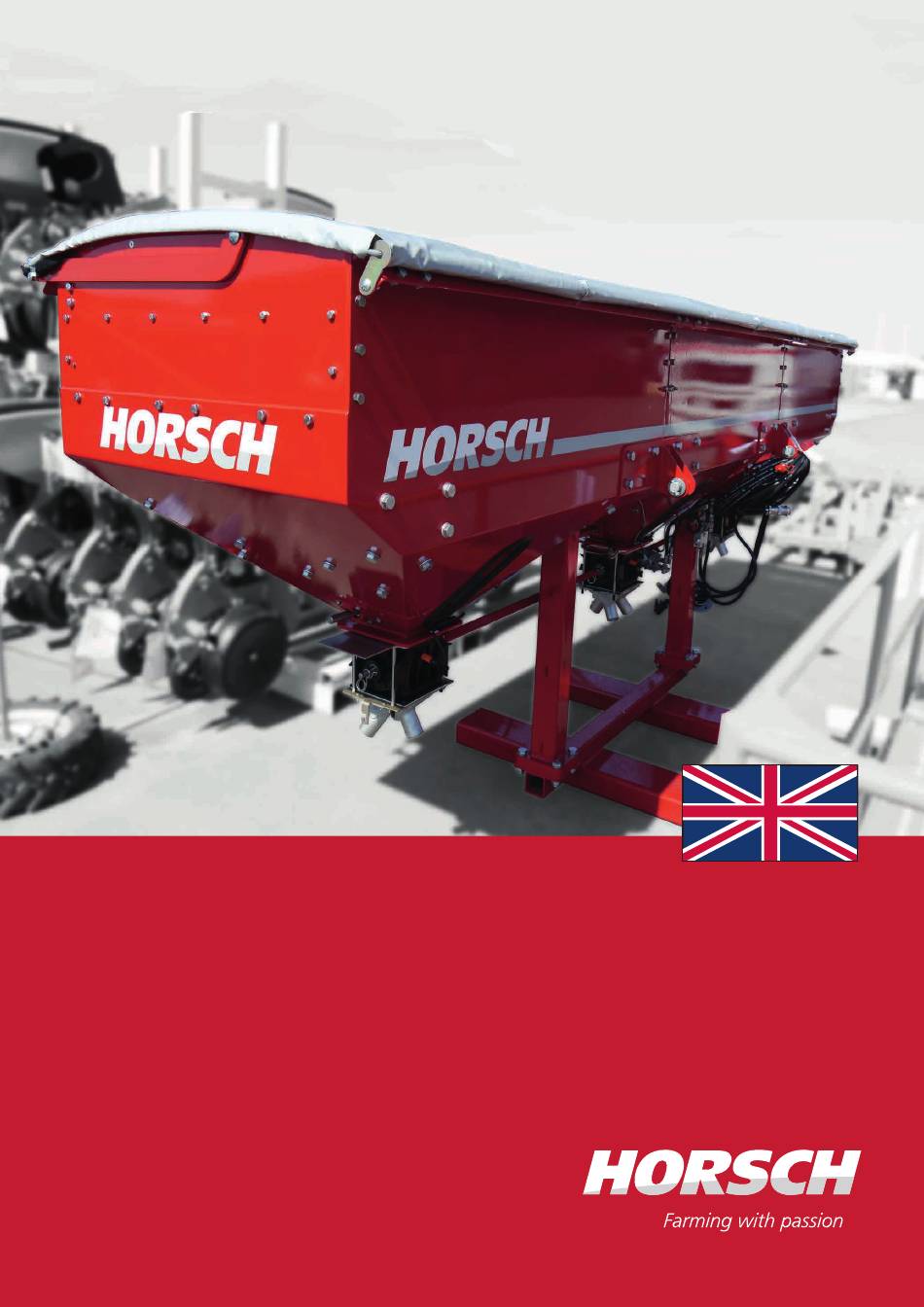

- Page 1 SHORT INSTRUCTIONS FERTILISER ATTACHMENT TIGER 4 MT RIGID READ CAREFULLY PRIOR TO STARTING UP! KEEP OPERATING INSTRUCTIONS IN A SAFE PLACE! ART.: 80580206 ISSUE: 07/2015...
- Page 3 Overview The fertiliser attachment for the Tiger 4 MT rigid A Hopper has a hopper capacity of over 2,500 litres. B Covering C Metering unit, hydraulic The placing quantity is 50 - 500 kg/ha. D Fastening points The three metering units are powered hydrauli-...
-
Page 4: Commissioning / Tractor Change
Commissioning / Tractor Connecting and transport change position During initial commissioning and when chang- ing the tractor, the machine must be adapted DANGER to the tractor. There is a risk that persons may become crushed and severely injured between machine and tractor! WARNING Instruct persons to leave the area between trac-... - Page 5 Parking Fertiliser attachment fastening Park the machine only on a firm and level sur- face. The fertiliser attachment is connected to the frame of the Tiger 4 MT at four points. DANGER There is a risk that persons may become crushed and severely injured between machine and tractor! Instruct persons to leave the area between trac-...
- Page 6 Fertiliser attachment Connecting the inside hopper lighting operation The fertiliser attachment is equipped with inside Calibration hopper lighting. The cables of the three lights (C) are routed toward the outside through the holes (D). Inside hopper lighting Fertiliser attachment with three hydraulic metering units For calibration, close the sliders (C) on the ¾...
- Page 7 Open the four wing screws (D) on the left ¾ metering unit in direction of travel (1). Hook up the calibration bag and start with the ¾ calibration process. Follow the operating instructions for the E-Manager to this end. After the calibration process fasten the lid ¾...
- Page 8 Hydraulics A Pressure reducing valve B Restrictor C Flow control valve D Metering motor, hydraulic The return line must be connected to the pres- sureless return of the tractor to prevent the hydraulic motors from sustaining damage.
- Page 10 All details on technical specifications and pictograms are approximate and for information only. Subject to technical product revisions. HORSCH Maschinen GmbH Tel.: +49 94 31 7143-0 Sitzenhof 1 Fax: +49 94 31 7143-9200 D-92421 Schwandorf E-Mail: info@horsch.com...
