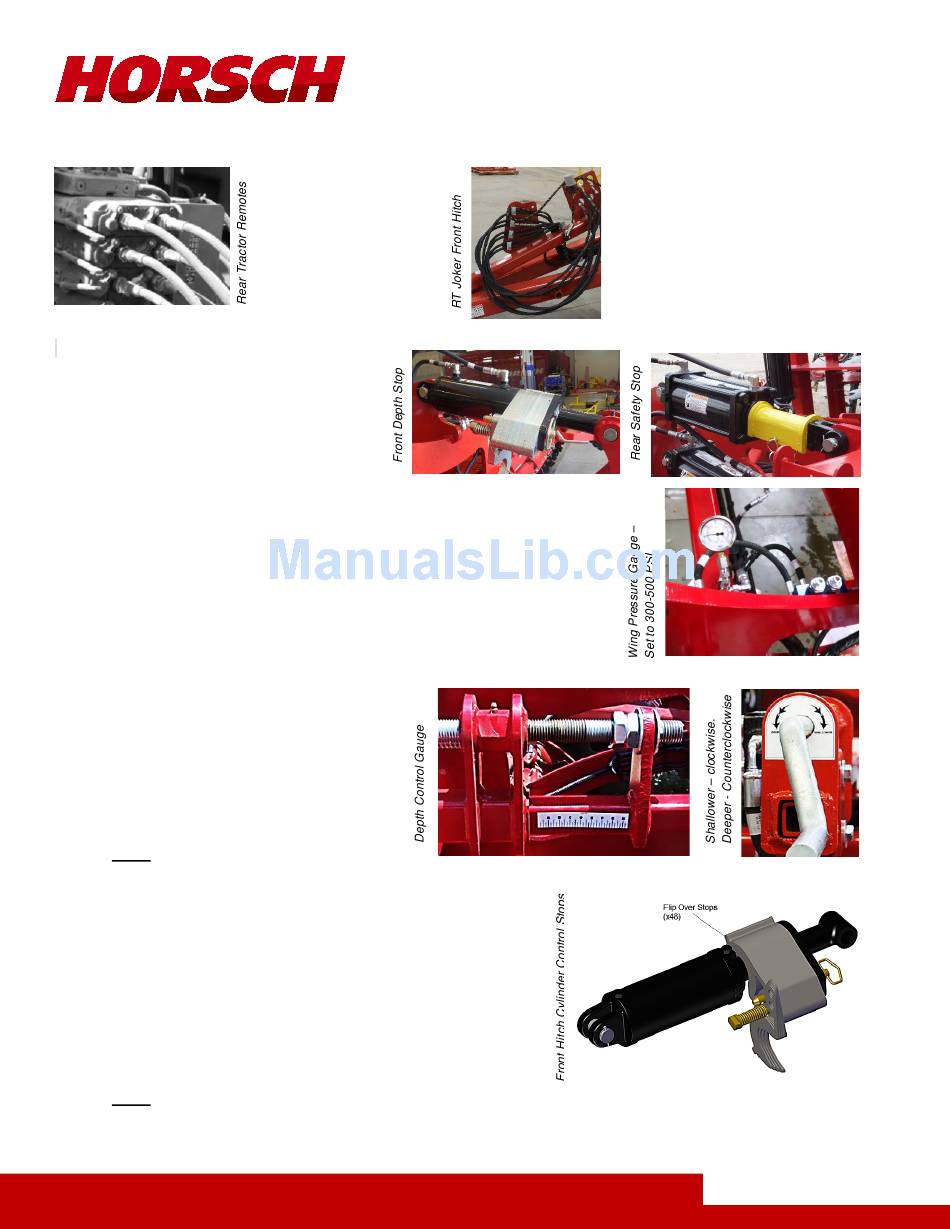

horsch Joker RT Series Quick Reference Manual

Hydraulic Connections:
Entering Field:
1. Unfold wings (3) and put hydraulic remote
in to float position.
2. Fully extend rear packer cylinders (1).
Turn SCV to 100% flow.
3. Raise machine (2) on rear axle.
4. Remove the rear cylinder safety stop and
any necessary front depth stops.
5. Raise rear axle (2) so implement is resting on the packer.
6. Phase the packer cylinders before field operation.
Set Wing Pressure:
1. Set wing pressure by tapping SCV
Typical settings are 0-300 psi for previously tilled/soft ground and 300-500 psi
for untilled/hard ground. If desired pressure is exceeded, place SCV in float
and reset pressure. DO NOT EXCEED 500 PSI!
Depth Setting:
1. Raise outside gauge wheels off the ground to
their highest set points. (The gauge wheels
need to be lifted so they do not interfere with
correctly setting the depth control.)
'Gauge Wheel Setting' below.
2. For shallower working depth, turn the handle
clockwise.
3. For deeper working depth, turn the handle
counterclockwise.
NOTE: The machine will also need to be
leveled by either adding, or removing stops to
the front hitch hydraulic cylinder.
Leveling:
1. To raise front rank of the machine, add front hitch cylinder stops.
2. To lower front rank of the machine, remove front hitch cylinder stops.
Tracking:
1. If machine is tracking to the right, add more stops to the front hitch
cylinder.
2. If machine is tracking to the left, remove stops from the front hitch
cylinder.
NOTE: Add or remove stops to the front hitch cylinder until the
machine tracks straight.
Quick Reference Guide – RT-Next GEN Joker_Manual Ver.1.0 04/2015
Quick Reference Guide: RT-Next GEN Joker
(1) LIFT – Green
(2) REAR AXLE – Blue
(3) FOLD – Yellow
(3) until gauge reads desired pressure.
