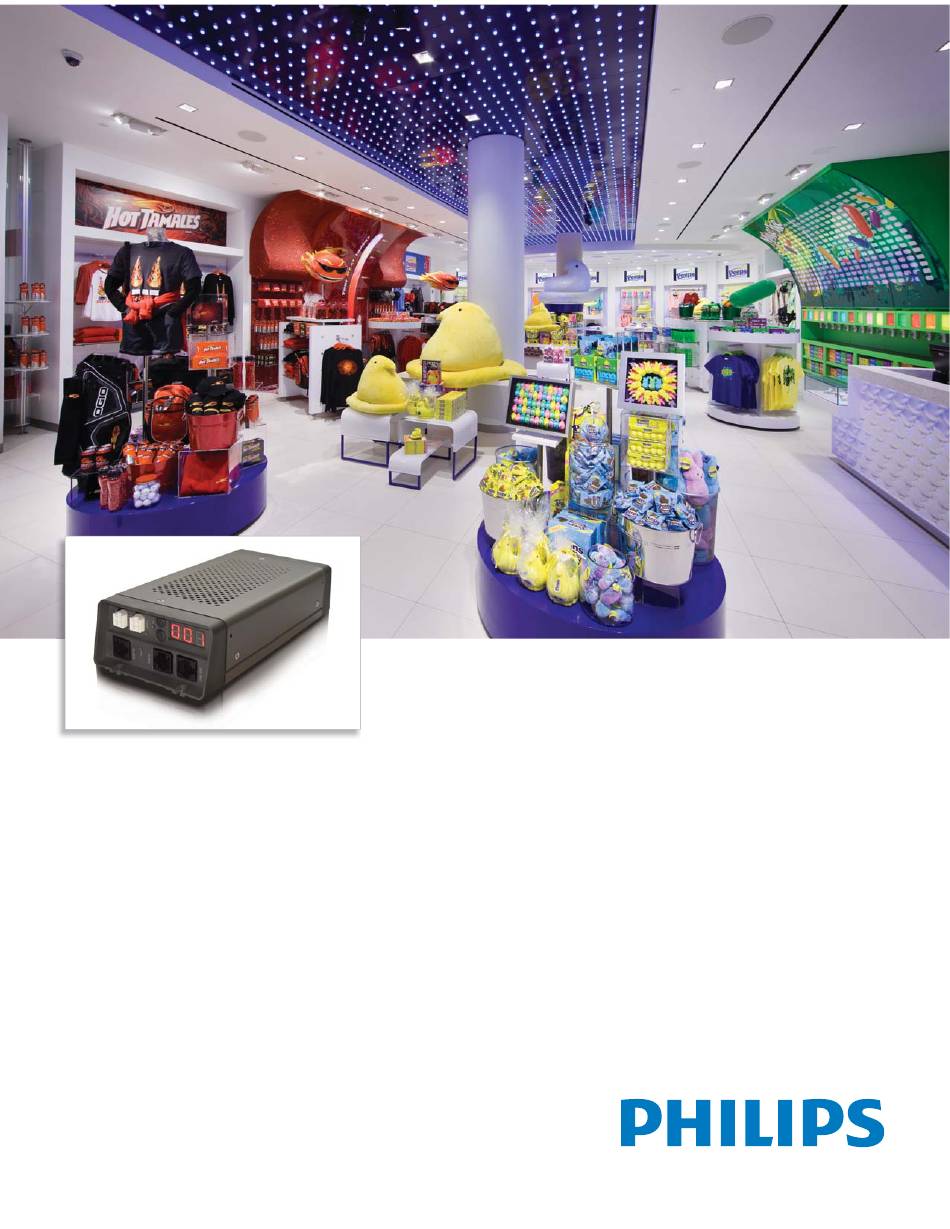

- Page 1 Compact power / data supply for low-voltage linear fi xtures...
- Page 2 Compact power / data supply for low-voltage linear fi xtures sPDS-60ca 24 V is a compact power / data supply designed for up to 30 low-voltage linear fixtures from Philips Color Kinetics. sPDS-60ca 24 V is compatible with both...
-
Page 3: Included In The Box
Included in the box and Safety Environment Dry Location, IP20 * KiNET is the Ethernet lighting protocol from Philips Color Kinetics. sPDS-60ca 24 V power / data supply (2) White clamp-on EMI suppression cores Black clamp-on EMI suppression cores Ordering Information... -
Page 4: Plan The Installation
Installation sPDS-60ca is a power / data supply designed for low-voltage linear DMX and Ethernet lighting installations. sPDS-60ca uses up to 30 low-voltage fixtures from Philips Color Kinetics and delivers 62 watts of low-voltage output via two ports. It automatically accommodates input voltages ranging from 100 VAC to 240 VAC. - Page 5 Cove QLX 12 in 20 fi xtures fi xtures. Each sPDS-60ca uses standard line power via an IEC inlet and power cable. You can secure the device’s power cable using a locking clamp attached to the Included in the box housing.
- Page 6 Mount the sPDS-60ca Make sure the sPDS-60ca device is powered OFF before mounting and connecting. A Make sure that there is adequate power screwdriver is recommended. space to make all connections to the front and rear of the device. Also, the vents at Position the sPDS-60ca device in its designated mounting location.
- Page 7 DMX IN port on the sPDS-60ca. To add a second power / data supply to your DMX network, connect an RJ45 cable from the sPDS-60ca device’s DMX OUT port to the DMX IN port on the second sPDS-60ca device.
- Page 8 Addressing and Confi guration Guide, available at www.colorkinetics.com/support/ addressing/ Using the On-Board Menu The sPDS-60ca has two buttons and a three-digit display that allow you to discover and address connected nodes in a DMX network. (When connected to an Ethernet network, the on-board menu is disabled.)
- Page 9 25 connected iColor Cove EC fixtures. To ensure that each node receives a unique light address, assign base light number 1 to the first sPDS-60ca, base light number 26 to Make sure that the base light number the next device, and base light number 51 to the third.
- Page 10 1, picks up at port 2, and continues to the end of the series of nodes connected to port 2. iColor Cove QLX iColor Cove QLX sPDS-60ca 24V sPDS-60ca 24V Group setting is +01 Group setting is -02...
- Page 11 Product Guide...
- Page 12 DIMand, EssentialWhite, eW, iColor, iColor Cove, IntelliWhite, iW, iPlayer, Optibin, and Powercore Tel 888.385.5742 are either registered trademarks or trademarks of Philips Solid-State Lighting Solutions, Inc. in the United States and / or other countries. All other brand or product names are trademarks Tel 617.423.9999...
