Summary of Contents for Arizona Shower Door FD-NEO
- Page 2 Arizona Corporate Office Florida Utah Colorado Illinois Oregon 2801 W. Indian School Rd 8100-1 Westside Industrial Dr 2594 S. 3600 West Suite A 3871 Revere Street 2601 Bond St #1 2057 Lars Way Phoenix, AZ 85017 Jacksonville, FL 32219 West Valley City, UT 84119 Denver, CO 80239 University Park, IL 60484 Medford.

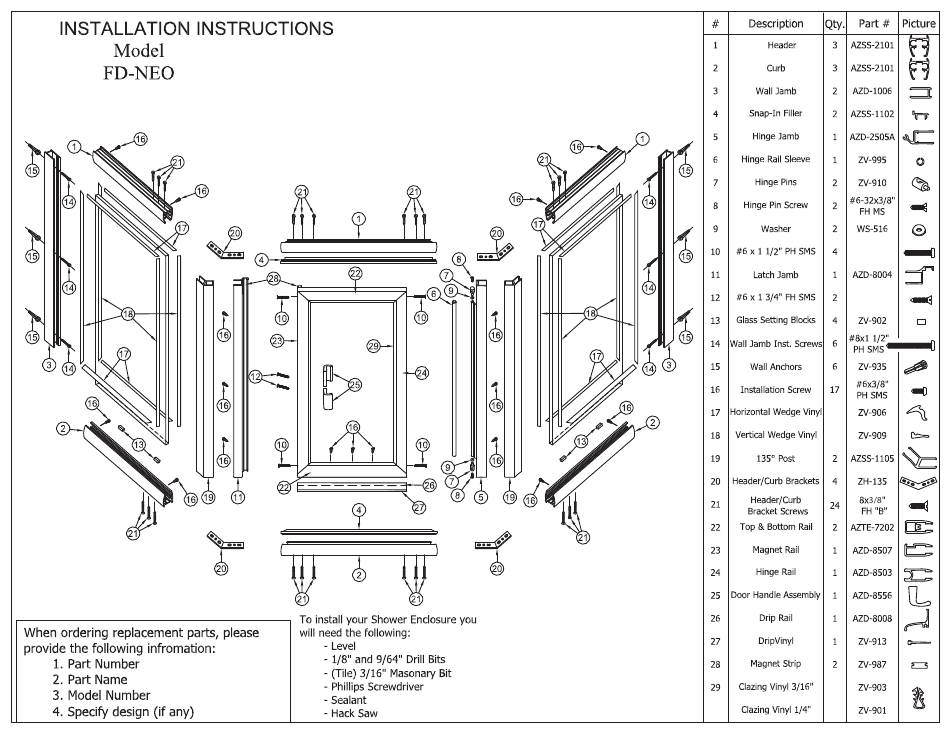

- Page 3 Installation Instructions Model FD-NEO Note: These instructions will refer to the item #’s in the Exploded View drawing. For example, #1, #2, #3 etc… Please read through all of the instructions to get an over‐view before you install the shower door. The curb is pre‐cut using the centerline measurements that were given at the time of ...
- Page 4 2) Place a Wall Jamb ZD‐1006 (#3) against the wall and down into the Curb. Use a level to po‐ sition the jamb plumb, then mark the installa‐ tion holes with a pen or pencil . Repeat this procedure for the other jamb. Now drill the 6 holes with a 3/16” masonry bit (9/64” for fiber‐ ...
- Page 5 Assemble the three pieces of Header on the floor (like previously on the Curb) using the ZH135 135 degree Header Bracket (#20) and the #8X1/4” Header Curb Bracket Screws (#21). As the headers are lying open end down, place the ZH135 clips onto the corners and align the mi‐ ters, Header Bracket, and holes. Fasten the cor‐ ners together with the #8x1/4” screws (refer to ...
- Page 6 6) Now you need to cut the Snap In Fillers: ZSS‐ 1102 (#4). Measure from edge to edge of the ZSS‐1105 corner posts inside the door opening. Cut the fillers to these dimensions. Snap the fillers into the ZSS‐2101’s top and bottom. There is a small lip on the filler. This faces to the outside of the unit . ...
- Page 7 Attach the ZD‐8008 Drip Rail (#24) to the inside bottom door rail. From the inside of the shower. peel off the protective paper from the adhesive. Position the drip rail 1/2” from the edge (handle side) of the door while maintain‐ ing approximately a 1/16” gap from the ZSS‐ 1102 and the vinyl sweep. Press on then secure ...
