- Page 2 Arizona Corporate Office Florida Utah Colorado Illinois Oregon 2801 W. Indian School Rd 8100-1 Westside Industrial Dr 2594 S. 3600 West Suite A 3871 Revere Street 2601 Bond St #1 2057 Lars Way Phoenix, AZ 85017 Jacksonville, FL 32219 West Valley City, UT 84119 Denver, CO 80239 University Park, IL 60484 Medford.

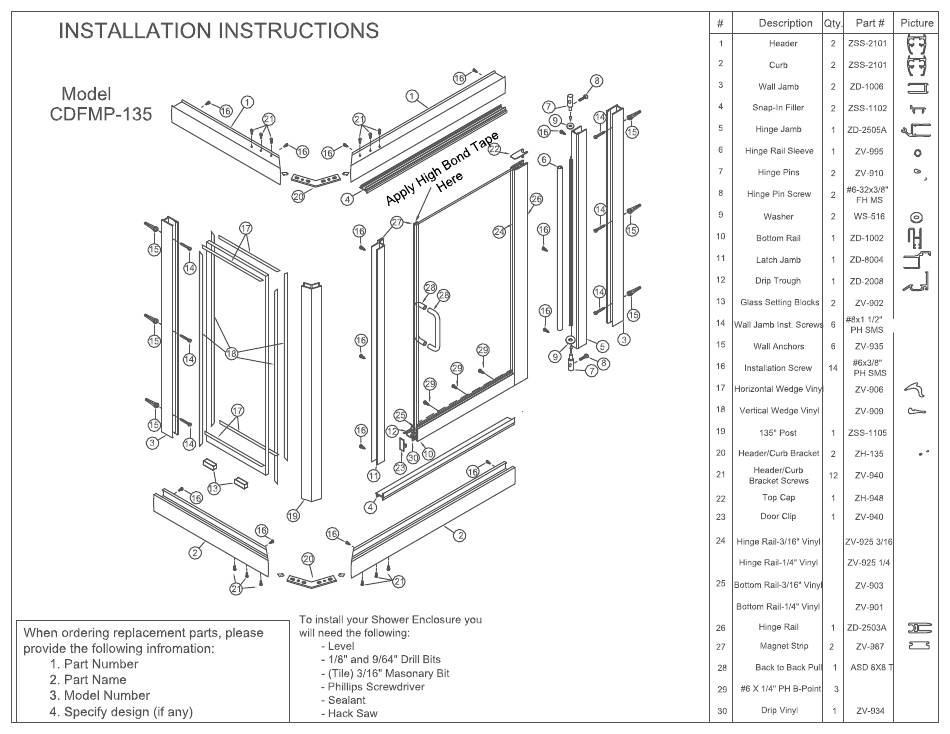

- Page 3 Installation Instructions for Model CDFMP-135 Note: These instructions will refer to the item #’s in the Exploded View drawing. For example, #1, #2, #3 etc… Please read through all of the instructions to get an over-view before you install the shower door.
- Page 4 screws and then place the assembled Curb in the position laid out on the shower curb corres- ponding to the marks that you made. Make sure to fill the corners where the screws were in- serted and the ends with silicone so as to seal any gaps that might leak but do this after the wall jams are installed Place a Wall Jamb ZD-1006 (#3) against the...
- Page 5 Assemble the Header on the floor (like pre- viously on the Curb) using the ZH135 135 de- gree Header Bracket (#20) and the #8X1/4” Header Curb Bracket Screws (#21). As the head- ers are lying open end down, place the ZH135 Bracket onto the corner and align the miters, corner bracket, and holes.
- Page 6 Hinge Jamb (#5) over the hinge side post or jamb. Do not fasten the door at this point Inspect and fit the magnetic strip to figure out the side that will attract and not repel. In- stall the side that repels against the high bond tape that you will install.
- Page 7 tom screw. Tighten the stud head screws down with a screwdriver (not a drill). This pull will be on the inside of the door. Place the remaining pull, with the large holes and set screw, onto the stud heads of the screws. Tighten the set screws with Allen wrench provided Adjust ZD-2008 Drip Trough (#12) on door to slope towards the hinge...
