Summary of Contents for Arizona Shower Door Tycson Series

  • Page 2 Arizona Corporate Office Florida Utah Colorado Illinois Oregon 2801 W. Indian School Rd 8100-1 Westside Industrial Dr 2594 S. 3600 West Suite A 3871 Revere Street 2601 Bond St #1 2057 Lars Way Phoenix, AZ 85017 Jacksonville, FL 32219 West Valley City, UT 84119 Denver, CO 80239 University Park, IL 60484 Medford.

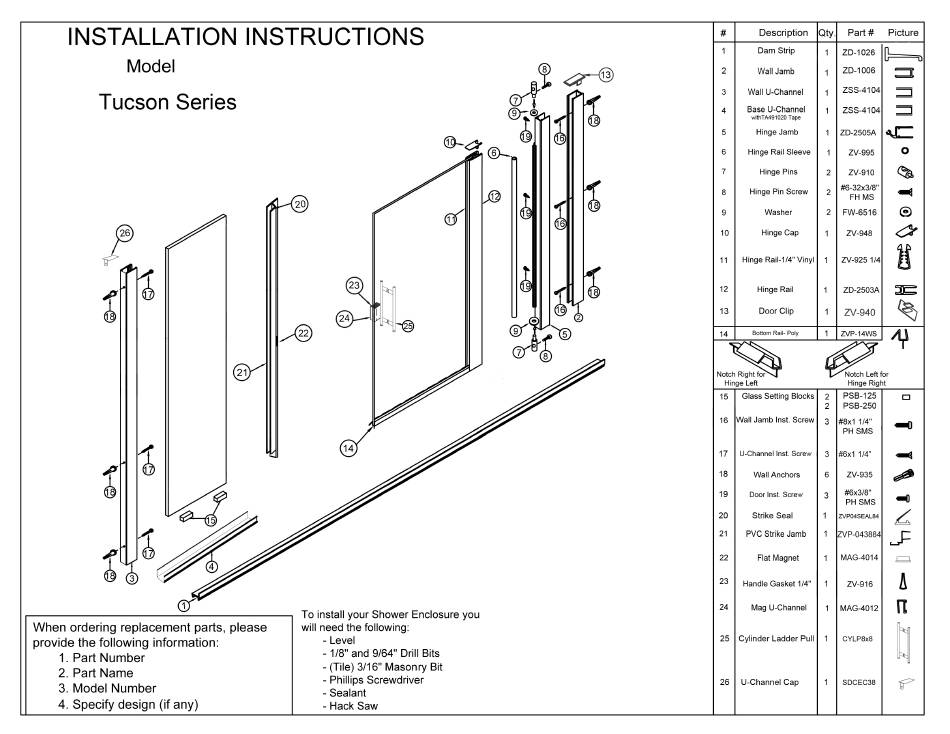

  • Page 3       Installation Instructions             Model - Tucson         Note:  These instructions will refer to the item #’s in the Exploded View drawing. For example, #1, #2, #3 etc…    Please read through all of the instructions to get an over‐view before you install the shower door.          1)  Installing  Dam  Strip  and  Wall  Jamb.       Find  the  centerline  of  where  the  unit  will  be   ...
  • Page 4           2)  Cutting and Installing the ZSS4104 Base    U‐Channel (#4) and Wall U‐Channel (#3).    (#3) Wall Channel Size = Fixed Panel Height –7/16” Note: The base channel comes with a pre‐     applied adhesive tape.  (#4) Base Channel Size = Fixed Panel Height +5/16”    Measure  the  size  of  the  fixed  panel  glass.    With  these  measurements,  determine  the  Note: The base channel will be installed tight to the wall and the    lengths of the ZSS4104 U‐channels by using    wall channel will sit on top of the base channel.   the guidelines on the right. After cutting the    channel  to  the  proper  lengths,  remove  the   ...
  • Page 5       3)  Setting  the  fixed  panel.  Once  the  base    and  wall  u‐channel  are  installed,  place  two    setting  blocks  PSB125/PSB250  (#15)  inside    the  base  channel.  Place  the  fixed  panel    glass inside the u‐channel aligning the panel    flush  with  the  open  side  of  the  base  chan‐  ...
  • Page 6       5)  Attaching  the  Door.  Slide  the  ZD2505A    (#3) hinge jamb over the ZD1006 wall jamb.  Do    not fasten the door at this point.  Please note:     It  will  be  helpful  to  have  an  assistant  at  this    point to adjust and hold the door in place from    the outside while you drill and fasten the hinge    jamb from the inside.   Square up  the  door and  align the edge of the door glass parallel with the    strike  jamb,  leaving  a  1/8”  gap  between  the   ...
  • Page 7       Next,  attach  the  magnet  catch  MAG4012  (#24)  by  placing  ZV916  (#23)  vinyl  over  the  edge  of  the glass then tapping catch over the gasket and  onto the glass with a rubber mallet aligning it to  the magnet on the strike jamb.    7)  Installing  optional  Finish  Caps.  Place a small amount silicone on the legs of  the  ZV940  Door  Clip  (#13)  and  place  it  down into the top of the ZD1006 to cap the  opening.  You  may  have  to  trim  them  to  fit  with ...
