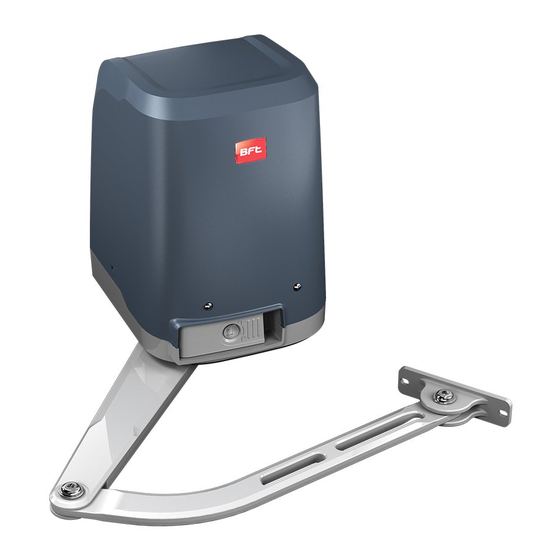

AUTOMAZIONI A BRACCIO PER CANCELLI A BATTENTE
ARM AUTOMATIONS FOR SWING GATES
AUTOMATIONS A BRAS POUR PORTAILS BATTANTS
ARM AUTOMATIONEN FUER FLUGELGITTERTIRE
AUTOMATIZACIONES A BRAZO PARA PORTONES CON BATIENTE
AUTOMATIZAÇÕES DE BRAÇO PARA PORTÕES DE BATENTE
Attenzione! Leggere attentamente le "Avvertenze" all'interno! Caution! Read "Warnings" inside carefully! Attention! Veuillez lire attentivement les Avertissements qui se trouvent à l'intérieur!
Achtung! Bitte lesen Sie aufmerksam die „Hinweise" im Inneren! ¡Atención¡ Leer atentamente las "Advertencias" en el interior! Atenção! Ler atentamente as "Instruções " que se encontram no interior!
Advertisement
Table of Contents
Related Manuals for BFT VIRGO SMART BT A
Summary of Contents for BFT VIRGO SMART BT A

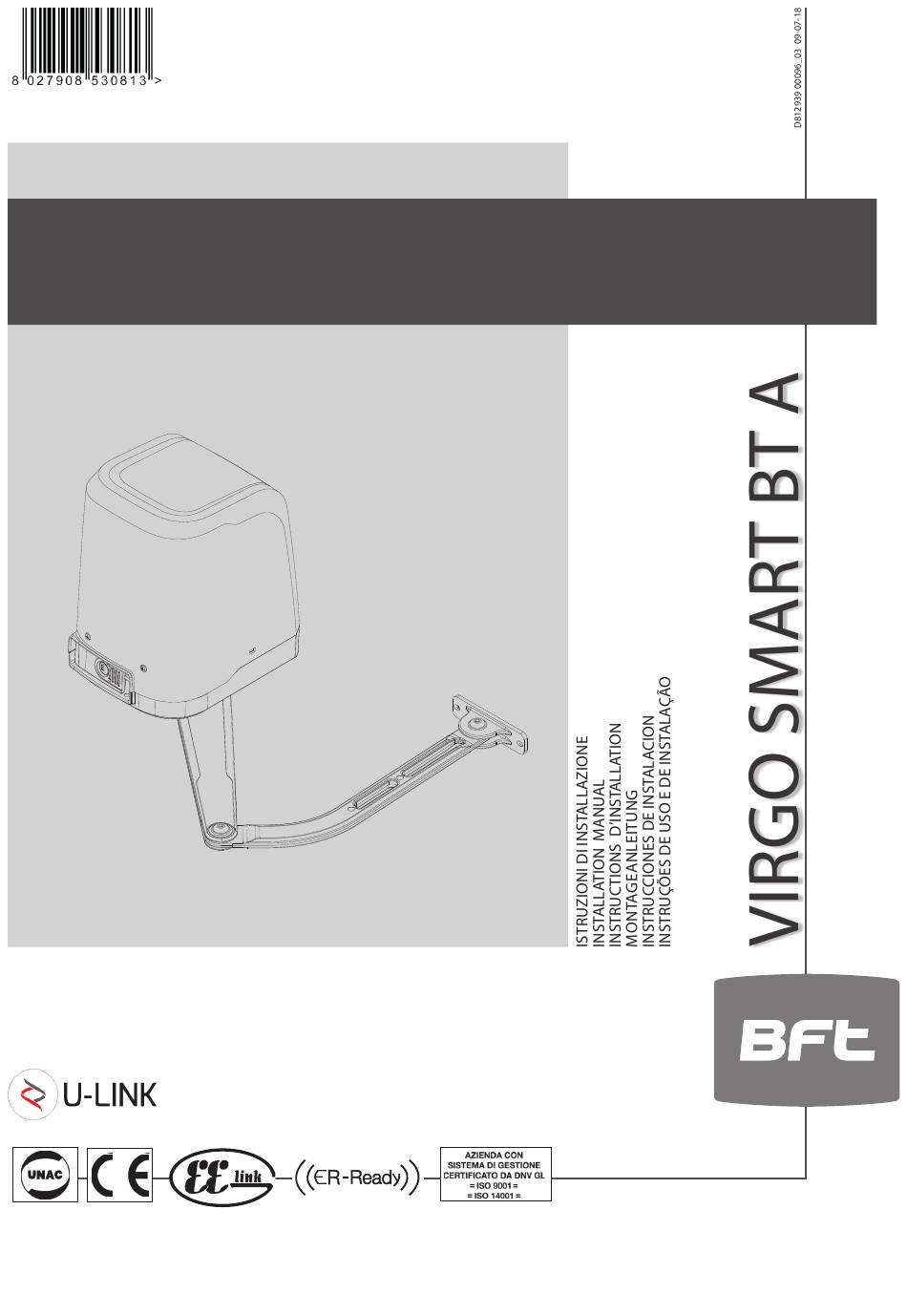

- Page 1 AUTOMAZIONI A BRACCIO PER CANCELLI A BATTENTE ARM AUTOMATIONS FOR SWING GATES AUTOMATIONS A BRAS POUR PORTAILS BATTANTS ARM AUTOMATIONEN FUER FLUGELGITTERTIRE AUTOMATIZACIONES A BRAZO PARA PORTONES CON BATIENTE AUTOMATIZAÇÕES DE BRAÇO PARA PORTÕES DE BATENTE Attenzione! Leggere attentamente le “Avvertenze” all’interno! Caution! Read “Warnings” inside carefully! Attention! Veuillez lire attentivement les Avertissements qui se trouvent à l’intérieur! Achtung! Bitte lesen Sie aufmerksam die „Hinweise“...
- Page 2 (operated part), such as cables, springs, supports, hinges, guides…, may generate a hazard. Have the system checked by qualified, expert per- sonnel (professional installer) at regular intervals according to the instructions issued by the installer or manufacturer of the door. D811767_09 VIRGO SMART BT A...
- Page 3 MANUALE D’USO: MANOVRA DI EMERGENZA / USER GUIDE: EMERGENCY OPERATION MANUEL D’UTILISATION: DE LA MANOEUVRE D’URGENCE / BEDIENUNGSHANDBUCH: NOTFALLMANÖVER MANUAL DE USO: MANIOBRA DE EMERGENCIA / MANUAL DE USO-MANOBRA DE EMERGÊNCIA FIG. 1 (180°) - VIRGO SMART BT A...
- Page 4 D811766_17 - VIRGO SMART BT A...
- Page 5 INSTALLAZIONE VELOCE-QUICK INSTALLATION-INSTALLATION RAPIDE SCHNELLINSTALLATION-INSTALACIÓN RÁPIDA - INSTALAÇÃO RÁPIDA Ø 20 - 15 VIRGO SMART BT A...
- Page 6 100° 102° 90° 90° 92° 95° 97° 100° 100° 90° 90° 92° 95° 97° 100° 90° 90° 92° 95° 97° 90° 90° 92° 95° 90° 90° 92° 95° 128.5 90° 90° 92° 90° 90° 90° - VIRGO SMART BT A...
- Page 7 25 MAX Non in dotazione Not supplied Ne sont pas fournis Nicht im lieferum No asignadas en el equipamiento base Não fornecidas oder MAX M10 MAX L=25 mm - 17 VIRGO SMART BT A...
- Page 8 Ne sont pas fournis Nicht im lieferum No asignadas en el equipamiento base Não fornecidas MAX M6 Non in dotazione Not supplied Ne sont pas fournis Nicht im lieferum No asignadas en el equipamiento base Não fornecidas - VIRGO SMART BT A...
- Page 9 Not supplied 90° Ne sont pas fournis FECHADURA ELÉTRICA Nicht im lieferum recomendada por razões de segurança 1010 No asignadas en el 1030 FECHADURA ELÉTRICA equipamiento base 1050 recomendada por razões de segurança Não fornecidas - 19 VIRGO SMART BT A...
- Page 10 Max. Zyklus - Ciclo máximo - Ciclo máximo VIRGO SMART BT A (3 fili - 3 wires - 3 fils - 3 Drähte - 3 cables - 3 fios) VIRGO SMART BT A (5 fili - 5 wires - 5 fils - 5 Drähte - 5 cables - 5 fios)
- Page 11 (SX) (DX) M1= VIRGO SMART BT A / M2= VIRGO SMART BT A SQ inv.direz. ap / open in other direct. / inv.sens.ouv inv.direz. ap / open in other direct. / inv.sens.ouv = 1 (ext) = 0 (int) inv richt offnung / inv.direcc.ap./ Inversão direcção de abertura : inv richt offnung / inv.direcc.ap./ Inversão direcção de abertura:...
- Page 12 Sc : semiautomatic operation, commercial Ind : dead man operation MIN 1 - MAX 3 autoset AUTO CLOSE AUTO OPEN ..release hidden button O 01 mem. r emotes desidered button - 23 VIRGO SMART BT A...
- Page 13 Max. Anzahl der überprüften Geräte: 6 (jedoch nicht mehr als 4 je Typ), Número máximo dispositivos comprobados: 6 (pero no más de 4 por tipo), Num. máx. dispositivos verificados: 6 (não mais de 4 por tipo), - VIRGO SMART BT A...
- Page 14 PROGRAMMATEUR DE POCHE UNIVERSEL UNIVERSELLEN PALMTOP-PROGRAMMIERER PROGRAMADOR DE BOLSILLO UNIVERSAL CONECTOR PROGRAMADOR PALMAR SCHEDA DI ESPANSIONE EXPANSION BOARD CARTE D’EXPANSION ERWEITERUNGSKARTE TARJETA DE EXPANSIÓN CONECTOR DE EXPANSÃO <3s 70 71 8888 rst8 STOP 8888 - 29 VIRGO SMART BT A...
- Page 15 Error in setting the SAFE inputs Check the setting of the SAFE inputs is correct ERf3 *X= 0, 1, .., 9, A, B, C, D, E, F 0--- 10-- 150- 1520 password - VIRGO SMART BT A...
- Page 16 Use screws and expansion plugs adequate for the type of pillar. In the case where ATTENTION! The VIRGO SMART BT A model controller is not equipped with the pillar surface is irregular, use expansion plugs with studs, in order to be able mechanical torque adjustment.
- Page 17 Refer to the “Command input configuration” table. Configurable command input 2 (N.O.) - Default PED. IC 2 START E / START I / OPEN / CLOSE / PED / TIMER / TIMER PED Refer to the “Command input configuration” table. - VIRGO SMART BT A...
- Page 18 The operation while closing causes the movement to be reversed for 2 seconds, the operation while opening causes the automation to stop. (*) If “D” type devices are installed (as defined by EN12453), connect in unverified mode, foresee mandatory maintenance at least every six months. - 43 VIRGO SMART BT A...
- Page 19 CL. D IST. S LOUD during closing [%] ATTENTION: with actuators with integrated locks, the permanently active slowdown to a value higher than 5 is mandatory. WARNING: in GIUNO, the slow-down distance is set with the sliding sensors - VIRGO SMART BT A...
- Page 20 KUSTOS BT A - PHOBOS BT A - Do not use GIUNO ULTRA BT A 20 - GIUNO ULTRA BT A50 - Do not use VIRGO SMART BT A - 5 wires VIRGO SMART BT A - 3 wires Logic not enabled...
- Page 21 IC 1 command input IC 1. Input configured as Open. Input configured as Close. Input configured as Ped. Configuration of IC 2 command input IC 2. Input configured as Timer. Input configured as Timer Pedestrian. - VIRGO SMART BT A...
- Page 22 (Identifies how board is configured in a BFT Standard MASTER: board sends activation commands (START, OPEN, CLOSE, PED, STOP) to other boards. network connection). Identifies board address from 0 to 119 in a local BFT network connection. [ ___ ] Address ADDRESS (see U-LINK OPTIONAL MODULES section) Input configured as Start E command.
- Page 23 ON = Enables remote programming of cards via a previously memorized W LINK transmitter. It remains enabled for 3 minutes from the time the W LINK transmitter is last pressed. OFF= W LINK programming disabled. - VIRGO SMART BT A...
