DESCRIPTION

Follow these instructions for mounting the 17A00-9 into the Leviton Structured Media Center, UStec tecCenter, Open House Service Center and the Siemon Command Center
Enclosures. See the Installation Manual for wiring, programming and other important information.

INSTALLATION INTO THE LEVITON STRUCTURED MEDIA CENTER ENCLOSURE

1.
Insert a plastic grommet into the four holes of the mounting bracket marked "A". Insert one of the plastic plungers into each of the grommets.
2.
3.
4.

INSTALLATION INTO THE UStec tecCenter

5.
Locate the holes in the UStec tecCenter labeled "A" in the figure below. Start an 8-32 x 1/4" self tapping screw in each.
6.
7.
1.800.561.8187
MOUNTING THE 17A00-9 INTO
THE LEVITON STRUCTURED MEDIA CENTER
Cat. No. 17A00-9
Installation Instructions and User's Guide
INSTALLATION
www.
WARNINGS AND CAUTIONS
disconnected at the network interface.
components.
MOUNTING
BRACKET
information@itm.com
.com
PK-93401-10-B0-0A
PLUNGER
GROMMET
PCA
AR2253
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 17A00-9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leviton 17A00-9

Summary of Contents for Leviton 17A00-9

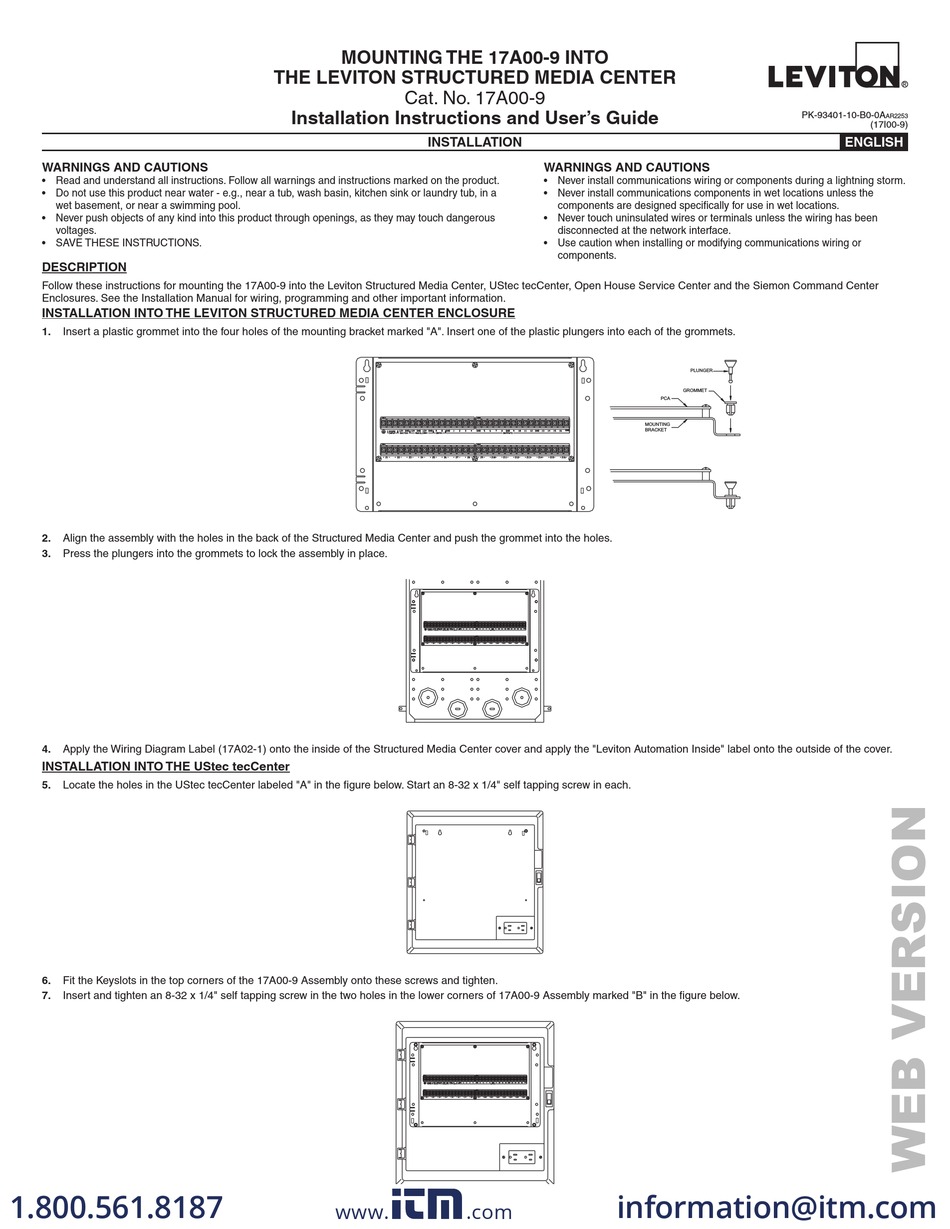

  • Page 1 DESCRIPTION Follow these instructions for mounting the 17A00-9 into the Leviton Structured Media Center, UStec tecCenter, Open House Service Center and the Siemon Command Center Enclosures. See the Installation Manual for wiring, programming and other important information. INSTALLATION INTO THE LEVITON STRUCTURED MEDIA CENTER ENCLOSURE Insert a plastic grommet into the four holes of the mounting bracket marked "A".
