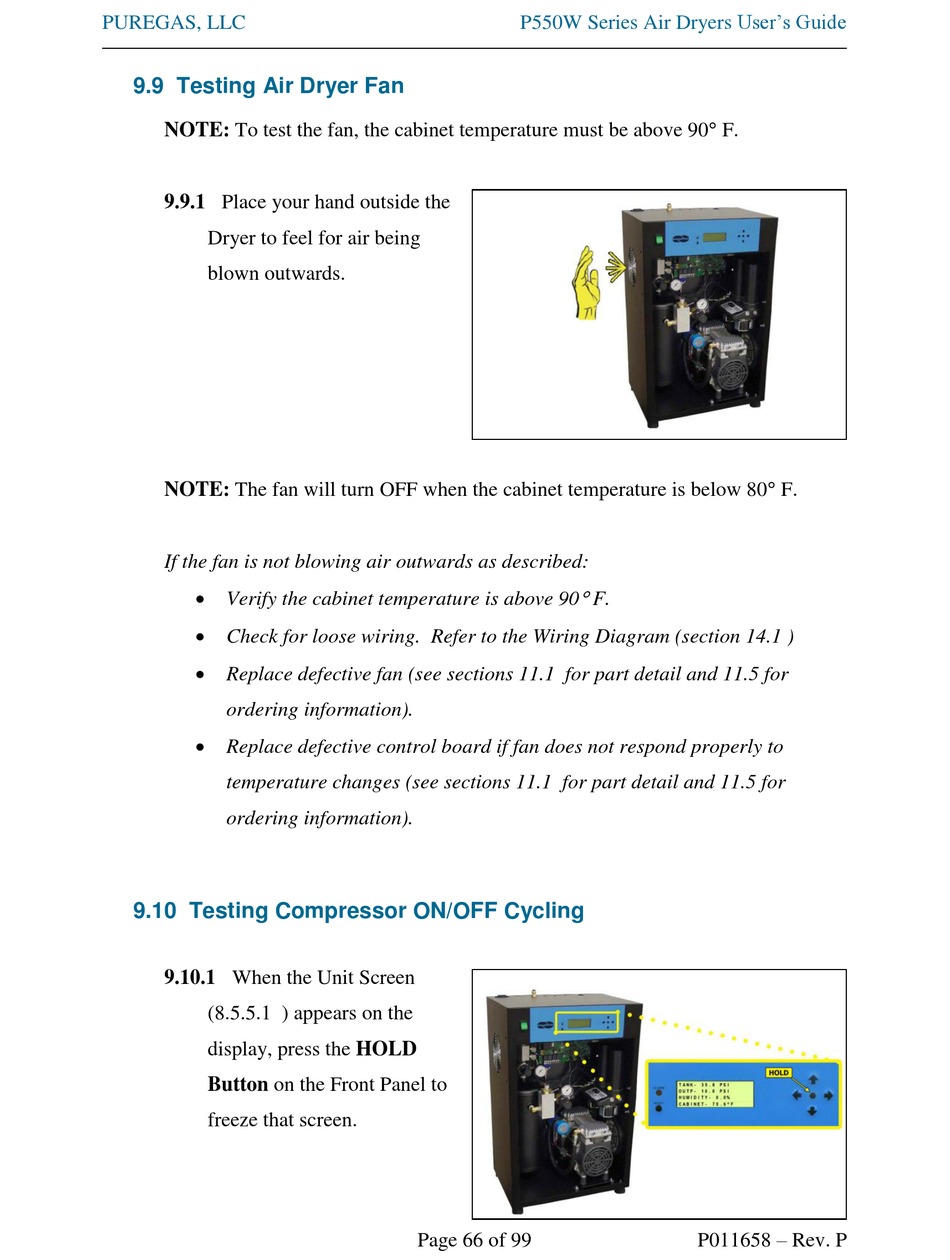

9.9 Testing Air Dryer Fan

NOTE: To test the fan, the cabinet temperature must be above 90 F.
9.9.1 Place your hand outside the
Dryer to feel for air being
blown outwards.
NOTE: The fan will turn OFF when the cabinet temperature is below 80 F.
If the fan is not blowing air outwards as described:
• Verify the cabinet temperature is above 90
• Check for loose wiring. Refer to the Wiring Diagram (section 14.1 )
• Replace defective fan (see sections 11.1 for part detail and 11.5 for
ordering information).
• Replace defective control board if fan does not respond properly to
temperature changes (see sections 11.1 for part detail and 11.5 for
ordering information).

9.10 Testing Compressor ON/OFF Cycling

9.10.1 When the Unit Screen
(8.5.5.1 ) appears on the
display, press the HOLD
Button on the Front Panel to
freeze that screen.
