8.13 Connecting to Power Fail Alarm Terminals

8.13.1 Open Panel (see section 8.8 ).
8.13.2 Locate the external Power
Fail pins on the Control
Board.

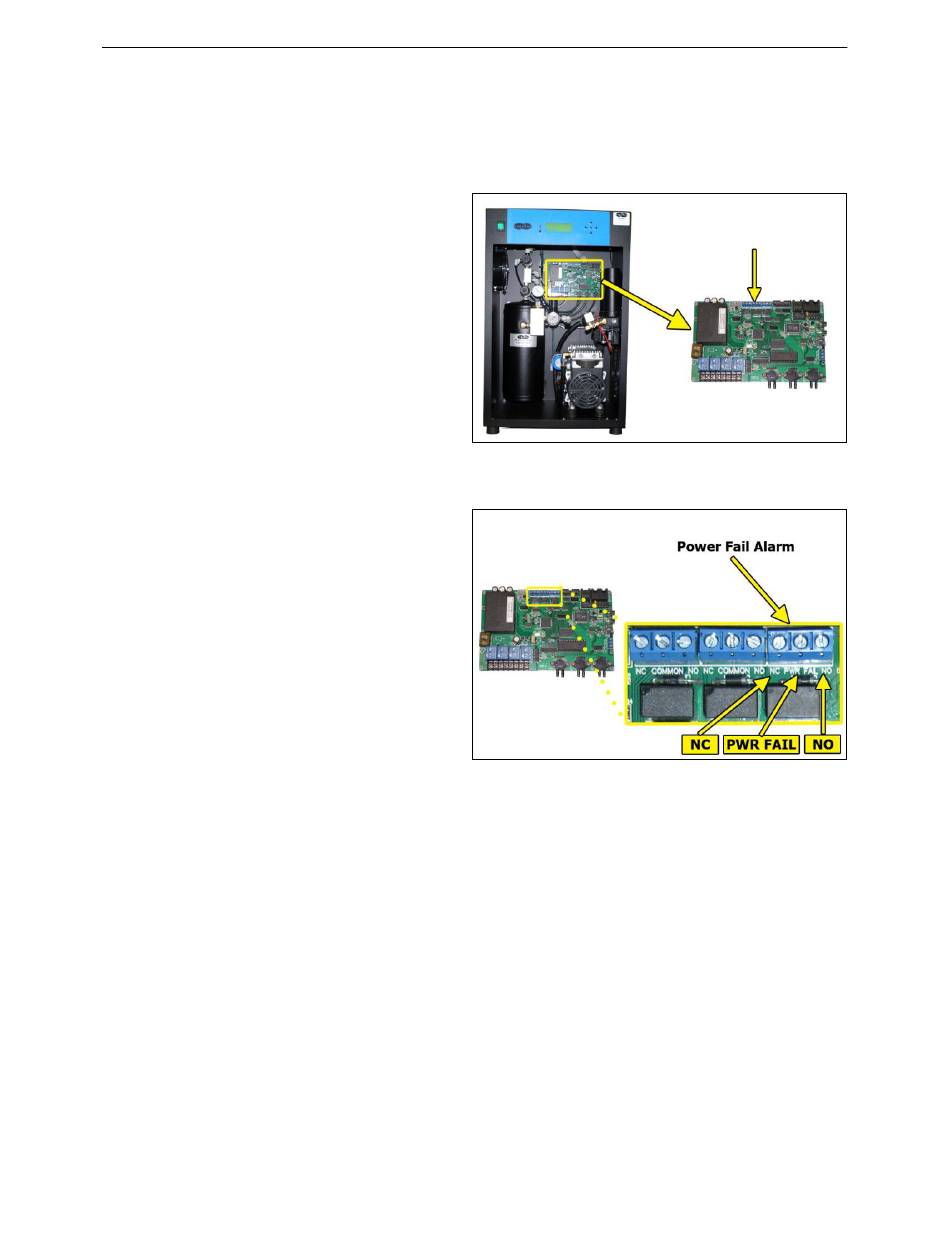

8.13.3 Wire the Power Fail
Alarm wire pair to the
Control Board as required:
• PWR FAIL & NO for
CLOSE ON ALARM
operation.
• NC & PWR FAIL for
OPEN ON ALARM operation
8.13.4 Close Panel.
