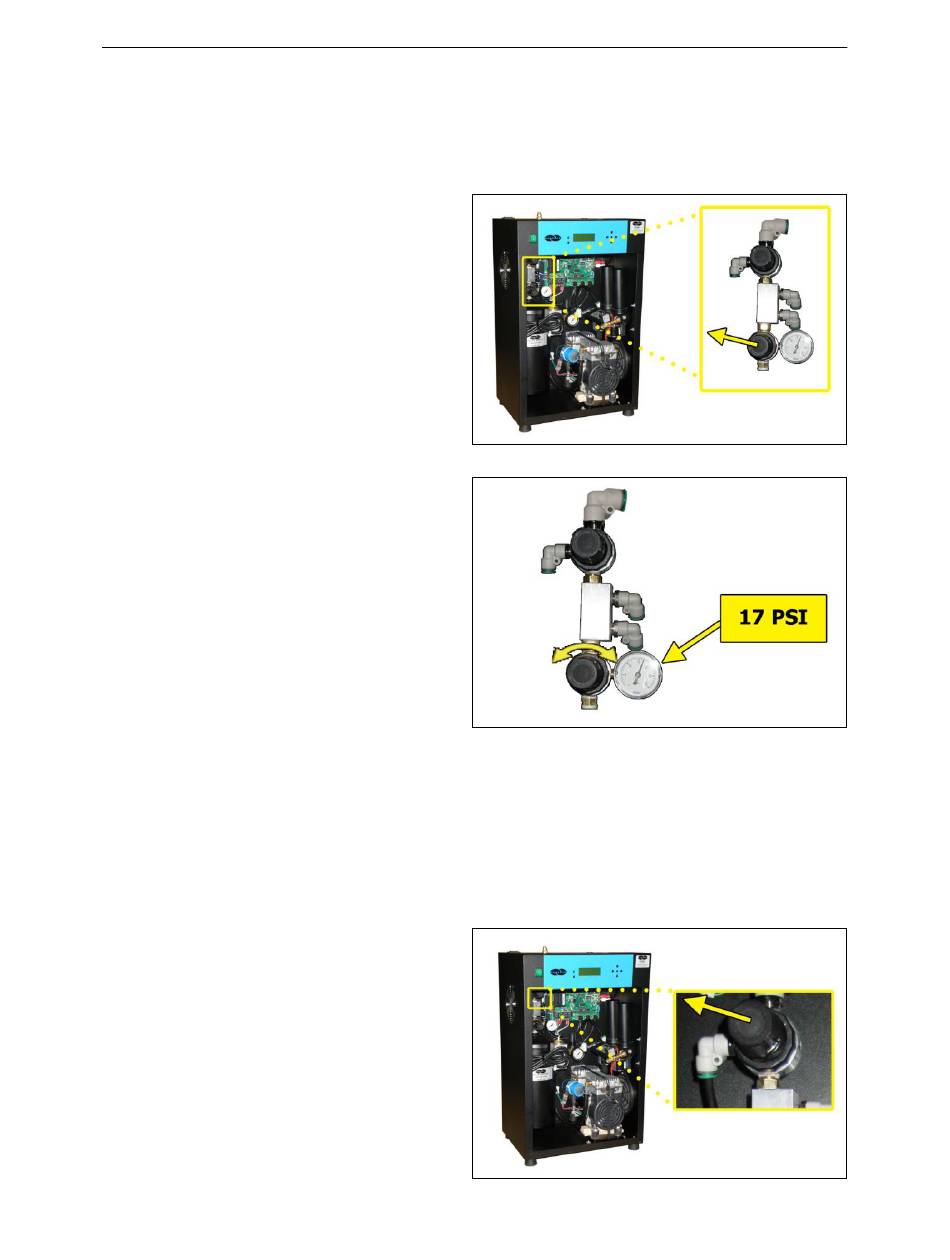

8.10 Setting the Static Pressure

8.10.1 Open Panel (see section 8.8 ).
8.10.2 Pull the Static Pressure
Regulator knob out.
8.10.3 Turn knob until the
reading on the Pressure
Gauge is17 PSI.
8.10.4 Push knob in to lock.
8.10.5 Close Panel.

8.11 Setting the Outlet Pressure

8.11.1 Open Panel (see section 8.8 ).
8.11.2 Pull the Outlet Pressure
Regulator knob out (or loosen
the retaining nut – LP
Models).
