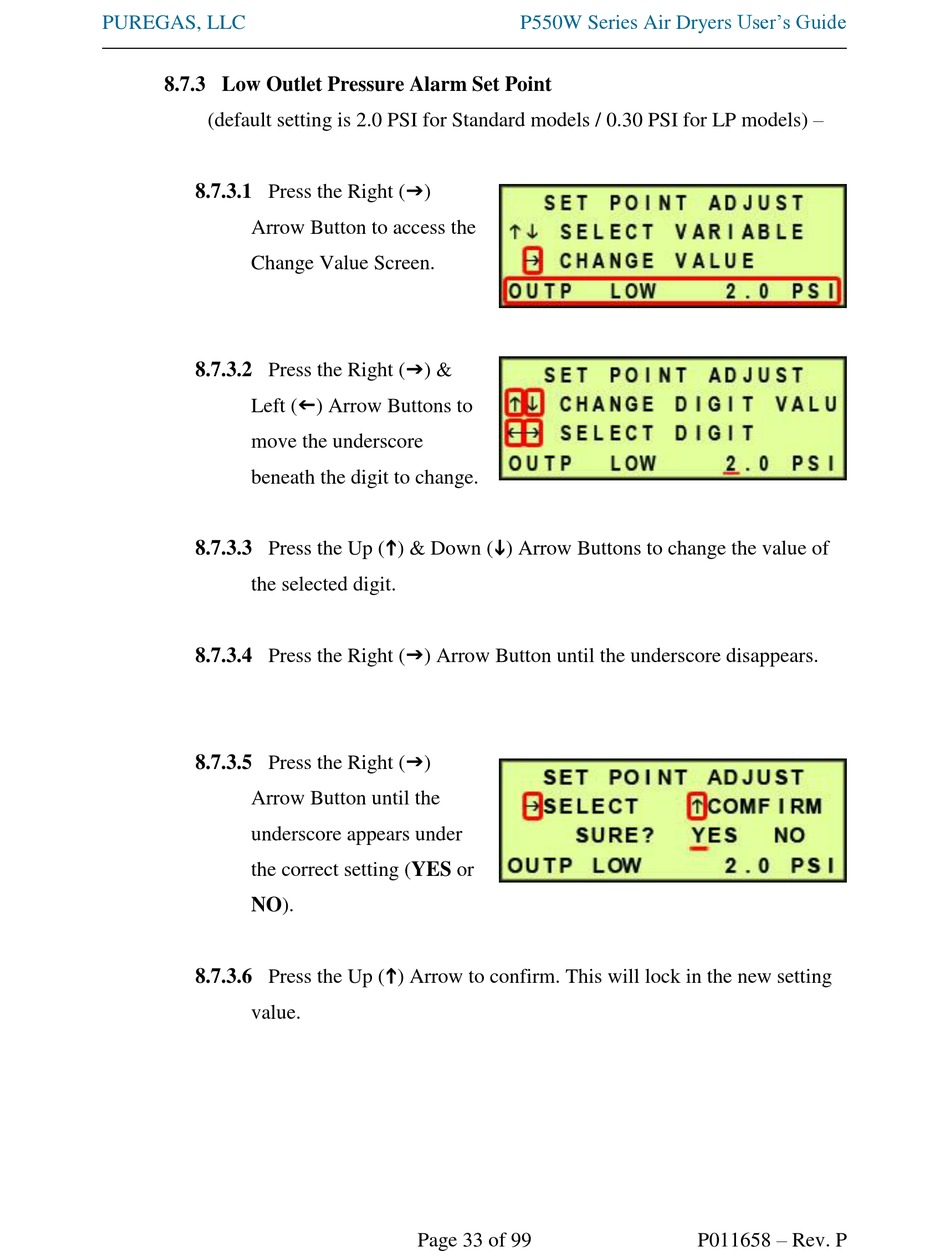

Puregas P550W Series User Manual page 33

PUREGAS, LLC
8.7.3 Low Outlet Pressure Alarm Set Point
(default setting is 2.0 PSI for Standard models / 0.30 PSI for LP models) –
8.7.3.1 Press the Right ()
Arrow Button to access the
Change Value Screen.
8.7.3.2 Press the Right () &
Left () Arrow Buttons to
move the underscore
beneath the digit to change.
8.7.3.3 Press the Up () & Down () Arrow Buttons to change the value of
the selected digit.
8.7.3.4 Press the Right () Arrow Button until the underscore disappears.
8.7.3.5 Press the Right ()
Arrow Button until the
underscore appears under
the correct setting (YES or
NO).
8.7.3.6 Press the Up () Arrow to confirm. This will lock in the new setting
value.
P550W Series Air Dryers User's Guide
Page 33 of 99
P011658 – Rev. P
