8.2 Connecting Air Supply Lines to the Dryer

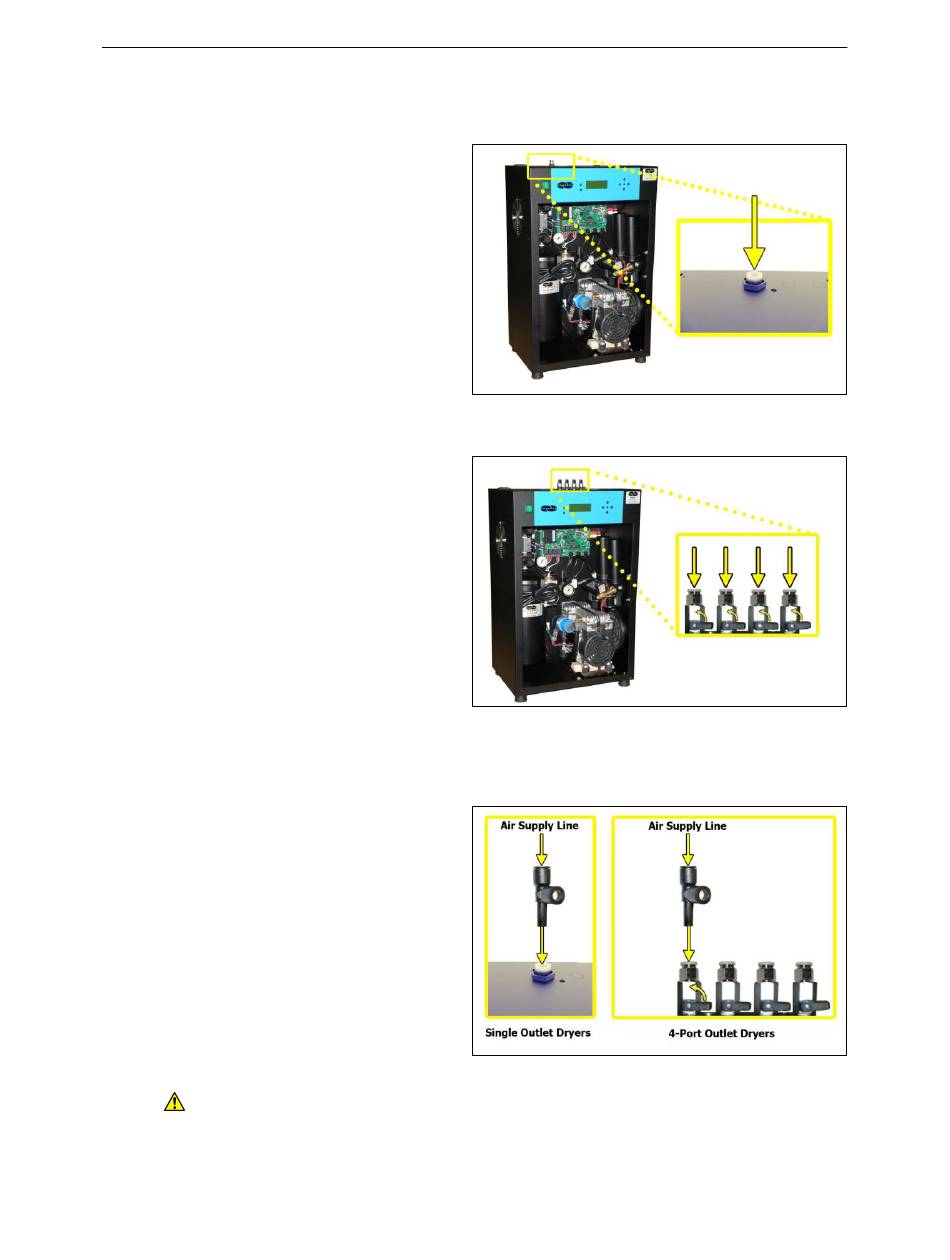

For SINGLE Outlet dryers:
8.2.1 Connect a 3/8" air supply
line to the Outlet Port.
For 4-Port Outlet dryers:
8.2.2 Connect up to four (4)
3/8"air supply lines to the
Outlet Ports.
Open Outlet Ports as
required.
NOTE: For all dryers with minimal flow:
Install the included Precision
Bleed Orifice fitting to
maintain a constant air flow.
CAUTION: Be careful when removing outlet plugs or connected Air Supply
Lines. System may be pressurized.
