For SINGLE Outlet dryers:

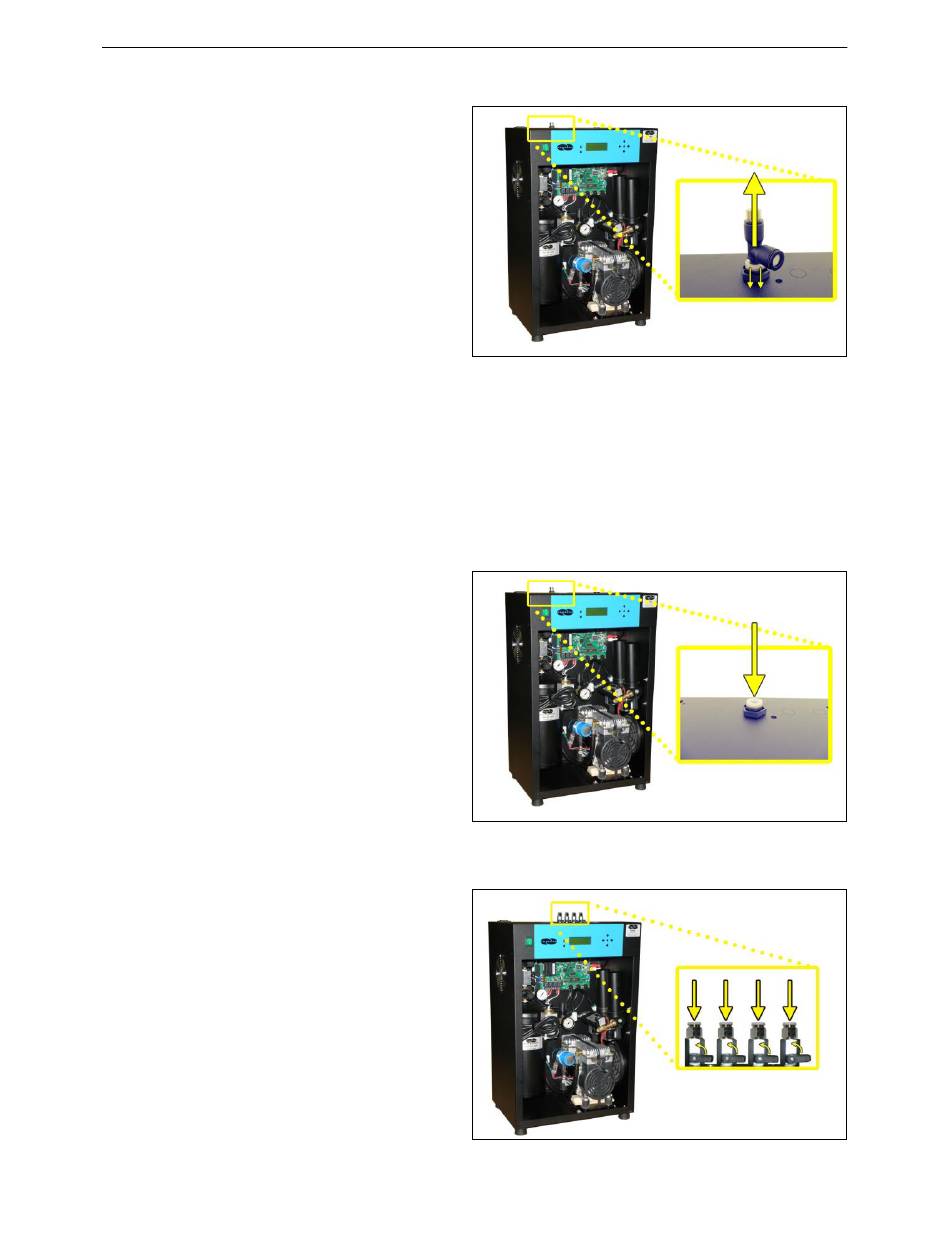

6.5.18 Remove the Precision
Bleed Orifice fitting from the
Outlet Port by pressing the
ferrule down then pulling the
fitting upward.
NOTE: Save this fitting for use in
low flow applications.
6.5.19 Connect the air supply line(s):
For SINGLE Outlet dryers:
6.5.19.1 Connect a 3/8" air
supply line to the Outlet
Port.
For 4-Port Outlet dryers:
6.5.19.2 Connect up to four
(4) 3/8"air supply lines
to the Outlet Ports.
Open Outlet Ports as
required.
