Location Requirements

WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.
IMPORTANT: This refrigerator is designed for indoor, household
use only.
This appliance is intended to be used in household and similar
applications such as:
Staff kitchen areas in shops, offices and other working
■
environments.
Farm houses and by clients in hotels, motels and other
■
residential type environments.
Bed and breakfast type environments.
■
Catering and similar non-retail applications.
■
Observe all governing codes and ordinances.
■
Floor must support the refrigerator weight, more than 600 lbs
■
(272 kg), door panels and contents of the refrigerator. Flooring
under refrigerator must be at same level as the room. Face of
cabinetry must be plumb.
Ceiling height must allow for side tipping radius.
■
See "Tipping Radius."
Location should permit door to open fully.
■
See "Door Swing Dimensions".
Location must permit top grille removal.
■
See "Opening Dimensions".
NOTE: The refrigerator is intended for use in a location where
the temperature ranges from a minimum of 55°F (13°C) to a
maximum of 110°F (43°C). The preferred room temperature
range for optimum performance, which reduces electricity
usage and provides superior cooling, is between 60°F (15°C)
and 90°F (32°C). It is recommended that you do not install
the refrigerator near a heat source, such as an oven or
radiator.
Opening Dimensions
IMPORTANT:
The width of the opening (Width A), from side to side, must
■
be as specified for your model, for at least 2" (5.08 cm) back
from the face of the cabinet.
NOTE: If your opening does not meet this requirement, you
will need to make modifications.
A solid soffit or wall cabinet must be installed 84" (213.4 cm)
■
above the floor. If the solid soffit is higher than 84" (213.4 cm)
or one is not available, then the refrigerator must be braced.
If anti-tip boards are needed, they must be attached to the
rear wall studs so that there is 84" (213.4 cm) from the bottom
of the anti-tip board to the floor. See "Install Anti-Tip Boards"
for more information.
8

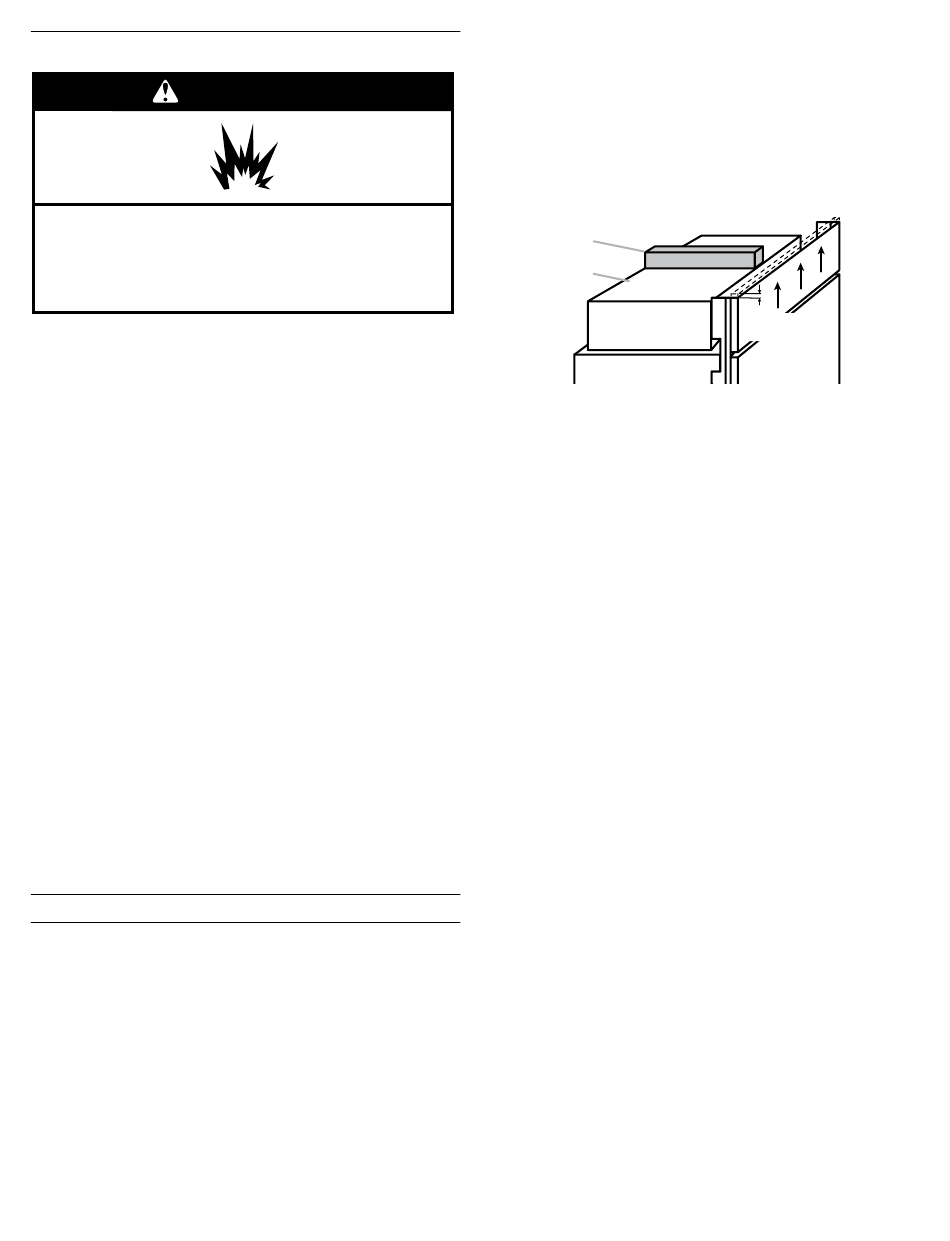

NOTES:
■ A clearance of 1/2" (1.3 cm) must be maintained above the
top grille in order for the top grille to be removed.
■ Do not remove the foam gasket from the top of the
compressor cover unless removal is necessary to fit the
unit under a soffit. Removal of the gasket will cause loss in
cooling efficiency.
■ If installing under a solid soffit, after, installation raise the
leveling legs so that the gasket is pressed snugly against
the soffit.
A
B
A. Gasket
B. Compressor cover
■ For a fully integrated installation, a minimum of
6" (15.24 cm) of open space above the refrigerator is
required. See "Fully Integrated Installation." Anti-tip
boards are required. See "Install Anti-Tip Boards" for more
information.
■ A grounded 3 prong electrical outlet should be located
within a specified number of inches from the right-hand
side cabinets or end panel. See the chart following the
graphic for the number of inches required for your model.
For more information, see "Electrical Requirements."
1/2"
(1.3 cm)
