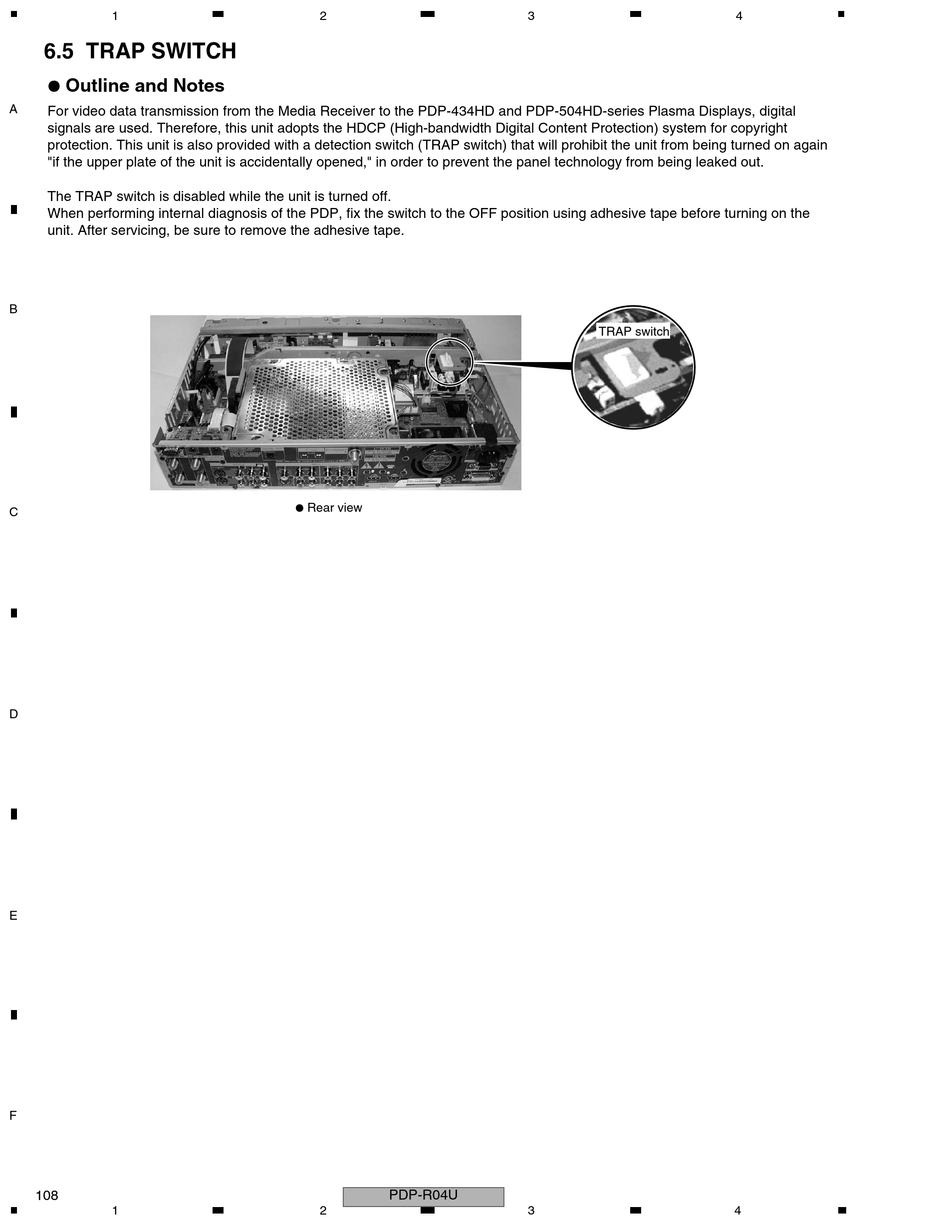

6.5 TRAP SWITCH

¶ Outline and Notes
A
For video data transmission from the Media Receiver to the PDP-434HD and PDP-504HD-series Plasma Displays, digital
signals are used. Therefore, this unit adopts the HDCP (High-bandwidth Digital Content Protection) system for copyright
protection. This unit is also provided with a detection switch (TRAP switch) that will prohibit the unit from being turned on again
"if the upper plate of the unit is accidentally opened," in order to prevent the panel technology from being leaked out.
The TRAP switch is disabled while the unit is turned off.
When performing internal diagnosis of the PDP, fix the switch to the OFF position using adhesive tape before turning on the
unit. After servicing, be sure to remove the adhesive tape.
B
C
D
E
F
108
1
2
¶ Rear view
PDP-R04U
2
3
TRAP switch
3
4
4
