Pioneer PDP-R06U Service Manual

Pioneer PDP-R06U Service Manual

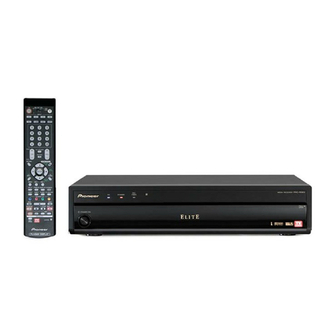

Media receiver
Hide thumbs Also See for PDP-R06U:

Advertisement

Quick Links

Download this manual
MEDIA RECEIVER
PDP-R06U
PRO-R06U
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
Type
PDP-R06U
KUCXJ
PRO-R06U
KUCXJ
This service manual should be used together with the following manual(s).
Model No.
PDP-R06U, PRO-R06U
For details, refer to "Important Check Points for good servicing".
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
Power Requirement
AC 120V
AC 120V
Order No.
ARP3280
SCHEMATIC DIAGRAM, PCB CONNECTION DIAGRAM
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PDP-R06U
Remarks
T-IZR SEPT. 2005 printed in Japan
ORDER NO.
ARP3279
Remarks
