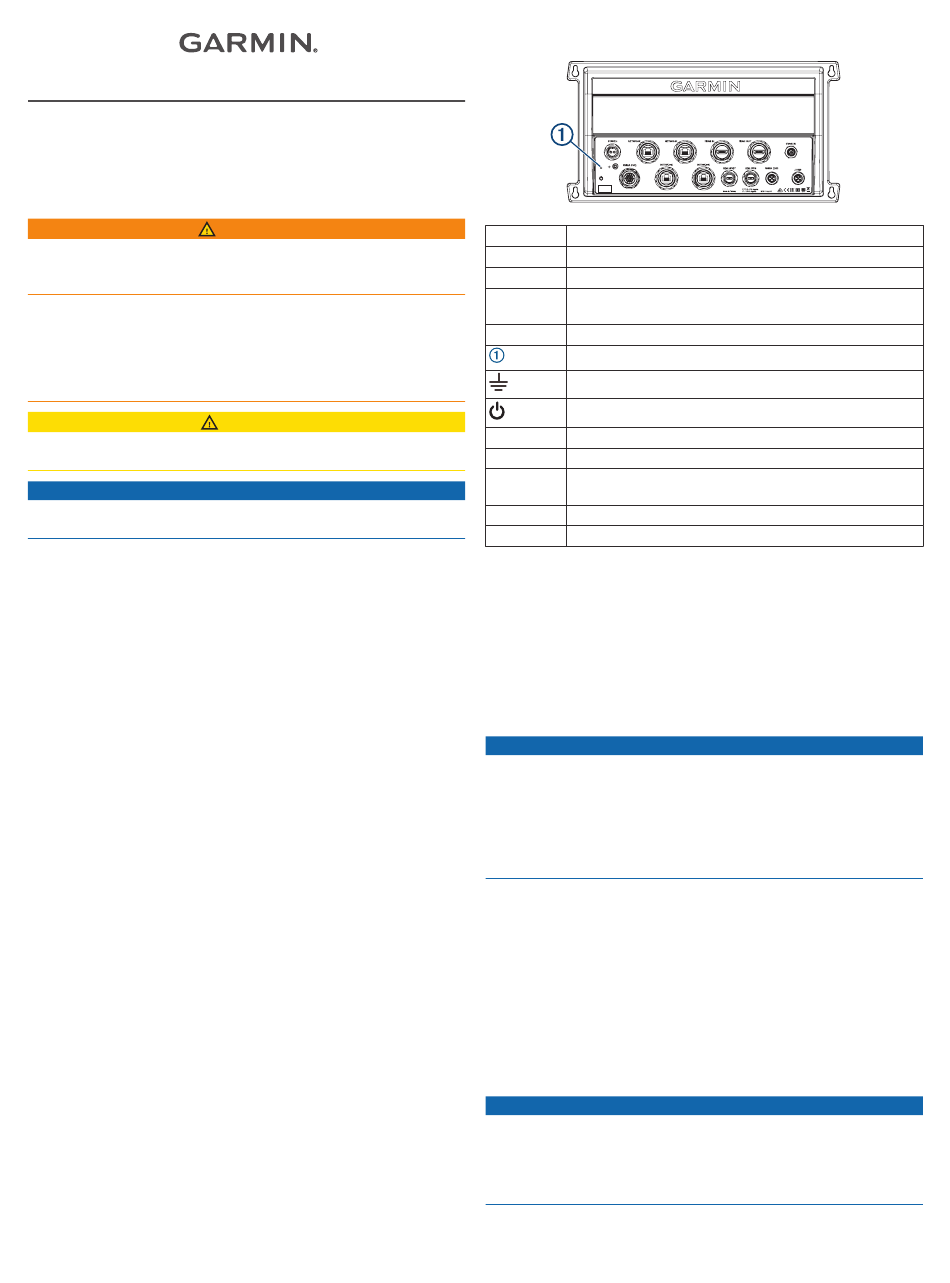

Garmin GPSMAP 8700 Installation Instructions Manual

GPSMAP
INSTALLATION
INSTRUCTIONS
Important Safety Information
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
When connecting the power cable, do not remove the in-line
fuse holder. To prevent the possibility of injury or product
damage caused by fire or overheating, the appropriate fuse
must be in place as indicated in the product specifications. In
addition, connecting the power cable without the appropriate
fuse in place voids the product warranty.
Always wear safety goggles, ear protection, and a dust mask
when drilling, cutting, or sanding.
When drilling or cutting, always check what is on the opposite
side of the surface.
To obtain the best performance and to avoid damage to your
boat, install the device according to these instructions.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation,
contact Garmin Product Support.
®
Contacting Garmin Support
• Go to support.garmin.com
product manuals, frequently asked questions, videos, and
customer support.
• In the USA, call 913-397-8200 or 1-800-800-1020.
• In the UK, call 0808 238 0000.
• In Europe, call +44 (0) 870 850 1241.
Updating the Device Software
You may need to update the device software when you install
this device or add an accessory to the network. You can use
one of two methods to update the software.
• Use the ActiveCaptain
®
• Download the update from
/software/marine.html using a memory card (32 GB max.)
and a computer running Windows
For more information, see the owner's manual at
www.garmin.com/manuals/GPSMAP8700.
Registering Your Device
Help us better support you by completing our online registration
today. You can register your device using one of two methods.
• Use the ActiveCaptain app.
• Go to www.garmin.com/express
the device using a memory card.
Keep the original sales receipt, or a photocopy, in a safe place.
After you add devices to the chartplotter network, register the
new devices.
8700
®
WARNING
CAUTION
NOTICE
for help and information, such as
app.
www.garmin.com/support
operating system.
®
and use the app to register

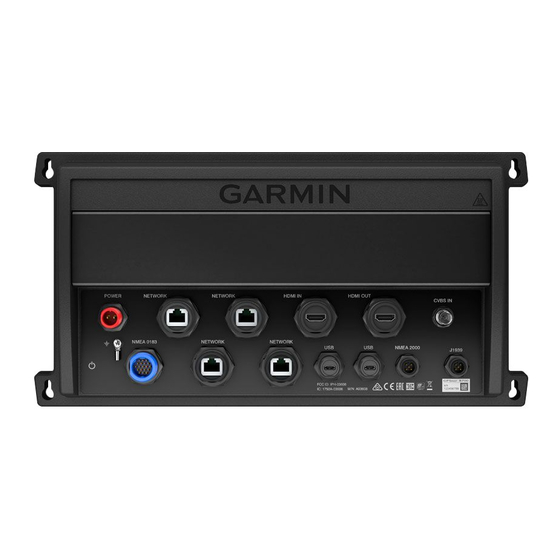

Connector View
POWER Power cable connection
NETWORK Garmin Marine Network
HDMI IN HDMI ® in
HDMI OUT HDMI out to connect the chartplotter to a monitor.
Required for device functionality.
CVBS IN Composite video in
Status LED
Power ground
Power button
NMEA 0183 NMEA ® 0183 and audio out
USB HOST Touchscreen output for connecting a touchscreen monitor
USB OTG Touchscreen input from a computer or other supported
USB accessory
NMEA 2000 NMEA 2000 network
®
J1939 J1939 network
Tools Needed
• Drill
• Drill bits appropriate for the surface and hardware (3.2 mm
1
( / in.) drill bit for included screws)
8
• Phillips screwdriver
• Pencil
Mounting Considerations
This device should be mounted in a location that is not exposed
to extreme temperatures or conditions. The temperature range
for this device is listed in the product specifications. Extended
exposure to temperatures exceeding the specified temperature
range, in storage or operating conditions, may cause device
failure. Extreme-temperature-induced damage and related
consequences are not covered by the warranty.
• You must mount the device in a location where it will not be
submerged.
• You must mount the device in a location with adequate
ventilation where it will not be exposed to extreme
temperatures.
• You must mount the device at least 2.54 cm (1 in.) from
cables and other potential sources of interference.
• You must mount the device in a location that allows room for
the routing and connection of all cables.
Mounting the GPSMAP 8700 Device
If you are mounting the device in fiberglass, when drilling the
pilot holes, it is recommended to use a countersink bit to drill a
clearance counterbore through only the top gel-coat layer. This
will help to avoid cracking in the gel-coat layer when the screws
are tightened.
NOTE: Screws are included with the device, but they may not
be suitable for the mounting surface.
NOTICE
NOTICE
