GSD 22
Sounder
Module
installation instructions

Advertisement

Table of Contents
loading

Related Manuals for Garmin GSD 22

Summary of Contents for Garmin GSD 22

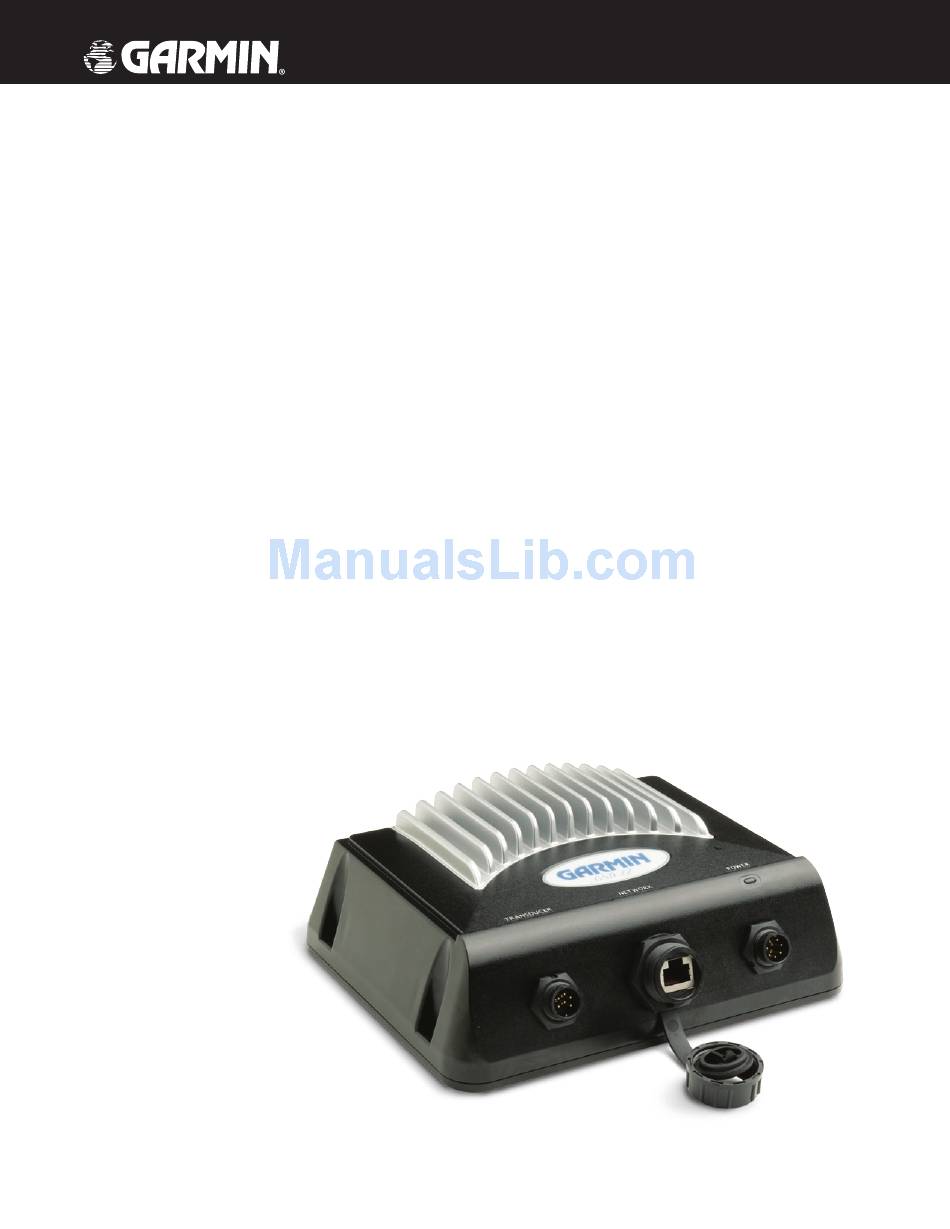

  • Page 1 GSD 22 Sounder Module installation instructions...

  • Page 2: Limited Warranty

    Limited Warranty This Garmin product is warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Garmin will at its sole option repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost.

  • Page 3: Included Equipment

    Thank you for choosing the Garmin GSD 22 Sounder Module. The GSD 22 is a CANet sounder module designed to include powerful features found in other Garmin sounders, including Color Depth Control Gain (DCG Dynacolor , and auto gain features technology. When used with compatible Garmin chartplotters, it provides full-featured depth sounder functions.

  • Page 4: Installation Instructions

    3. Repeat steps 1 and 2, attaching the transducer cable to the TRANSDUCER port on the unit. 4. If networking the MFD with the Garmin Marine Network, insert the RJ-45 connector into the NETWORK port on the back of the unit and screw the locking ring in clockwise until it is firmly seated.

  • Page 5: Canet Wiring

    NSTALLATION NSTRUCTIONS GSD 22 Sonar Module...
  • Page 6 Garmin Marine Network components use specialized Garmin Network cables. For some installations, it may be necessary to drill 1.25" (31.7 mm) holes to route the connector end of the cables. Garmin rubber grommets are provided to cover the installation holes (see below). Wiring instructions are found on the following pages.
  • Page 7 The following diagrams shows the Garmin Marine Network with a GSD 22 Sounder Module connected. The GARMIN Marine Network with a Single MFD and a GSD 22 GARMIN MARINE RADAR GARMIN GDL 30/30A MARINE WEATHER/AUDIO SATELLITE RECEIVER GPS 17 The GARMIN Marine Network with Multiple Units and a GSD 22...

  • Page 8: Blink Codes

    If a display unit is connected and this code persists, check the wiring. Software failure - Call Garmin Product Support. If the cause is a software error, the display unit can show the error. Power must be cycled to clear the error.

  • Page 9: Specifications

    4,000 /8,000/16,000 watts (peak to peak) (Dependent on transducer type.) Frequency: 50/200 kHz Depth: 5,000 foot max depth* * Depth capacity is dependent on transducer type, water salinity, bottom type, and other water conditions. Data Output Source: CANet or Garmin Marine Network GSD 22 Sonar Module PECIFICATIONS NSTALLATION NSTRUCTIONS...
  • Page 10 For the latest free software updates (excluding map data) throughout the life of your Garmin products, visit the Garmin Web site at www.garmin.com. © 2006 Garmin Ltd. or its subsidiaries Garmin International, Inc. 1200 East 151 Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, UK Garmin Corporation No.
