Garmin GPSMAP 8700 Installation Instructions Manual

GPSMAP
INSTALLATION
INSTRUCTIONS
Important Safety Information
Failure to follow these warnings, cautions, and notices could
result in personal injury, damage to the vessel or device, or poor
product performance.
See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
When connecting the power cable, do not remove the in-line
fuse holder. To prevent the possibility of injury or product
damage caused by fire or overheating, the appropriate fuse
must be in place as indicated in the product specifications. In
addition, connecting the power cable without the appropriate
fuse in place voids the product warranty.
To avoid possible personal injury, always wear safety goggles,
ear protection, and a dust mask when drilling, cutting, or
sanding.
To avoid possible personal injury or damage to the device and
vessel, disconnect the vessel's power supply before beginning
to install the device.
To avoid possible personal injury or damage to the device or
vessel, before applying power to the device, make sure that it
has been properly grounded, following the instructions in the
guide.
For the best possible performance, the device must be installed
according to these instructions.
When drilling or cutting, always check what is on the opposite
side of the surface to avoid damaging the vessel.
Read all installation instructions before proceeding with the
installation. If you experience difficulty during the installation,
contact Garmin Product Support.
®
Contacting Garmin Support
• Go to support.garmin.com
product manuals, frequently asked questions, videos, and
customer support.
• In the USA, call 913-397-8200 or 1-800-800-1020.
• In the UK, call 0808 238 0000.
• In Europe, call +44 (0) 870 850 1241.
Software Update
You may need to update the chartplotter software after
installation. For the instructions on how to update the software,
see the owner's manual at garmin.com/manuals/GPSMAP8700.
November 2020
8700
®
WARNING
CAUTION
NOTICE
for help and information, such as

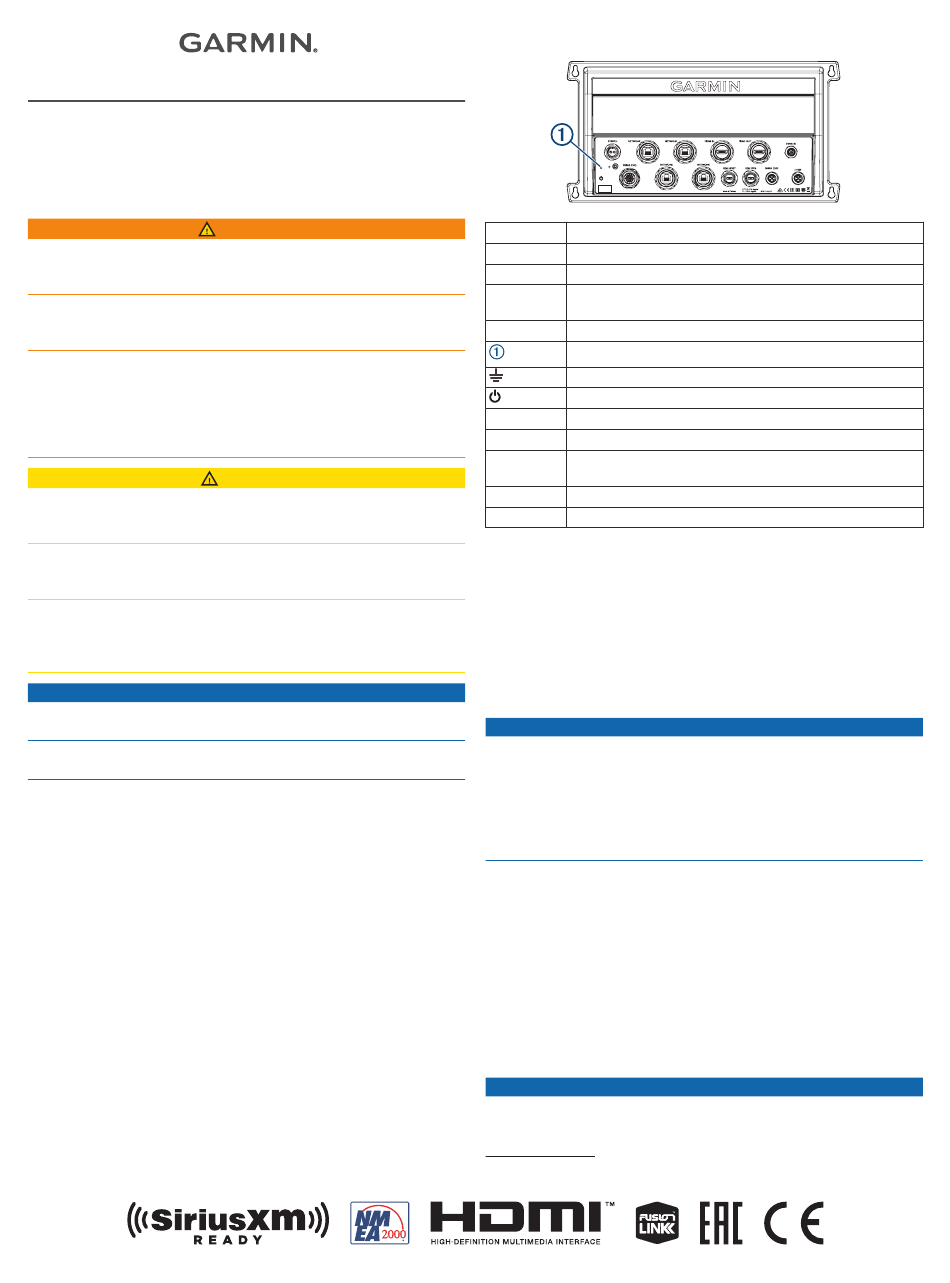

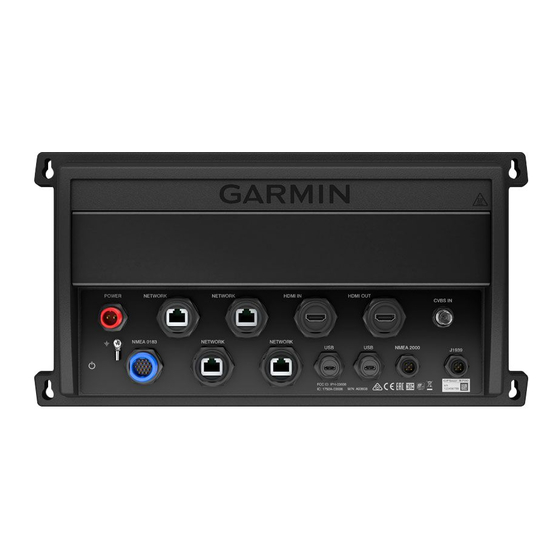

Connector View
POWER Power cable connection
NETWORK Garmin Marine Network
HDMI IN HDMI in
®
HDMI OUT HDMI out to connect the chartplotter to a monitor.
Required for device functionality.
CVBS IN Composite video in
Status LED
Power ground
Power button
NMEA 0183 NMEA 0183 and audio out
®
USB HOST Micro-USB output for connecting a touchscreen monitor
USB OTG Micro-USB input from compatible Garmin card reader
computer, or other supported USB accessory
NMEA 2000 NMEA 2000 ® network
J1939 J1939 network
Tools Needed
• Drill
• Drill bits appropriate for the surface and hardware (3.2 mm
1
( / in.) drill bit for included screws)
8
• Phillips screwdriver
• Pencil
Mounting Considerations
This device should be mounted in a location that is not exposed
to extreme temperatures or conditions. The temperature range
for this device is listed in the product specifications. Extended
exposure to temperatures exceeding the specified temperature
range, in storage or operating conditions, may cause device
failure. Extreme-temperature-induced damage and related
consequences are not covered by the warranty.
• You must mount the device in a location where it will not be
submerged.
• You must mount the device in a location with adequate
ventilation where it will not be exposed to extreme
temperatures.
• You must mount the device at least 2.54 cm (1 in.) from
cables and other potential sources of interference.
• You must mount the device in a location that allows room for
the routing and connection of all cables.
Mounting the GPSMAP 8700 Black Box Device
If you are mounting the device in fiberglass, when drilling the
pilot holes, use a countersink bit to drill a clearance counterbore
1
Only compatible Garmin card readers recommended. Third-party card readers
are not guaranteed to be fully compatible.
GUID-0E7D71DD-265C-4A81-9C9D-474AAB4BB516 v2
NOTICE
NOTICE
