Technical data
Main input:
AC 100-255V / 50-60Hz / 5W
Battery input:
AC/DC12-24V / 5W
DMX Input / Output:
4x USITT DMX512 /RS485/ isolated up to 1000V
Maximum of: 4x 32 devices per one splitter output
Cable length: max: 4x 1200m
Size/Weight:
Metal box with powder coating: 234x154x62mm, 1.7kg
Mounting points:
Located symmetrically on base plate, 8mm wide hole for securing line
Grid of mounting points: 222x78mm, 4 x rubber feet on bottom
Temperature of use:
-10 ºC / +45 º C
Warranty:
Two Years /24 months/ warranty
DECLARATION OF CONFORMITY
According to guidelines 89/336 EEC and 92/31 EEC:
Name of producer: SRS Light Design s.r.o.
Address of producer: Rybnicna 36/D, SK- 83106 Bratislava, Slovak Republic
Declares that the product
Name of product: DST4 way DMX splitter
Type: DST4
Corresponds to the following product specifications:
Safety: EN60065, resp. EN 60950
EMC: EN55103-1, resp. EN55103-2
th
Bratislava, 10
of May 2011

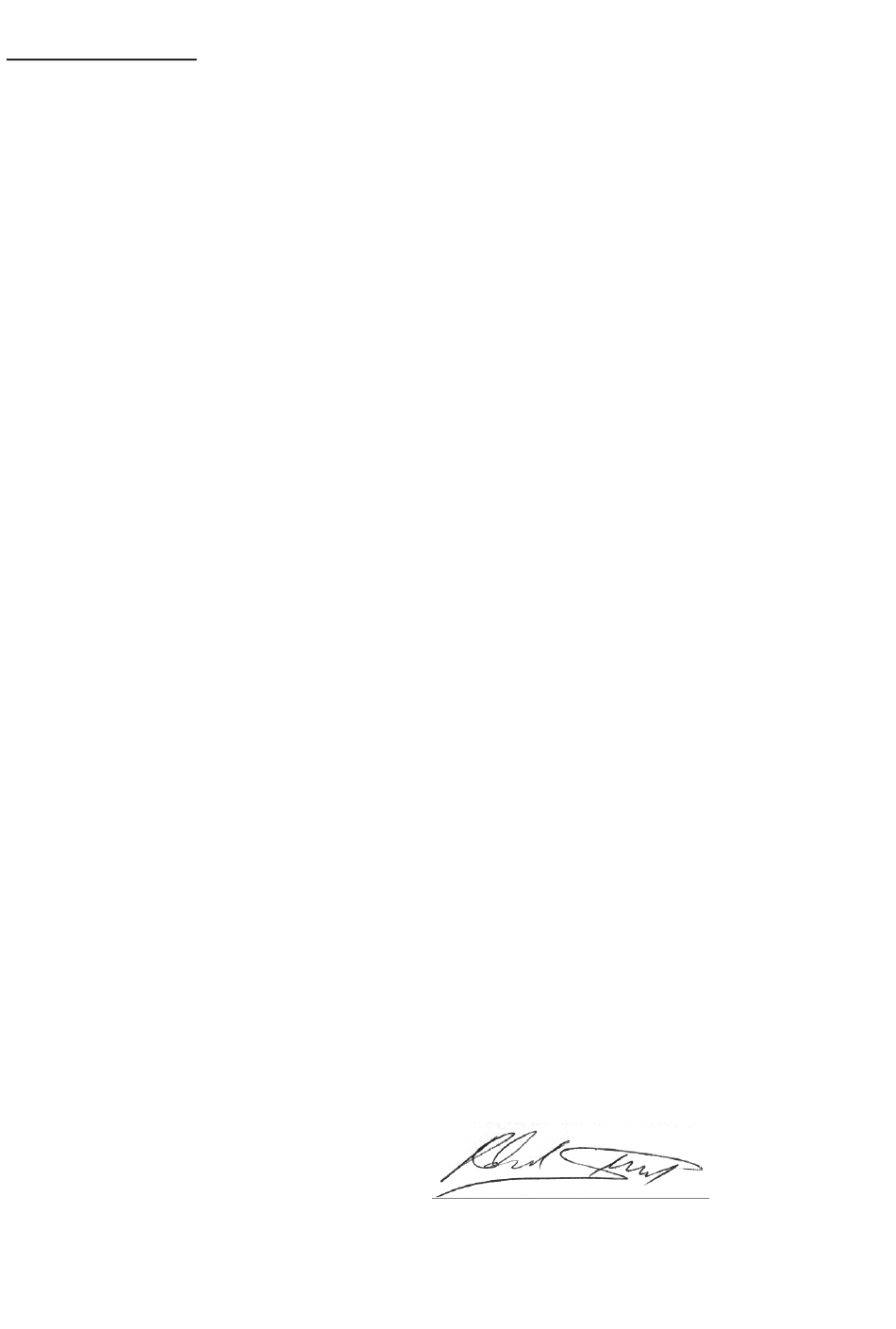

Robert Sloboda
Advertisement
Table of Contents
Related Manuals for SRS Light Design DST4-3
Summary of Contents for SRS Light Design DST4-3
- Page 1 Two Years /24 months/ warranty DECLARATION OF CONFORMITY According to guidelines 89/336 EEC and 92/31 EEC: Name of producer: SRS Light Design s.r.o. Address of producer: Rybnicna 36/D, SK- 83106 Bratislava, Slovak Republic Declares that the product Name of product: DST4 way DMX splitter...
- Page 2 Please read and follow these instructions carefully. Always ensure that the power to equipment is disconnected before opening the equipment or commencing any maintenance work. SRS Light Design s.r.o, Rybničná 36/D , 831 06 Bratislava, Slovak Republic tel:+421244681417, fax:+421244681419, www.srslight.com sales@srslight.com...
- Page 3 In case of short circuit between data pins D+/D- to the CMN pin the LED connected to data line will be off. Pin 1 Common Pin 2 Data - Pin 3 Data + SRS Light Design s.r.o, Rybničná 36/D , 831 06 Bratislava, Slovak Republic tel:+421244681417, fax:+421244681419, www.srslight.com sales@srslight.com...
- Page 4 D- and CMD lines. If there is any problem just send us an email to service@srslight.com call us to +421244681417 and be calm because we help you to fix your problems for sure. SRS Light Design s.r.o, Rybničná 36/D , 831 06 Bratislava, Slovak Republic tel:+421244681417, fax:+421244681419, www.srslight.com...
