Camera Setup

The PhotoDoc-It camera comes installed from the factory in its
bracket and attached to the system's darkroom hood enclosure.
1. Plug the camera's pre-installed power supply into a wall
outlet or surge protector.
2. Plug the supplied USB interface cable into the camera and
the printer. This cable includes a controller (Printer
Controller Switch) for switching the camera-to-printer
connection on or off.
Should the camera need to be removed, use the provided Allen
wrench to unscrew the black Allen bolt on the front of the
bracket. Use a Phillips head screwdriver to remove the three
screws from the top of the bracket and remove the bracket
component for access to the camera.

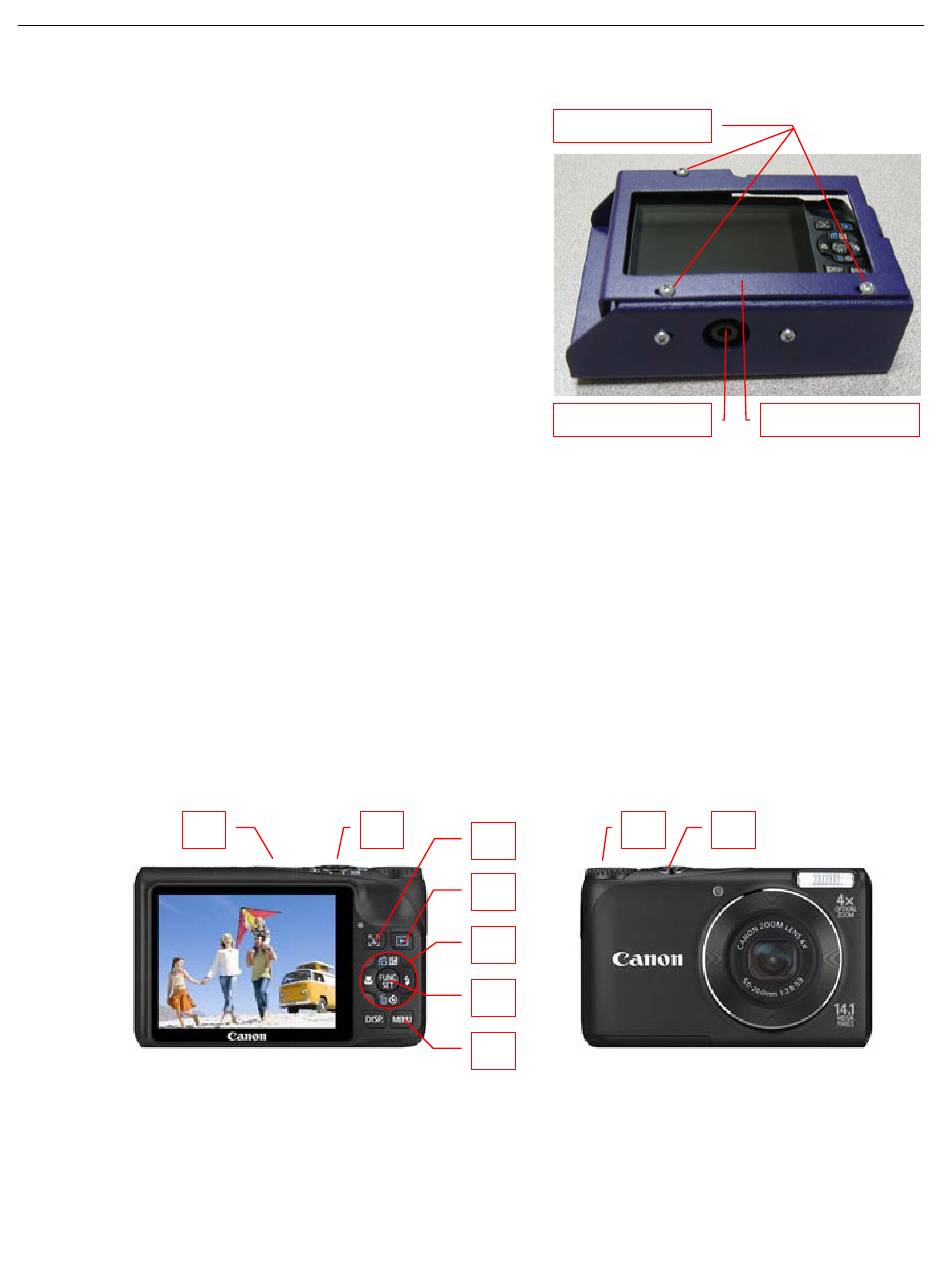

Camera Buttons

1. Power On/Off Button (1)
2. Camera Shutter Button (2)
3. Face Selector Button (3)
4. Playback Button (4)
5. Navigation Selector (up, down, left, right) (5)
6. Function Set Button (6)
7. Menu Button (7)
8. Mode Selector (8)
9. Zoom Toggle (9)
1 2
3
4
5
6
7
Phillips Screws (3)
Allen Bolt
PhotoDoc-It Camera and Bracket
8 9
5
Bracket Component
