PhotoDoc-It Imaging System
Components

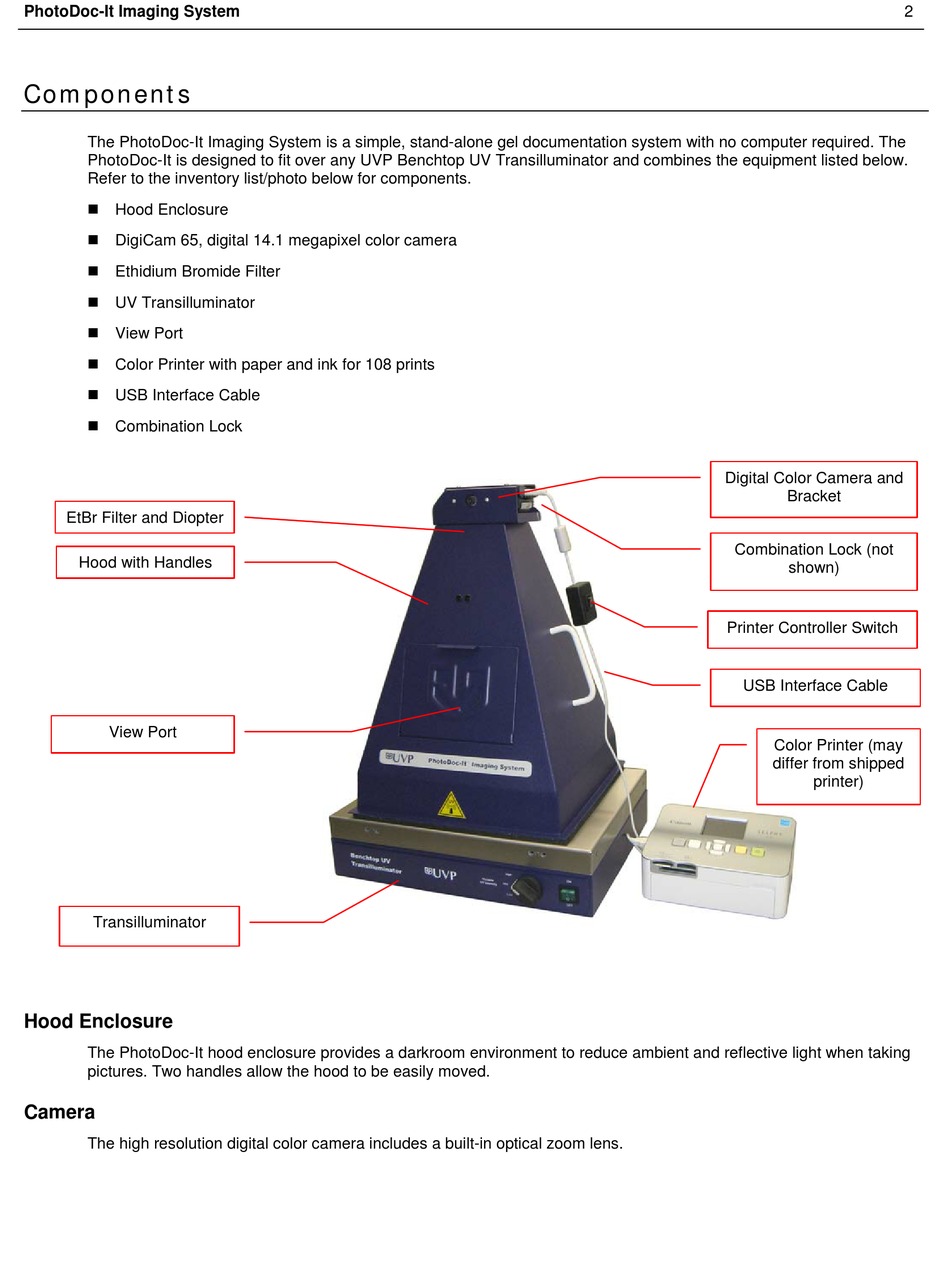

The PhotoDoc-It Imaging System is a simple, stand-alone gel documentation system with no computer required. The
PhotoDoc-It is designed to fit over any UVP Benchtop UV Transilluminator and combines the equipment listed below.
Refer to the inventory list/photo below for components.
 Hood Enclosure
 DigiCam 65, digital 14.1 megapixel color camera
 Ethidium Bromide Filter
 UV Transilluminator
 View Port
 Color Printer with paper and ink for 108 prints
 USB Interface Cable
 Combination Lock
EtBr Filter and Diopter
Hood with Handles
View Port
Transilluminator
Hood Enclosure
The PhotoDoc-It hood enclosure provides a darkroom environment to reduce ambient and reflective light when taking
pictures. Two handles allow the hood to be easily moved.
Camera
The high resolution digital color camera includes a built-in optical zoom lens.
Digital Color Camera and
Bracket
Combination Lock (not
shown)
Printer Controller Switch
USB Interface Cable
Color Printer (may
differ from shipped
printer)
