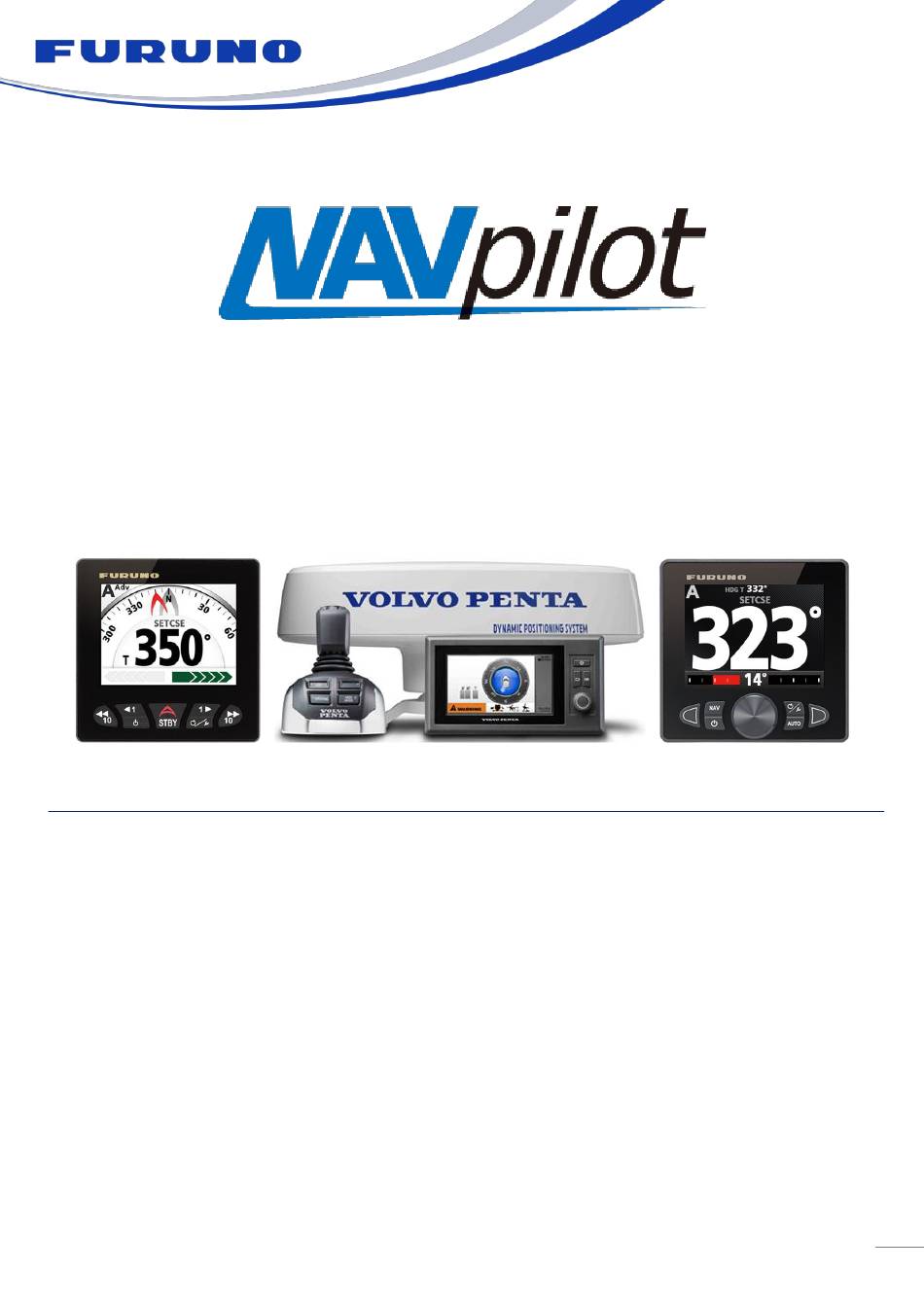

NAVpilot-300
This document describes the basic information on Volvo Penta IPS, Volvo IPS Gateway
with Navpilot 300 installation. Please refer to the Navpilot 300 Installation and
Operator's manual for full instructions.
Index
1. What is Volvo Penta IPS?
2. Interconnection
3.Wiring the Gateway to the EVC
Volvo Penta IPS
with
4. Initial Settings on Navpilot-300
5. Compatible Software Versions
INDEX
1
Advertisement
Related Manuals for Furuno NAVpilot-300
Summary of Contents for Furuno NAVpilot-300
- Page 1 Navpilot 300 installation. Please refer to the Navpilot 300 Installation and Operator’s manual for full instructions. Index 1. What is Volvo Penta IPS? 4. Initial Settings on Navpilot-300 2. Interconnection 5. Compatible Software Versions 3.Wiring the Gateway to the EVC...
- Page 2 All new VP IPS vessels are compatible with the NAVpilot-300 via the IPS gateway. It is easy to confirm whether the IPS drive is a C, D, or E version. If you visually confirm that the boat has the same Throttle and Joystick controllers as pictured below, it is compatible with the NAVpilot-300.
- Page 3 NMEA2000 Micro-C, male) and unique connector for the Volvo Penta IPS bus (multi link bus cable). While the CAN connector is connected to the NAVpilot-300 DBW (CAN) port, the unique connector is connected to the Volvo Penta IPS network through a Y-split cable.
- Page 4 3. Wiring the Gateway to the EVC • Locate the EVC black box control unit and the associated EVC Bus wiring. The number of EVC units is equivalent to the number of IPS engine units on the vessel. In this example the vessel has twin IPS drives. •...
- Page 5 Disconnect the multi-link cable connector and install the Y-split cable for multi link cable installation or if there is a hub simply plug the Helm Master gateway into the open port on the hub and disregard the Y-Split Cable. Note: There will be several similar style bus connectors but only the correct ones will fit properly.
- Page 6 In the Installation Menu, access [Installation] – [Ship’s Characteristics] – [Boat Type] and select [EVCS-Pod Drive]. Selecting “EVCS Pod Drive" will allow the NAVpilot-300 system to communicate with the Volvo IPS gateway. Next in [EVCS Power supply]- select [Output]. This will supply power to the Navpilot 300 DBW CAN bus and the Volvo IPS gateway.
- Page 7 5. Compatible Software Versions The NAVpilot-300 is compatible with Volvo Penta IPS from the initial version. Items Versions Processor Unit FAP-3012 01.06 or later Control Unit FAP-3011 01.07 or later Tips on Operation The Navpilot-300 automatically incorporates features like Safe Helm called “Override”.
