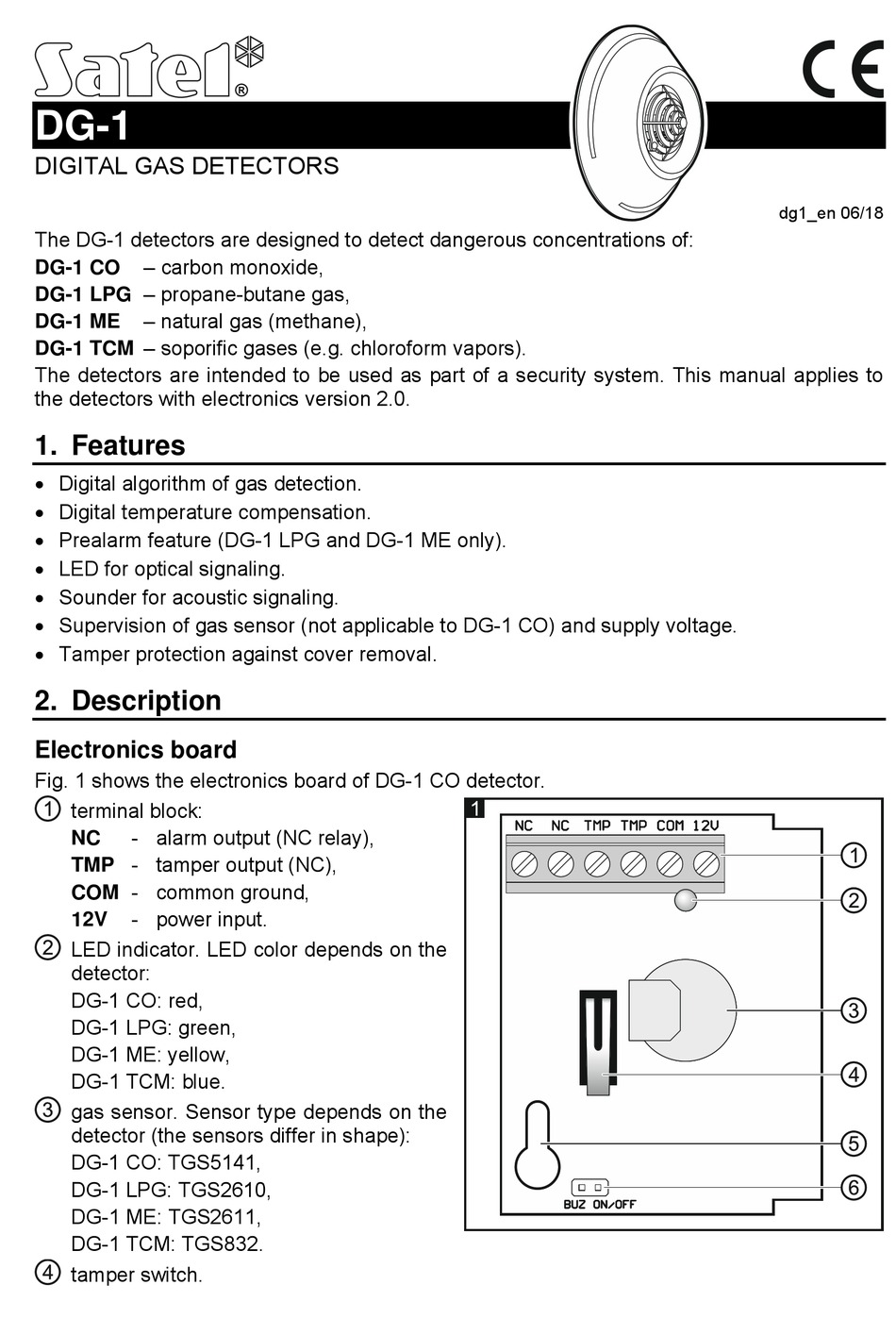

Satel DG-1 Series Manual

DG-1
DIGITAL GAS DETECTORS
The DG-1 detectors are designed to detect dangerous concentrations of:
– carbon monoxide,
DG-1 CO
DG-1 LPG – propane-butane gas,
– natural gas (methane),
DG-1 ME
DG-1 TCM – soporific gases (e.g. chloroform vapors).
The detectors are intended to be used as part of a security system. This manual applies to
the detectors with electronics version 2.0.

1. Features

 Digital algorithm of gas detection.
 Digital temperature compensation.
 Prealarm feature (DG-1 LPG and DG-1 ME only).
 LED for optical signaling.
 Sounder for acoustic signaling.
 Supervision of gas sensor (not applicable to DG-1 CO) and supply voltage.
 Tamper protection against cover removal.

2. Description

Electronics board
Fig. 1 shows the electronics board of DG-1 CO detector.
terminal block:
- alarm output (NC relay),
NC
TMP - tamper output (NC),
COM - common ground,
- power input.
12V
LED indicator. LED color depends on the
detector:
DG-1 CO: red,
DG-1 LPG: green,
DG-1 ME: yellow,
DG-1 TCM: blue.
gas sensor. Sensor type depends on the
detector (the sensors differ in shape):
DG-1 CO: TGS5141,
DG-1 LPG: TGS2610,
DG-1 ME: TGS2611,
DG-1 TCM: TGS832.
tamper switch.
dg1_en 06/18
