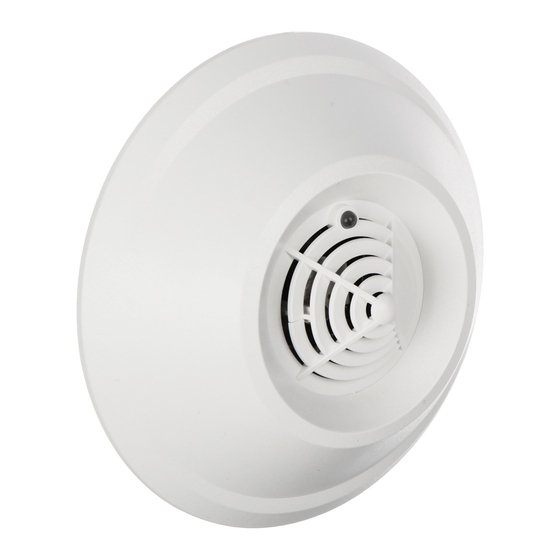

DG-1
DIGITAL GAS DETECTORS
dg1_e 04/06
The DG-1 microprocessor-based digital gas detectors are characterized by reliability
and low current consumption. Due to a digital temperature compensation feature they
can operate within a wide temperature range. Gas concentration above the threshold
level triggers visual and audible alarm signals. The detectors can be used as part of
a security system, or as a stand-alone device.
The DG-1 series of digital gas detectors includes the following products:
DG-1 CO - carbon monoxide detector;
DG-1 LPG - propane-butane gas detector;
DG-1 ME - natural gas (methane) detector;
DG-1 TCM - soporific gas detector (e.g. chloroform vapors).

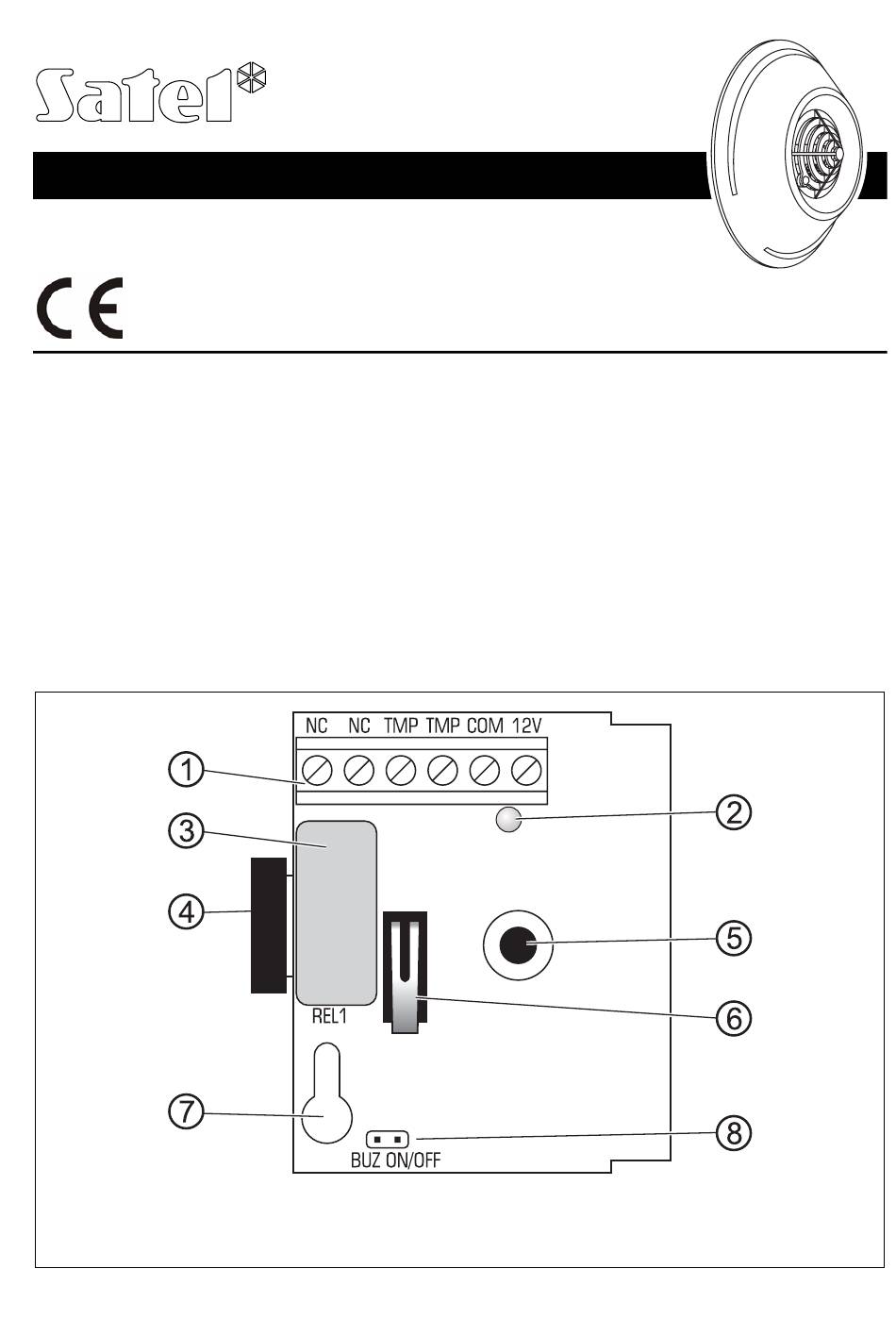

Fig. 1. The electronics board of DG-1 CO, DG-1 LPG, DG-1 ME detectors. The
electronics board of DG-1 TCM detector differs in size and shape of the gas sensor
installed.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Satel DG-1
Summary of Contents for Satel DG-1
- Page 1 DG-1 ME - natural gas (methane) detector; DG-1 TCM - soporific gas detector (e.g. chloroform vapors). Fig. 1. The electronics board of DG-1 CO, DG-1 LPG, DG-1 ME detectors. The electronics board of DG-1 TCM detector differs in size and shape of the gas sensor installed.
- Page 2 1. Alarm signaling Depending on the detector type, the conditions of alarm signaling vary. They are described in Table 1. Additionally, the DG-1 LPG and DG-1 ME detectors feature the prealarm function. DG-1 CO DG-1 LPG...
- Page 3 Considering specific character of the gases to be detected, the DG-1 TCM and DG-1 LPG detectors should be mounted in low position, just above the floor, the DG-1 ME detector in high position, just under the ceiling, and DG-1 CO detector at a height of about 1.5 meter.
- Page 4 Fig. 3. Alignment of the indicators when closing the detector housing. 4. Technical data Nominal supply voltage (±15%)................12V DC Mean current consumption (±10%): DG-1 CO............12mA DG-1 LPG............35mA DG-1 ME............35mA DG-1 TCM ............80mA Operating temperature range ................-10...+55°C Dimensions ....................ø97x36mm The latest EC declaration of conformity and product approval certificates are available for downloading on website www.satel.pl...
