Summary of Contents for SUPRO 1697R Galaxy Head

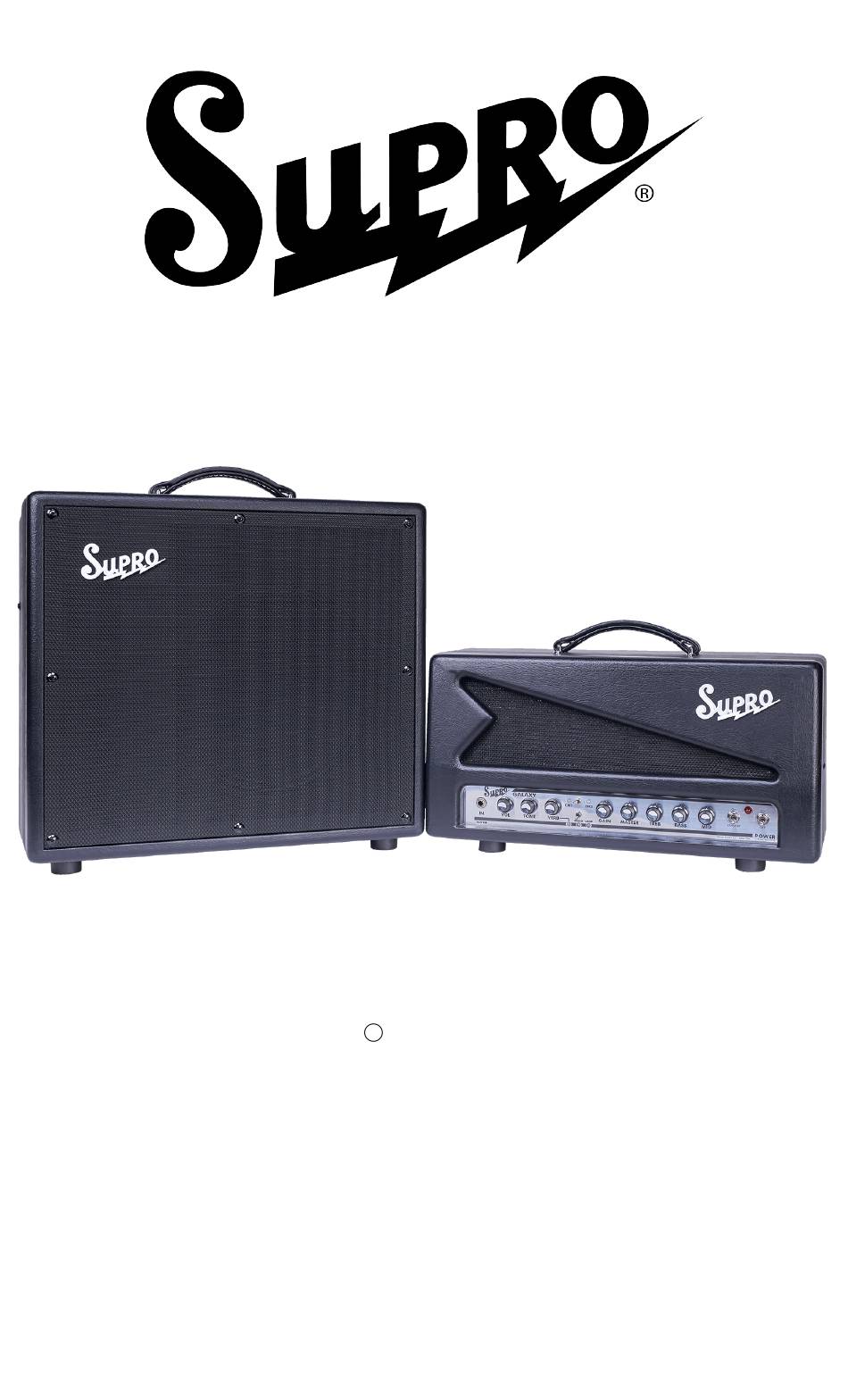

- Page 1 1697R Galaxy Head and Combo User Manual All contents c 2019 Absara Audio LLC...
-
Page 2: Important Safety Information
Do not impede ventilation by placing objects on top of the apparatus which extend past the rear edge of its cabinet. Please contact Supro directly or a qualified person for tube replacement The AC plus is the mains disconnect. The plug should remain accessible after instal- lation. -
Page 3: Table Of Contents
Troubleshooting ......3 Supro Warranty Policy USA/Canada Warranty ...... -
Page 4: Anatomy And Usage
Anatomy and Usage Front Panel Instrument input for the amplifier. Controls the volume level of Channel 1. TONE The TONE control for Channel 1 is a passive Treble / Bass filter. Turning the knob clockwise decreases bass response, while increasing treble. Turning the knob counterclockwise decreases treble response, while increasing bass frequencies. -
Page 5: Rear Panel
BASS Controls the level of bass frequencies of Channel 2. Controls the level of midrange frequencies of Channel 2. STANDBY SWITCH This turns on the high voltage to the tubes. The tubes should warm up for at least one minute before turning standby switch to OPERATE. Be sure that the Volume control is set to a reasonable position before switching the amp to OPERATE as this amp can be very loud! For short breaks (5 minutes or less), using the standby switch will increase tube life. -
Page 6: Footswitches
Allows remote switching of the effects loop. Note: Plugging a cable into the LOOP footswitch jack will override the rear panel switch position. Effects Loop The effects loop in the Supro Galaxy provides a place to insert effects after the gain stages of the pre-amp. SEND JACK Sends signal to the input jack of external effects pedals. -
Page 7: Reverb
Reverb The Supro Galaxy is equipped with tube-driven, spring reverb. DWELL The Dwell knob allows you to set how much signal is fed to the Reverb pan when Channel 2 is activated. Turning the Dwell knob counter-clockwise reduces the signal level going into the Reverb. -
Page 9: Tubes
Tubes Each Supro tube amplifier is a 100% analog, 100% tube amplifier. There are NO solid state (transistor) devices in ANY audio signal path. Viewed from the rear of the chassis ECC83 ECC83 ECC83 ECC83 Phase Inverter CH2 Preamp CH2 Preamp... -
Page 10: Supro Warranty Policy
Damage caused during transportation of the product. Damage caused by repair or service carried out by persons not authorized by Supro USA. A Product with a serial number which has been defaced, removed etc. A Product which was not purchased from an Authorized Dealer in the USA or Canada. -
Page 11: International Warranty
2 years), customer pays shipping to Supro USA and Supro USA pays return ground shipping. If amp is returned to Supro and proven to be oversight or user error, customer will be responsible for return shipping.
