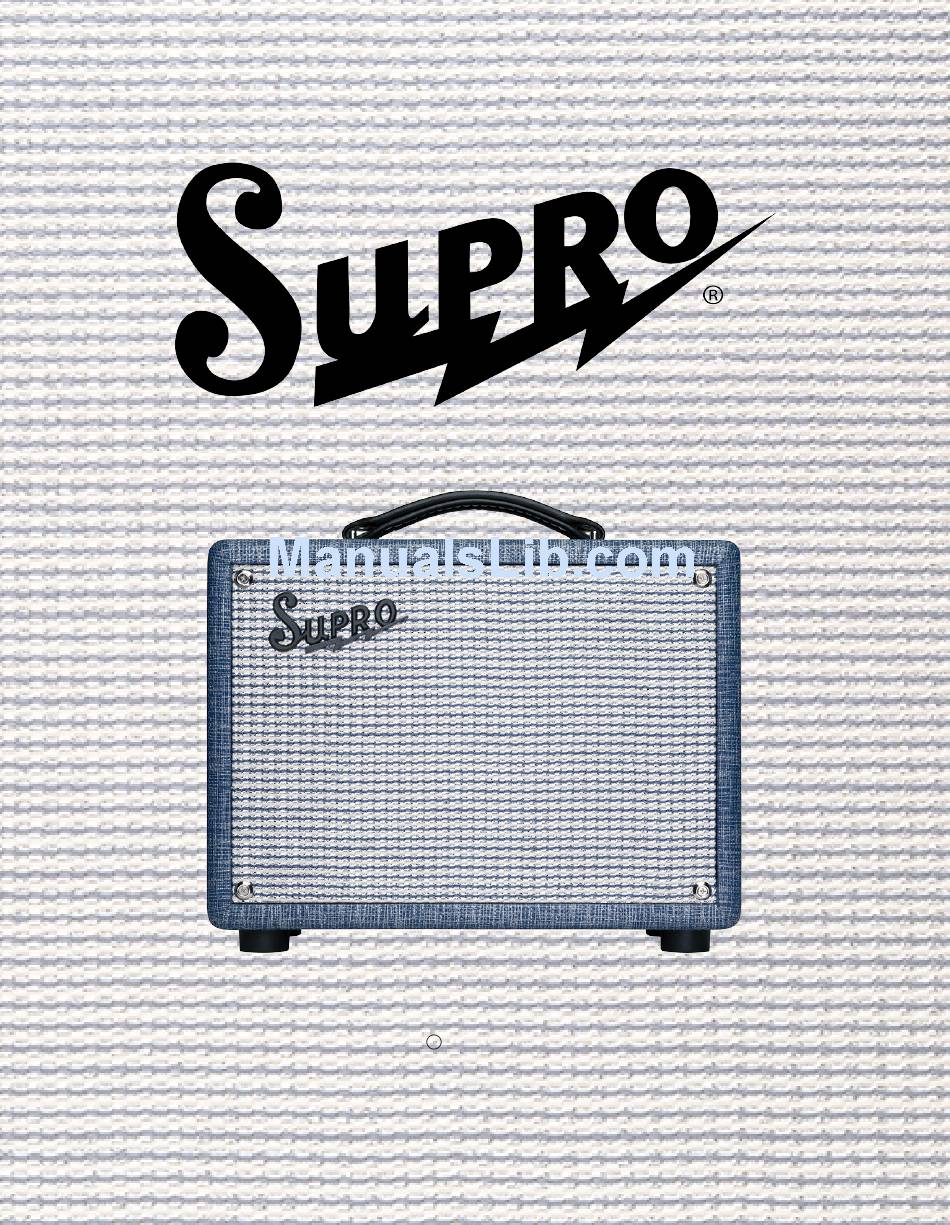

- Page 1 Model 1605R Reverb User Manual All contents c Absara Audio LLC 2014...
-
Page 2: Important Safety Information
Please contact Supro directly or a qualified person for tube replacement The AC plug is the mains disconnect. The plug should remain accessible after installation. -
Page 3: Table Of Contents
Troubleshooting ........3 Supro Warranty Policy USA/Canada Warranty . -
Page 4: Anatomy And Usage
Anatomy and Usage Front Panel Instrument input. GAIN Input GAIN. Controls the saturation of the preamp stage. TREBLE Controls the amount of treble in your signal. BASS Controls the amount of bass in your signal. REVERB Controls the amount of reverb in the signal. BYPASS Footswitch jack to allow remote reverb kill. -
Page 5: Rear Panel
Rear Panel Speaker Out The 1605R Reverb provides one 8 Ohm, and two 4 Ohm speaker outputs. Use the 8 output for the internal speaker, OR, a single 8 external cabinet, without the internal speaker. To use the internal speaker AND an extension cabinet, plug the internal speaker in to one of the 4 jacks, and extension into the other 4 jack. -
Page 6: Setting Tones
AC Mains fuse. This is a 5x20mm, 2.5A, 250V Fuse. Setting Tones The Supro 1605R Reverb amplifier is a 5-Watt, 1x8 combo amp with tube-driven spring reverb. This ultra-compact and gig-ready amplifier provides independent gain and master volume controls, along with a 2-band EQ and three tube-driven line-outputs optimized for feeding another guitar amplifier or... -
Page 10: Tubes
Tubes Each Supro tube amplifier is a 100% analog, 100% tube amplifier. There are NO solid state (transistor) devices in ANY audio signal path. Viewed from the rear of the chassis ECC83 Supro 1605R Reverb ECC83 Preamp Power Output ECC81... -
Page 11: Supro Warranty Policy
Damage caused during transportation of the product. Damage caused by repair or service carried out by persons not authorized by Supro USA. A Product with a serial number which has been defaced, removed etc. A Product which was not purchased from an Authorized Dealer in the USA or Canada. -
Page 12: International Warranty
2 years), customer pays shipping to Supro USA and Supro USA pays return ground shipping. If the amplifier is returned to Supro and the cause is proven to be oversight or user error, customer will be responsible for return shipping.
