Surround Speakers:
In this example older B&O loudspeakers with 8pol DIN Powerlink sockets
Center Speaker
In order to connect older B&O
speakers
BeoLab 8000, BeoLab 6000
etc.) you need some special
adapters RJ45 <-> Powerlink.

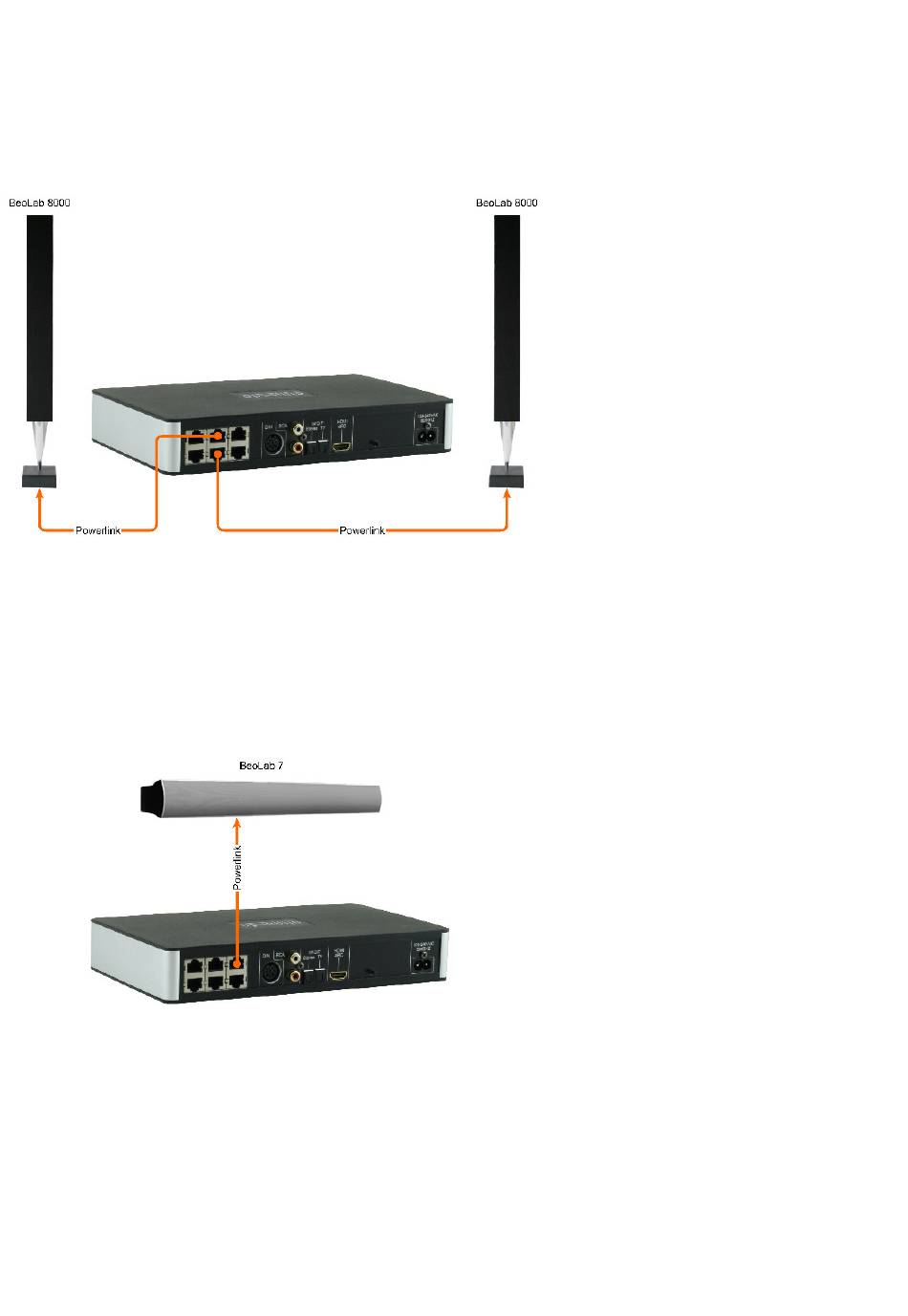

In this figure you can see the
connection of BeoLab 8000 as
surround speakers.
The right upper
specifically designed for connecting
center speakers only. The center tone
is output on both Powerlink audio
signals from this socket. This makes it
possible to connect not just mono but
also stereo speakers (as shown here
with a BeoLab 7).
(e.g.
BeoLab
RJ45
socket is
5,
9
