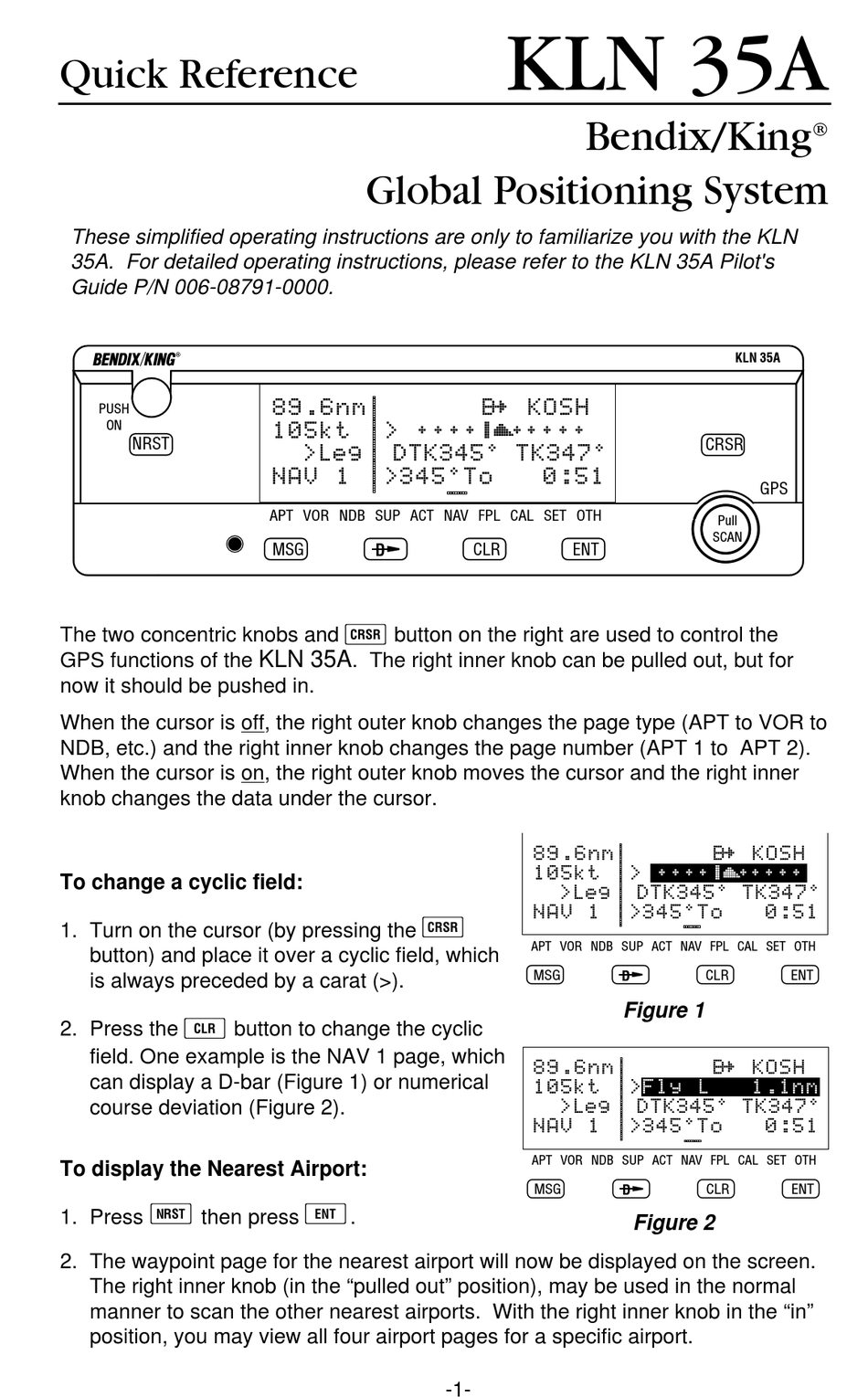

Bendix/King KLN 35A Quick Reference

Quick Reference
These simplified operating instructions are only to familiarize you with the KLN
35A. For detailed operating instructions, please refer to the KLN 35A Pilot's
Guide P/N 006-08791-0000.
B
PUSH
ON
NRST
The two concentric knobs and
GPS functions of the
now it should be pushed in.
When the cursor is off, the right outer knob changes the page type (APT to VOR to
NDB, etc.) and the right inner knob changes the page number (APT 1 to APT 2).
When the cursor is on, the right outer knob moves the cursor and the right inner
knob changes the data under the cursor.
To change a cyclic field:
1. Turn on the cursor (by pressing the
button) and place it over a cyclic field, which
is always preceded by a carat (>).
E
2. Press the
field. One example is the NAV 1 page, which
can display a D-bar (Figure 1) or numerical
course deviation (Figure 2).
To display the Nearest Airport:
G
1. Press then press
2. The waypoint page for the nearest airport will now be displayed on the screen.
The right inner knob (in the "pulled out" position), may be used in the normal
manner to scan the other nearest airports. With the right inner knob in the "in"
position, you may view all four airport pages for a specific airport.
Global Positioning System
89.6nm
105kt > ««««∫∏π««««
>Leg DTK345° TK347°
NAV 1 >345°To
APT VOR NDB SUP ACT NAV FPL CAL SET OTH
MSG D
B

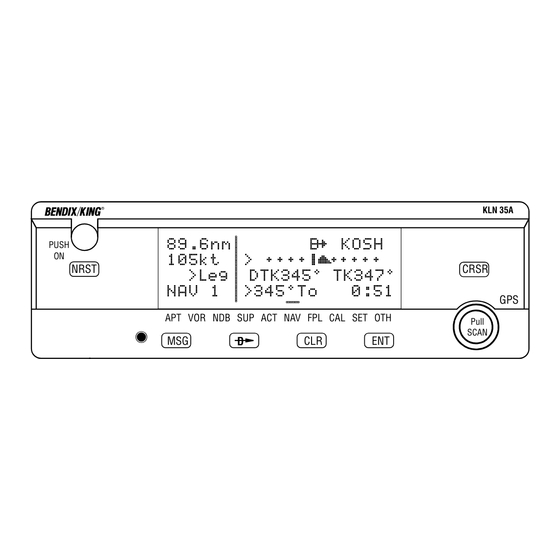

button on the right are used to control the
