Bendix/King CAS 66A TCAS I Pilot's Manual

Hide thumbs Also See for CAS 66A TCAS I:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

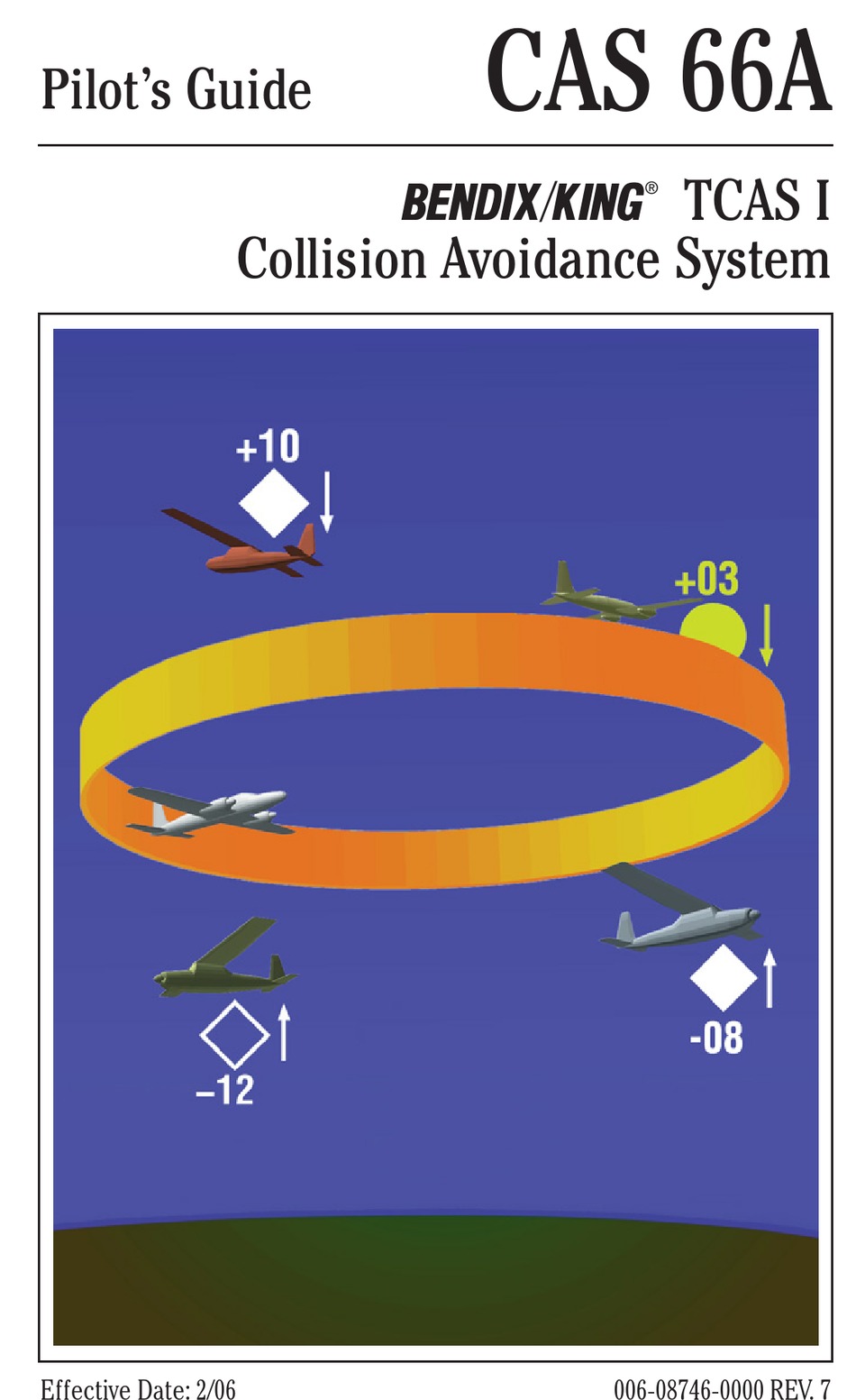

CAS 66A
Pilot's Guide
B TCAS I
Collision Avoidance System
Effective Date: 2/06
006-08746-0000 REV. 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAS 66A TCAS I and is the answer not in the manual?

Questions and answers

Related Manuals for Bendix/King CAS 66A TCAS I

Summary of Contents for Bendix/King CAS 66A TCAS I

  • Page 1 CAS 66A Pilot’s Guide B TCAS I Collision Avoidance System Effective Date: 2/06 006-08746-0000 REV. 7...
  • Page 2 The information contained in this manual is for reference use only. If any information contained herein conflicts with similar information contained in the Airplane Flight Manual Supplement, the information in the Airplane Flight Manual Supplement shall take precedence. WARNING The enclosed technical data is eligible for export under Licanse Designation NLR and is to be used solely by the individual/organization to whom it is addressed.

  • Page 3: Table Of Contents

    CAS 66A Pilot's Guide Table of Contents SYSTEM COMPONENTS ..............1 Traffic Displays: ................1 TCAS Controls ................1 INTRODUCTION ................2 TCAS: ..................3 SECTION I : THEORY OF OPERATION AND SYMBOLOGY ..5 TCAS OPERATION ..............6 TCAS I Sensitivity Level ............6 TCAS I Surveillance Volumes ..........8 Range Tracking Volumes ..........8 Altitude Tracking Volumes ..........8 TCAS I Aural Inhibits ..............8...
  • Page 4 Table of Contents SECTION III: OPERATIONAL PROCEDURES ......39 TCAS OPERATING PROCEDURES ........40 Before Takeoff ..............40 Flight Procedures ..............40 After Landing ................41 Post Flight ...............41 SECTION IV: SYSTEM CONSIDERATIONS ........43 LIMITATIONS AND NOTES ............44 Limitations ................44 Notes ..................44 APPENDIX: TCAS I SELF TEST ..........47 TCAS SELF TEST ..............48 FAILURE CONDITIONS ............49 CP 66A/B Control Panel Test ..........49...

  • Page 5: System Components

    Bottom Directional • Barometric Altitude ANT 67A • Suppression Audio to Speaker • Discretes or Audio Panel Bottom Omni-Directional AURAL SYSTEM L-Band Antenna • Cockpit Speaker • Headphones CAS 66A TCAS I Block Diagram 006-08746-0000 Rev 7 Effective Date 2/06...

  • Page 6: Introduction

    Introduction INTRODUCTION TCAS (an acronym formed from the phrase Traffic Alert and Collision Avoidance System) is an airborne system used for detecting and tracking aircraft near your own aircraft. TCAS I includes a TCAS processor, antennas, a traffic display and a means to control the sys- tem.

  • Page 7: Tcas

    CAS 66A Pilot's Guide Introduction TCAS: • Is compatible with the ATC System • Determines if a threat exists from ATCRBS or Mode S Transponder equipped aircraft • Provides display and audio announcement to the crew - Position information displayed on a traffic display - Synthesized voice •...
  • Page 8 Theory of Operation and Symbology T T H H I I S S P P A A G G E E I I N N T T E E N N T T I I O O N N A A L L L L Y Y L L E E F F T T B B L L A A N N K K Effective Date 5/93 006-08746-0000 Rev 0...

  • Page 9: Section I : Theory Of Operation And Symbology

    CAS 66A Pilot's Guide Theory of Operation and Symbology SECTION I : THEORY OF OPERATION AND SYMBOLOGY RNG 10 TA ONLY SECTION I DESCRIBES TCAS I THEORY OF OPERATION AND SYMBOLOGY. 006-08746-0000 Rev 0 Effective Date 5/93...

  • Page 10: Tcas Operation

    Theory of Operation and Symbology TCAS OPERATION TCAS monitors the airspace surrounding your aircraft by interrogating the transponder of the Intruding aircraft. The interrogation reply enables TCAS to compute the following information about the Intruder: 1. Range between your aircraft and the Intruder. 2.
  • Page 11 CAS 66A Pilot's Guide Theory of Operation and Symbology SL B In sensitivity level B, TCAS I performs surveillance and tracking functions and provides traffic advisories. The conditions for sen- sitivity level B are based on own aircraft in-flight and: (1) If radio altitude source is installed and own aircraft altitude is above 2,000 feet AGL (radio altitude).

  • Page 12: Tcas I Surveillance Volumes

    Theory of Operation and Symbology TCAS I SURVEILLANCE VOLUMES Surveillance volume is that volume of airspace within which other air- craft with Mode S or ATCRBS transponders are tracked by own air- craft’s TCAS. (1) Range Tracking Volumes The shape and size of the range tracking volume is dependent on whether Mode S or ATCRBS transponders are being interrogated, whether tracking is occurring on a directional or OMNI antenna, and attenuation levels applied to the transmitted pulses from the TCAS...

  • Page 13: Tcas Traffic Display Symbols

    CAS 66A Pilot's Guide Theory of Operation and Symbology TCAS TRAFFIC DISPLAY SYMBOLS TCAS I will display three different traffic symbols on the traffic display. The type of symbol selected by TCAS is based on the Intruder’s loca- tion and closing rate. Relative bearing and distance to the Intruder are shown by the position of the Intruder symbol in relation to the own-air- craft symbol.

  • Page 14: Proximity Intruder Traffic

    Theory of Operation and Symbology PROXIMITY INTRUDER TRAFFIC A filled white diamond indicates that the Intruding air- craft is within ±1200 feet and within 5 nm range, but is still not considered a threat. This Intruder is now 1000 feet above your aircraft and descending.

  • Page 15: Off Scale Traffic

    CAS 66A Pilot's Guide Theory of Operation and Symbology OFF SCALE TRAFFIC Threat aircraft (TA’s) that are beyond the selected display range are indicated by one half of the traffic symbol at the edge of the screen. The position of the half-symbol represents the bearing of the Intruder. RNG 5 TA ONLY TA traffic on 5 mile range.

  • Page 16: Indications And Voice Announcements

    Theory of Operation and Symbology INDICATIONS AND VOICE ANNOUNCEMENTS “Traffic, Traffic” RNG 5 TA ONLY Situation: One Intruder is ahead near the 2:00 o’clock position, between 2 and 3 miles, 400 feet below your altitude and closing. TCAS recognizes the threat and issues a TA.

  • Page 17: Section Ii: Controls And Displays

    CAS 66A Pilot's Guide Controls and Displays SECTION II: CONTROLS AND DISPLAYS TCAS FAIL TCAS ABOVE NORM BELOW T/WX PUSH TO TST PUSH FOR FL SECTION II DESCRIBES CONTROLS AND DISPLAYS OF THE TCAS I EQUIPMENT. 006-08746-0000 Rev 2 Effective Date 6/94...

  • Page 18: Tcas Controls

    Controls and Displays TCAS CONTROLS This section describes the control units for the TCAS equipment. Several types of control units are described. The TCAS functions can be controlled by various control panels or discrete switches. Not all the functions described are required in every installation. TCAS I CONTROL PANEL;...
  • Page 19 CAS 66A Pilot's Guide Controls and Displays The T/Wx (TCAS/Weather) mode but- ABOVE ton is necessary in installations using NORM the weather radar indicator as the T/Wx BELOW traffic display. In these installations, the T/Wx switch is used to select T/Wx between Weather Only, Weather with TCAS...

  • Page 20: Tcas I Control Panel; Cp 66B

    Controls and Displays BELOW Traffic that is between 2700 feet above and 8700 feet below will be displayed. Typically BELOW is used during the descent phase of flight. TCAS I CONTROL PANEL; CP 66B TCAS FAIL TCAS ABOVE NORM BELOW T/WX PUSH TO TST PUSH FOR FL...
  • Page 21 CAS 66A Pilot's Guide Controls and Displays TCAS Range Knob: The TCAS RANGE knob is used to select the range on the traffic display. The range selections are 3, 5, 10, 15, 20, and 40. All ranges are in nautical miles. Note: This feature may not be available in all installa- tions or this feature may be superseded by a range TO TST...

  • Page 22: Transponder/Tcas Controls

    Controls and Displays TRANSPONDER/TCAS CONTROLS KFS 578A TRANSPONDER/ TCAS CONTROL UNIT TRANSPONDER 1-2 4096 CODE AND FLIGHT LEVEL TEST INDICATOR MODE S PHOTOCELL FLIGHT LEVEL TCAS 2200 TCAS MODE ABOVE/NORM/BELOW IDENT BUTTON TCAS RANGE TRANSPONDER MODE XPDR/TCAS IDENT RANGE TCAS RANGE PUSH 4096 SQUAWK CODE SELECT PUSH-ADVANCE CURSOR...
  • Page 23 CAS 66A Pilot's Guide Controls and Displays The outer knob on the left hand dual concentric switch RANGE selects the Traffic Advisory display range in nautical miles. The selected range is annunciated on the traffic display. The range annunciation is the maximum dis- played range to the front of the aircraft.
  • Page 24 Controls and Displays SBY places the Mode S Transponder and TCAS in standby. SBY is annunciated on the display window. Use SBY during ground operations. ON activates the selected transponder without altitude reporting. TCAS is in standby. ON is annunciated in the display window. ALT activates Mode S transponder with altitude reporting, TCAS system in standby.

  • Page 25: Ps 578A Transponder/Tcas Control Unit

    CAS 66A Pilot's Guide Controls and Displays PS 578A TRANSPONDER/TCAS CONTROL UNIT PS 578A Single or Dual Mode S/TCAS Control Unit (Dual Unit shown) PS 578A CONTROLS AND DISPLAYS The PS 578A Control Unit is the master control for both the TCAS sys- tem and transponder.
  • Page 26 Controls and Displays 1/2 selects the active transponder. The other unit is placed in standby. (Pushbutton) IDT initiates IDENT feature for ATC. (Pushbutton) FID allows entry of an alphanumeric flight identification. Selecting the right inner pushbutton will cycle through the eight characters to be changed. Rotating the right inner knob will change the contents of the selected (flashing) character.
  • Page 27 CAS 66A Pilot's Guide Controls and Displays PS 578A FUNCTION SELECTOR, ATC CODE SELECT & MOMEN- TARY TCAS DISPLAY FLIGHT LEVEL SELECT The outer concentric knob on the right selects the Mode S and TCAS mode of operation. Rotating the function knob (CCW) to the TST position initiates a comprehensive self test lasting approximately eight seconds.

  • Page 28: Cd 671C Transponder/Tcas Control Unit

    Controls and Displays The traffic display switches to the FL (flight level) display function when the inner knob is pressed in for more than four seconds. The relative alti- tude tags are replaced with absolute altitude (FL) tags. The traffic display will revert to relative altitude after 15 seconds.
  • Page 29 CAS 66A Pilot's Guide Controls and Displays The Display Window displays the ATC code selection, whether transponder #1 or #2 is active, transponder mode, transponder ident, own aircraft flight level (in TEST), TCAS mode, TCAS range and TCAS above, below or normal verti- cal display limit selected.
  • Page 30 Controls and Displays The inner concentric knob may include an optional ON/OFF switch; clockwise is ON. When the inner knob is pushed, the Traffic Advisory altitude (Above/Norm/Below) display limits are sequentially selected. There are three display levels to choose from. ABOVE;...
  • Page 31 CAS 66A Pilot's Guide Controls and Displays ALT Activates Mode S transponder with altitude reporting, TCAS sys- tem in standby. VFR Selecting VFR for more than 3 seconds changes the ATC code to the pre-programmed VFR code (typically 1200). VFR is annunciat- ed in the display window for the 3 seconds before switching to the pro- grammed code.

  • Page 32: Ps 550 Transponder/Tcas Control Unit

    Controls and Displays PS 550 TRANSPONDER/ TCAS CONTROL UNIT PS 550 Single or Dual Mode S/TCAS Control Unit (Dual Unit shown) PS 550 CONTROLS AND DISPLAYS The PS 550 Control Unit is the master control for both the TCAS sys- tem and transponder.
  • Page 33 CAS 66A Pilot's Guide Controls and Displays The 1/2 push button selects No. 1 or No. 2 as the active transponder. The other unit is placed in standby. The Display Window shows which transponder is the active source. The TST push button initiates a comprehensive self-test lasting approximately eight seconds.
  • Page 34 Controls and Displays The ID push button in the center of the Code Selector knob initiates the IDENT feature for ATC. The IDENT function is used at the request of an Air Traffic Controller, and holds the Ident reply for 18 ± 1 sec- onds.
  • Page 35 CAS 66A Pilot's Guide Controls and Displays The traffic display may have another range select source. The select- ed TCAS range is always annunciated on the traffic display. The range annunciated is the maximum displayed range to the front of the aircraft. The range to the rear is either full annunciated range or 1/2 the annun- ciated range, depending on the display.

  • Page 36: Traffic Displays

    Controls and Displays TRAFFIC DISPLAYS TCAS traffic can be displayed on a variety of instruments or indicators. The following describes the various TCAS traffic displays. The (IVA 81A/C/D) TA/VSI displays combine the vertical speed instru- ment with the Traffic display functions on an LCD screen.

  • Page 37: Ta/Vsi & Tid Controls

    CAS 66A Pilot's Guide Controls and Displays ciated. When appropriate Flight Level data is available, current aircraft Flight Level is displayed. The lower left-hand corner annunciates the TCAS mode and TCAS flag condition. See the list of Mode & Failure Annunciations below. Two blocks are reserved in the lower center of the screen to display No Bearing TA traffic.

  • Page 38: Mode & Failure Annunciations

    Controls and Displays MODE & FAILURE ANNUNCIATIONS The following annunciations can be seen in the lower left-hand corner of the TA/VSI or TID 66A/D. (IVA 81A/C/D) (TID 66A/D) Annunciation Color Color Indicates TCAS STBY (Blue) (Blue) NO TCAS TEST (Yellow) (Yellow) TEST Mode TA ONLY...

  • Page 39: Weather Only Mode

    CAS 66A Pilot's Guide Controls and Displays WEATHER ONLY MODE In this mode of operation, only weather radar informa- tion is displayed until a Traffic Advisory is issued by the TCAS Processor. The range is controlled by the weather radar range control in this mode of operation.

  • Page 40: Tcas Only Mode

    Controls and Displays TCAS ONLY MODE In this mode the screen’s RNG 5 origin point is 1/3 up from the bottom of the screen. Only TCAS information is displayed. This mode is maintained unless another mode is manually selected. The range displayed is that selected on the TCAS con- trol panel.

  • Page 41: Tcas Fault Annunciations

    CAS 66A Pilot's Guide Controls and Displays TCAS Fault Annunciations: Weather Only and Weather with TCAS Mode. In the event of a failure, all TCAS information will be removed from the display. One of the following failure messages will be annunciated in the upper left corner of the screen.
  • Page 42 Controls and Displays T T H H I I S S P P A A G G E E I I N N T T E E N N T T I I O O N N A A L L L L Y Y L L E E F F T T B B L L A A N N K K Effective Date 6/94 006-08746-0000 Rev 2...

  • Page 43: Section Iii: Operational Procedures

    CAS 66A Pilot's Guide Operational Procedures SECTION III: OPERATIONAL PROCEDURES TEST TCAS I Traffic Display Test Page SECTION III DESCRIBES OPERATION OF THE TCAS I SYSTEM. 006-08746-0000 Rev 2 Effective Date 6/94...

  • Page 44: Tcas Operating Procedures

    Operational Procedures TCAS OPERATING PROCEDURES TCAS warns the operator with an aural and visual Traffic Advisory whenever TCAS detects another transponder equipped aircraft and predicts the Intruder to be a threat. The pilot should not initiate eva- sive maneuvers using information from the traffic display only or on a traffic advisory (TA) only, without visually sighting the traffic.

  • Page 45: After Landing

    CAS 66A Pilot's Guide Operational Procedures Use of the TCAS self-test function in-flight will inhibit TCAS operation for up to eight seconds. During initial departure, select the 10 nm TCAS range or lower because the traffic density is the greatest near the airport. During the climb phase of flight, select the 10 nm range or greater and continue to use the Above display volume mode, if available.
  • Page 46 Operational Procedures T T H H I I S S P P A A G G E E I I N N T T E E N N T T I I O O N N A A L L L L Y Y L L E E F F T T B B L L A A N N K K Effective Date 6/94 006-08746-0000 Rev 2...

  • Page 47: Section Iv: System Considerations

    CAS 66A Pilot's Guide System Considerations SECTION IV: SYSTEM CONSIDERATIONS TID 66A/D Traffic Display SECTION IV EXPLAINS CONSIDERATIONS OF THE TCAS I SYSTEM; WARNINGS AND LIMITATION, AND NOTES. 006-08746-0000 Rev 7 Effective Date 2/06...

  • Page 48: Limitations And Notes

    System Considerations LIMITATIONS AND NOTES LIMITATIONS Refer to the Airplane Flight Manual . NOTES The capability of TCAS is dependent upon the type of transponder in the Intruding aircraft: The Intruding aircraft must be equipped with a properly operating transponder for normal TCAS operation. TCAS is unable to detect any aircraft without an operating transponder.
  • Page 49 CAS 66A Pilot's Guide System Considerations NOTES (CON'T) It is possible to see an aircraft flying the same course and direc- tion as your own aircraft, yet TCAS may not consider it a threat. TCAS calculates the closure rate of the Intruder, and derives the time to the Closest Point of Approach (CPA).
  • Page 50 System Considerations T T H H I I S S P P A A G G E E I I N N T T E E N N T T I I O O N N A A L L L L Y Y L L E E F F T T B B L L A A N N K K Effective Date 6/94 006-08746-0000 Rev 2...

  • Page 51: Appendix: Tcas I Self Test

    CAS 66A Pilot's Guide Appendix APPENDIX: TCAS I SELF TEST WX ON TEST THE APPENDIX INCLUDES A DESCRIPTION OF TCAS I SELF TEST. 006-08746-0000 Rev 2 Effective Date 6/94...

  • Page 52: Tcas Self Test

    Appendix TCAS SELF TEST The TCAS self test determines the operational status of the entire TCAS system. Select self test on the TCAS control panel. Once begun, self test continues automatically for approximately eight seconds. During self test, normal TCAS operation is inhibited. For optimum display dur- ing self test, selection of the 5 nm range is recommended.

  • Page 53: Failure Conditions

    CAS 66A Pilot's Guide Appendix At the conclusion of a successful Self Test, a synthesized voice announces: “TCAS SYSTEM TEST OK” FAILURE CONDITIONS: Should a failure be detected during self test, the audio message says: “TCAS SYSTEM TEST FAIL” A “TCAS” flag will be annunciated on the traffic display. A self test fail- ure may indicate that the auxiliary equipment required for TCAS is not operational.

  • Page 54: Glossary Of Tcas Terms

    Appendix GLOSSARY OF TCAS TERMS ABBREVIATIONS AND DEFINITIONS AFM or AFMS Airplane Flight Manual or Airplane Flight Manual Supplement. AGL Above Ground Level. Height above the ground. ATC Air Traffic Control. A federally operated ground based system that manages aircraft traffic flow. ATCRBS ATC Radar Beacon System.
  • Page 55 CAS 66A Pilot's Guide Appendix Mode S Transponder Transponder that replies to ATC interroga- tions giving an ATCRBS identification code, encoded altitude and other data fields including discrete aircraft address and airspeed capa- bility. Non-Altitude Reporting traffic. Non-Threat Intruder An aircraft that has entered the TCAS surveil- lance volume at a distance greater than 5 miles or altitude greater than 1200 feet above or below your own aircraft.
  • Page 56 Appendix TA Traffic Advisory. An audio and visual indication that another air- craft is a potential threat. TA/VSI Traffic Advisory/Vertical Speed Indicator. A flight instrument that gives standard VSI indication and plan position of TCAS traffic. Threat An aircraft that has satisfied TCAS threat detection logic and thus requiring a Traffic Advisory.
  • Page 57 Honeywell International Inc. One Technology Center 23500 West 105th Street Olathe, Kansas 66061 FAX 913-791-1302 Telephone: (913) 712-0400 Copyright ©1994-1999, 2004, 2005 Honeywell International Inc. All rights reserved. 006-08746-0000 Rev 7 2/06...
