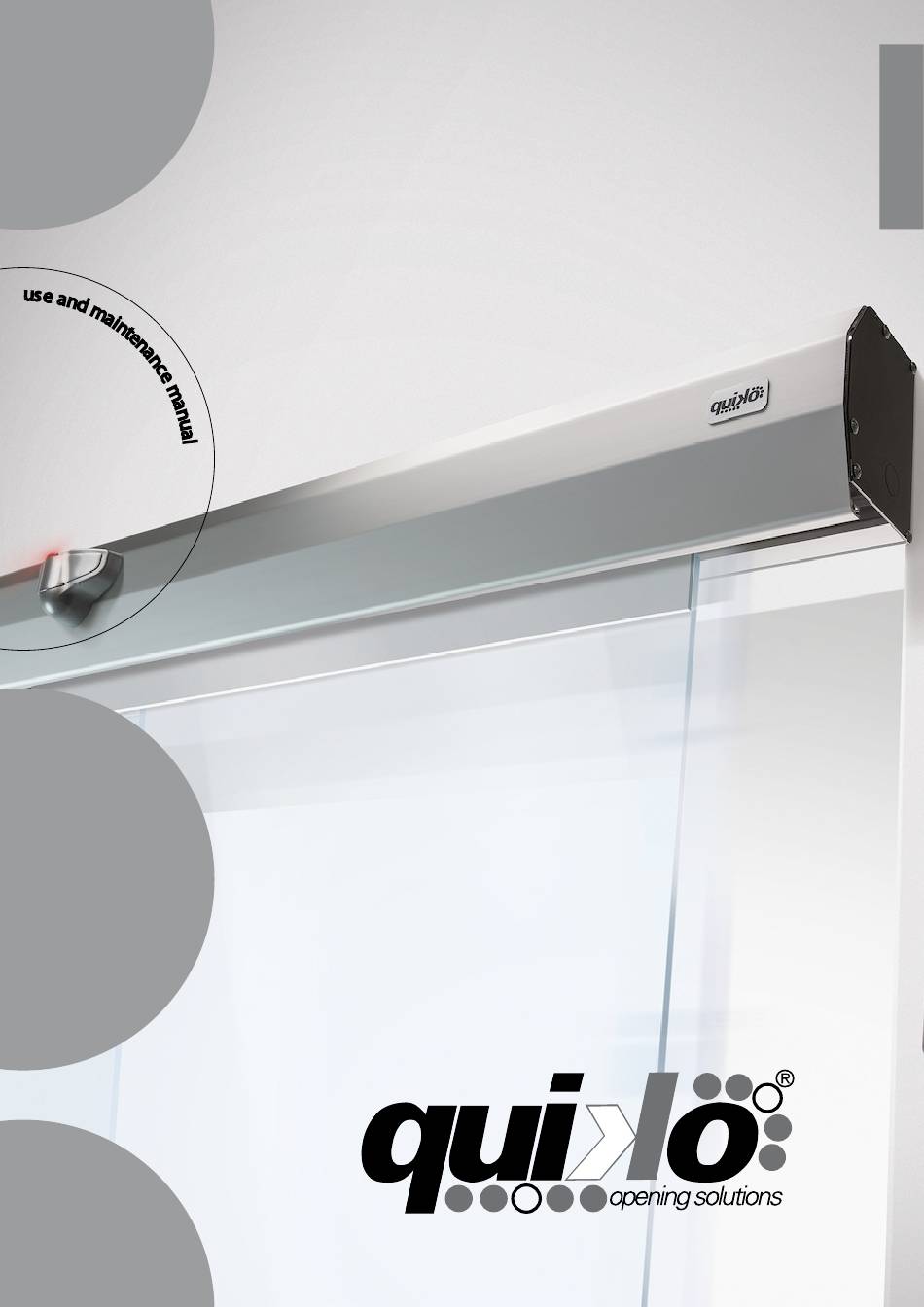

- Page 1 WINNY LIGHT NEW MODEL AUTOMATION FOR SLIDING DOORS V03/2016...
-
Page 2: Technical Data
GENERAL PROSPECTUS..................TECHNICAL DATA....................DIMENSIONS ......................ACCESSORIES HOUSING..................INSTALLATION......................4>7 ELECTRIC LOCK WITH MANUAL RELEASE............SUPPORT FOR GLASS WINGS................10>15 CONTROLL UNIT..................... CONTROL UNIT AND SELECTOR SCHEMES............GENERAL PROSPECTUS The sliding door automations allow a fluid and silent movement. The doors will arrest to the slightest obstacle and in the event of a power outage the door could be manual released. - Page 3 DIMENSIONS 107 mm ANTIPANIC SYSTEM 45 mm COMPONENTS HOUSING 1. Side caps Motor support with pinion 2. Support driven pulley Motor optical encoder 10. Transformer 3. Electric lock with manual release 11. Input Power supply terminal 4. Belt Tensioner 12. Mechanical limit switch 5.
-
Page 4: Considerations For Installation
CONSIDERATIONS FOR INSTALLATION Ÿ The installation and testing operations must be performed solely by qualified personnel in order to guarantee the proper and safe operation of the sliding door. Ÿ The company declines any responsibility for damage caused by incorrect installations due to incompetence and/or negligence. - Page 5 LEAVES HOOKING Place the leaf under the carriages of the coverall and fast with 8/10 mm screws( not supplied), to a distance from the ends of the leaf of 100/150 mm. Washer Washer Screw Screw Door LEAVES HEIGHT ADJUSTMENT To adjust the height of the leaves loosen the two nuts A and through the screw B make the adjustments : screwing the leaf goes up, unscrewing the leaf goes down.
- Page 6 ANTI-DERAILMENT SETTINGS Adjust the pins C to avoid the derailment of the trolleys. Loosen the screw D and adjust the pins at a distance of about 1mm from the bottom of the profile of the coverall. Coverall profile Screw D Screw D Pin C Leaf...
-
Page 7: Limit Switch Adjustment
LIMIT SWITCH ADJUSTMENT Adjust the limit switches to determine the stroke of the door. Ÿ Loosen the screws A and adjust to the desired stroke. Ÿ Tighten the two screws Screws A COVER REMOVAL To remove the front cover, unscrew the two screws B at the ends of the box and lift Screw... - Page 8 ELECTRO LOCK WITH MANUAL SYSTEM (optional) The electric lock is the safest way to lock the door. In case the backup battery is not present or in the event of failure of the latter, the system is equipped with external manual release.
- Page 9 SUPPORT FOR 10mm thick GLASS WINGS (Optional) Apply silicone on the aluminum support. Support Silicone Insert the glass wing Glass wing (thickness 10mm) Support Screws Block the support with the screws and wait at least 48 hours for drying...
- Page 10 MANUAL FOR SLIDING DOOR CONTROL UNIT General description: Ÿ Power supply: 24 VAC - 6A Ÿ Back-up battery: 12V 2A Pb with integrated charger and functional test every 12 hours Ÿ Output: 28 VDC +/- 15% with 500 mA fuse Ÿ...
- Page 11 RESET TEST RESE T TE ST RESE T TE ST RESE T TE ST RESE T TE ST INVIO I NVIO I NVIO I NVIO I NVIO Figure 1. List of programming parameters N Pr. RANGE UNITS DESCRIPTION 2 – 18 Amp.
- Page 12 (Index no. 17) - 1 MENU - configuration FUNCTION 10 11 12 13 14 15 close using battery power in case of power failure open using battery power in case of power failure when closed/switched off, open in case of power failure when closed/switched off, close in case of power failure Electromagnetic lock closed without...
- Page 13 Description of user-programmable parameters Index Motor power consumption on signal strength above which the control unit registers opening blockage when opening Motor power consumption on signal strength above which the control unit registers closing blockage when closing system initial response time when opening, Acceleration when opening 1 = minimum, 5 = maximum Acceleration when closing...
- Page 14 Display functions on the unit: Ÿ With the door closed at rest position, the screen on the right shows a flashing horizontal line Ÿ When door is moving the screen shows the power distributed by the control unit Ÿ In case of alerts or anomalous functioning the screen will display a message from the following table Ÿ...
- Page 15 Security code (PIN) Press the INVIO button once and the message 'IP’ (Insert Pin) will appear on the screen, and after a moment the letter ‘A'-- the first digit of the 4-digit code--will appear, and a moment later a flashing number '0' will be displayed. At this point, use the 'UP' and 'DOWN' keys to enter the first digit of the PIN code.
- Page 16 View number of cycles carried out Introduction. The meter presents the number of cycles in multiples of 1000, so the number displayed must be multiplied by this factor. This data is recorded in permanent memory, but always in multiples of 1000 cycles. The number of cycles can only be read when the system is in stand-by, that is, when the screen displays a flashing horizontal line.
- Page 17 Photocell 13. + 24V 14. - 0V 15. INTERNAL RADAR 16. COMMON 17. EXTERNAL RADAR 18. COMMON Photocells 19. photocell A Amplifier AMPLIFIER CONTACT 20. photocell B AMPLIFIER CONTACT 24V + 21. COMMON 22. STOP MOTOR N.C N.C 13 14 15 16 17 18 19 20 21 22 + 24V SELECTOR CLOSED ENTRY...
-
Page 18: Safety Precautions
SAFETY PRECAUTIONS These warnings are an essential, integral part of the product and must be given to the user. They provide important indications on the installation, use and maintenance and must be read carefully. This form must be preserved and passed on to subsequent users of the system. The incorrect installation or improper use of the product may be dangerous. - Page 19 Via Seccalegno, 19 36040 Sossano (VI) Italia hereby declares, under his liability, that the products: WINNY LIGHT AUTOMATIC SLIDING DOORS are in compliance with the essential safety requirements of the regulations: Electromagnetic Compatibility Directive ......2004/108/EC Low Voltage Directive ............2006/95/EC Machinery Directive ............2006/42/EC and their amendments and modifications, and with the regulations set forth by the National Legislative Body of the country in which the machinery is destined for use.
- Page 20 QUIKO ITALY Via Seccalegno, 19 36040 Sossano (VI) - Italy Tel. +39 0444 785513 Fax +39 0444 782371 info@quiko.biz www.quikoitaly.com...
