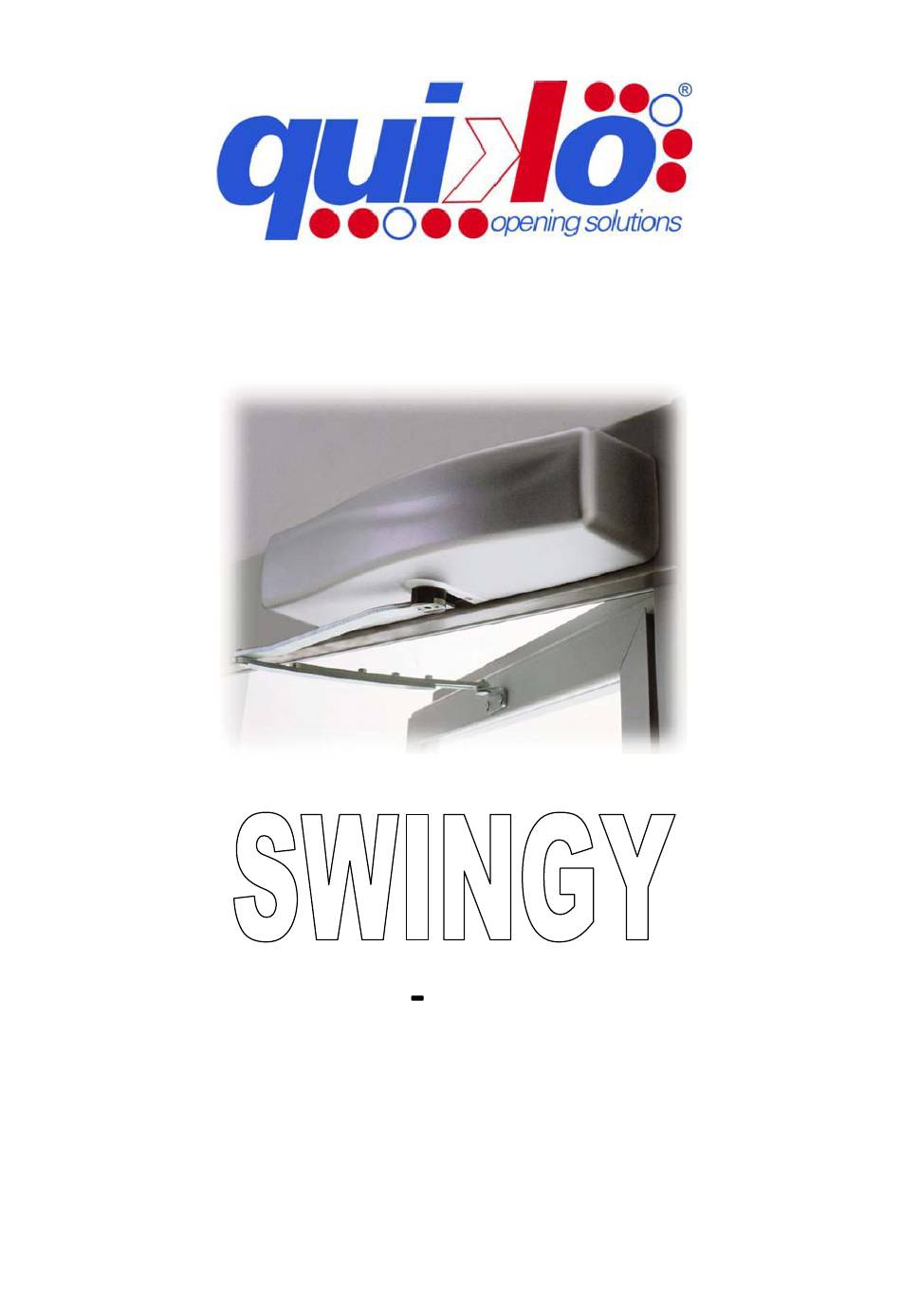

- Page 1 QK SW80 USER MANUAL V01_2011...
-
Page 2: Table Of Contents
QK SW80 Installation Instruction Index Automatism installation preparation............pag. 4 Automatism description ................pag. 4 Sizes and dimensions ..................pag. Dimensions of the xing holes and cables opening ........pag. Automatism assembly ....................pag. Adjustment of the stop ....................pag. Battery connections .................... - Page 3 Installation Instruction Machine directive Thank you for choosing this product. For best automatism performance, Quiko recommends you carefully read and The installer who motorised a door becomes the automatic follow the installation and use instructions found in this man- door machine manufacturer according to directive 2006/42/EC ual.
-
Page 4: Automatism Installation Preparation
QK SW80 Installation Instruction Technical specifications Power supply 230V ac 50 Hz Nominal power 60 W Nominal motor torque 35 Nm External device power 12Vdc – 2,5W Emergency battery 12 V 1.3 Ah Max opening angle 100° Wing maximum weight 80 Kg Wing dimensions 700÷1200 mm... -
Page 5: Sizes And Dimensions
QK SW80 Sizes and dimension Fig. 3 Dimension of the fixing holes and cables opening SWINGY standard Fig. 4 Use the appropriate drilling template included with the product to make easier the installation. In case of double SWINGY provide to the predisposition of the connection (cables passing) between the two operators... -
Page 6: Automatism Assembly
QK SW80 Installation Instruction Automatism assembly WARNING : Before proceeding with the installation, remove the 2 cardboard components positioned underneath the motor body. Positioning dimensions (rigid pull arm - QK-SW80PULL) The rigid pull arm is used when the automatism is installed on the swing side of the door. WARNING For a correct positioning, always use the main axis of the wing hinges and the operation axis of the gear- motor as a reference, as shown in Fig.5. - Page 7 QK SW80 Positioning dimensions (articulated push arm - QK-SW80PUSH) The articulated push arm is used when the automatism is installed on the approach side of the door (the side opposite the swing side). WARNING : For a correct positioning, always use the main axis of the wing hinges and the operation axis of the gear- motor as a reference, as shown in Fig.7.
- Page 8 QK SW80 ( QK-SW80PULL) Installation of the guide and rigid pull arm Insert the bracket of the arm (Fig.10 Part A) in the appropriate seat on the gearmotor and fix it using the two countersunk-head screws provided (Fig.10 Part B). Access the fastening compartment of the guide (Fig.11 Part A) by removing the cover (Fig.11 Part B).
- Page 9 QK SW80 Installation Instruction Assembly of the articulated push arm (QK-SW80PUSH) WARNING : The articulated arm is NOT symmetric. Depending on the opening direction (right-hand or left-hand), posi- tion the brackets of the arm and the bushings as indicated in the following figures. Wings Wings Right Opening...
-
Page 10: Adjustment Of The Stop
QK SW80 Installation Instruction Adjustment of the Stop Open the wing to the desired opening limit, then position the rubberized stop on the floor and tighten the screw on the stop. WARNING : The max. allowed opening angle is 100°. Battery connections Connect the battery wiring to the proper clamp on the electronic board... -
Page 11: Number Wing Selection
QK SW80 Installation Instruction Number Wing Selection S3 ON S3 OFF (DEFAULT) Double-wing operation. Single-wing operation. This option should be selec- ted only in the case of two SWIN- automatisms connected together for the opening of a two- wing entrance. Single wing Multislave selection S1 OFF S1 ON... -
Page 12: First Input Mode Selection
QK SW80 First Input Mode Selection SWINGY can be connected to a closing device such as an electronic key, key selector, transponder, etc. Using the dip switch S5, the signal can be controlled in bistable or monostable mode with an activation time of about 500msec. Normal Automatism Operation... -
Page 13: Type Of Arm Selection
QK SW80 Type of arm selection In order to optimize the operation of the automatism, it is necessary to set the jumper according to the following diagram: J13 OFF (DEFAULT) J13 ON ARTICULATED PUSH ARM RIGID PULL ARM (Wing Left Opening or (Wing Left Opening or Wing Right Opening ) Wing Right Opening) - Page 14 QK SW80 External peripheral connector Fig. 20 SIGNAL TYPE* DESCRIPTION FUNCTION Common electrical signal. SAFE CLOSE Signal for the connection of an external If the door is closing and the contact opens, the unit sends and immedi- photocell or safety control device for ate motion inversion command.
-
Page 15: Led Functions
QK SW80 LED Functions ON indicates mains ON indicates encoder signal voltage present presence Fig. 22 ON indicates 12V external peripheral power supply External peripheral signal presence led. Diagnostics Led (see Error Message Table) Jumpers Set properly the jumper J13, Jumper OFF (Default) look at the arm typology... -
Page 16: Start Up - Operating Logic
QK SW80 Start Up - Operating logic Operations Description If no optional operation lock device is installed, make sure the KEY input is short circuited with the COM input. Otherwise the equipment cannot be started. WARNING If no safe close device is installed, make sure the SAFE CLOSE input is short circuited with the COM input. Otherwise the equipment cannot be started. -
Page 17: Error Message Table
QK SW80 Operazioni Descrizione The door encounters an obstacle that stops its motion whilst it is opening. The device should stop the motion of the door for a few seconds and then open it completely at low speed and close it again at normal speed. -
Page 18: Double Swingy Connection And Use
QK SW80 Installation Instruction Double SWINGY connection and use Define the Master door (see Set Dip-Switch paragraph) before performing the connections. It will not be possible to determine the Master or Slave door after completing the wiring. Both devices should be connected to the same power supply branch with no switches or fuses between them. The SAFE CLOSE, KEY, START 1 and START 2 peripherals, if any, should be connected to the Master door. - Page 19 QK SW80...
- Page 20 Quiko Italy Sas Via Seccalegno 19 36040 Sossano (VI) Italy Tel + 39 0444 785513 Fax +39 0444 782371 info@quiko.biz www.quikoitaly.com...
