- Page 1 TACO Marine® Grand Slam Mounts GS-390 / 390XL Outrigger Mount INSTALLATION INSTRUCTION GUIDE ®...
-
Page 2: Kit Contents
KIT CONTENTS Grand Slam 390 mounts or Grand Slam 390XL mounts Required* *not included • Vinyl tubing spacers POWER DRILL WITH 5/16" DRILL BIT • 3/16" ALLEN WRENCH • 1/2" CRESCENT WRENCH 5/16" x 18" x 1" bolts or •... -
Page 3: Installation
GS-390/390XL Thank you for purchasing the TACO Marine Grand Slam 390 or 390XL Outrigger Mount! As a family-owned and operated business since 1959, we take pride in offering the highest-quality, innovative products with excellent customer service. We stand behind our products 100 percent. If you have any questions about this mount or installation, please contact us by visiting tacomarine.com/contactus. - Page 4 INSTALLATION USING A SOLID PLATE Always use high-quality, stainless-steel hardware when mounting the base. Do not attempt to weld the base to any surface. 1. Before drilling your bolt holes, cut out a 3-1/8" diameter center hole. 2. When you are finished drilling your 3-1/8" hole, set the base in the hole being careful not to scratch the anodized finish of the lower components, or to damage the white angle height position indicator.
-
Page 5: How To Use

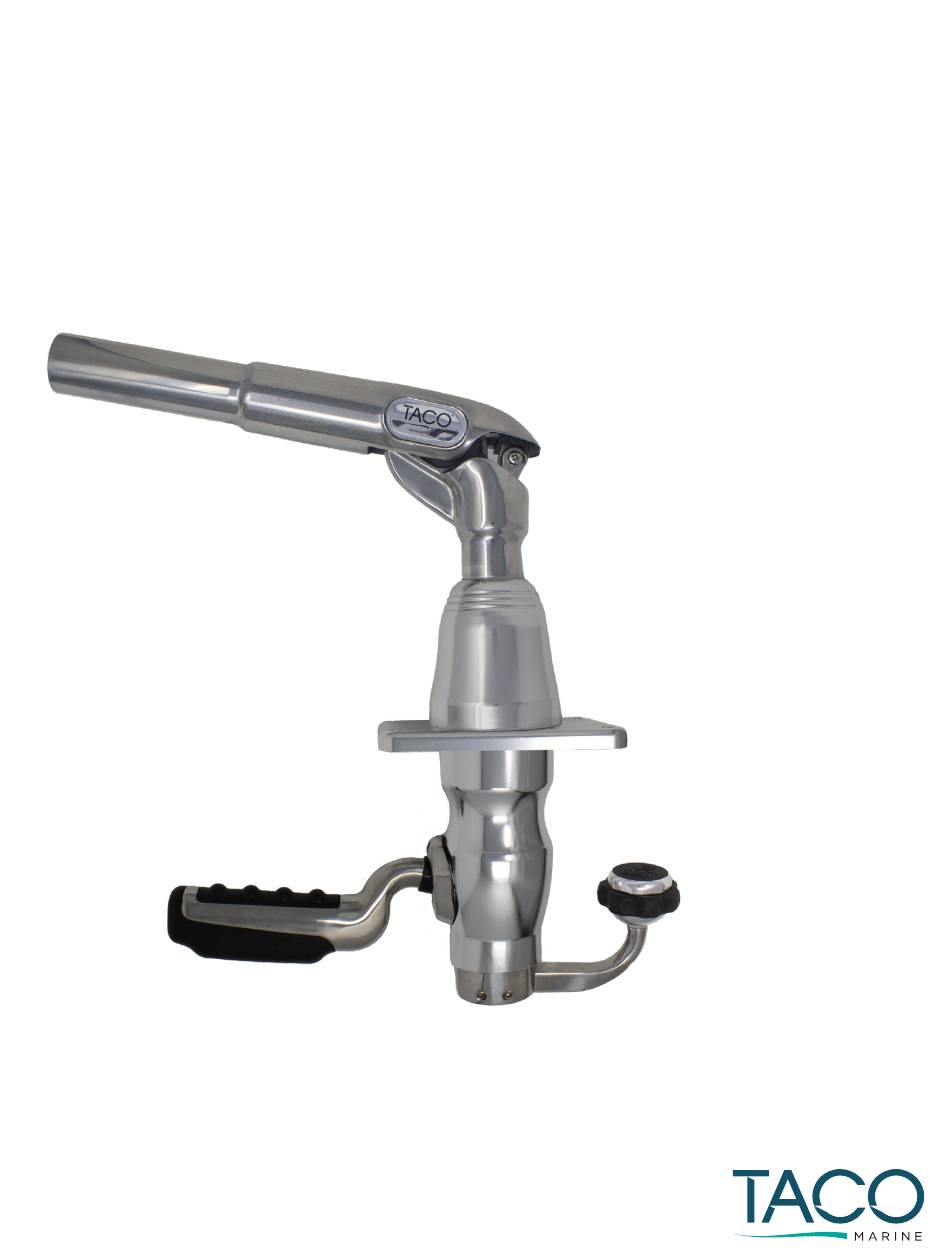

How to use When fishing with the Grand Slam 390 or 390XL, easily raise and lower outrigger poles by turning the crank handle – either clockwise to lift or counterclockwise to lower. For going under bridges, trailering or storage, we recommend lowering the outriggers to ensure they don't get damaged. -
Page 6: Technical Specs
TECHNICAL SPECS Place a few drops of marine-grade oil here to lubricate seals 1. 5/16"-18 X 1" Extrusion Plate Stainless Steel Cap Screw 2. 8mm Stainless Steel Flat Washer 3. 5/16" Nylon Washer Top Mount Orientation Mount orientation on top with locking pin facing outboard NOTE: When not in use, lower and collapse the outrigger poles. -
Page 7: Need Support
We’re here to help. Need Support? Contact Us 1.800.653.8568 support@tacomarine.com tacomarine.com 50 NE 179th ST Miami, FL. 33162 @tacomarine @taco_marine TACO Marine ® G S-390 / 390 XL OUTRIG GER MOU NT / 7... -
Page 8: Drill Template
